In high-precision manufacturing, every second of machine downtime translates directly to lost revenue. When your machine operator cannot calibrate, set up, or manually position the work coordinate system due to a faulty, lagging, or unresponsive manual pulse generator (MPG), your entire production line grinds to a halt. Finding a reliable, durable, and mechanically compatible CNC handwheel is critical to restoring your machine tool’s efficiency.

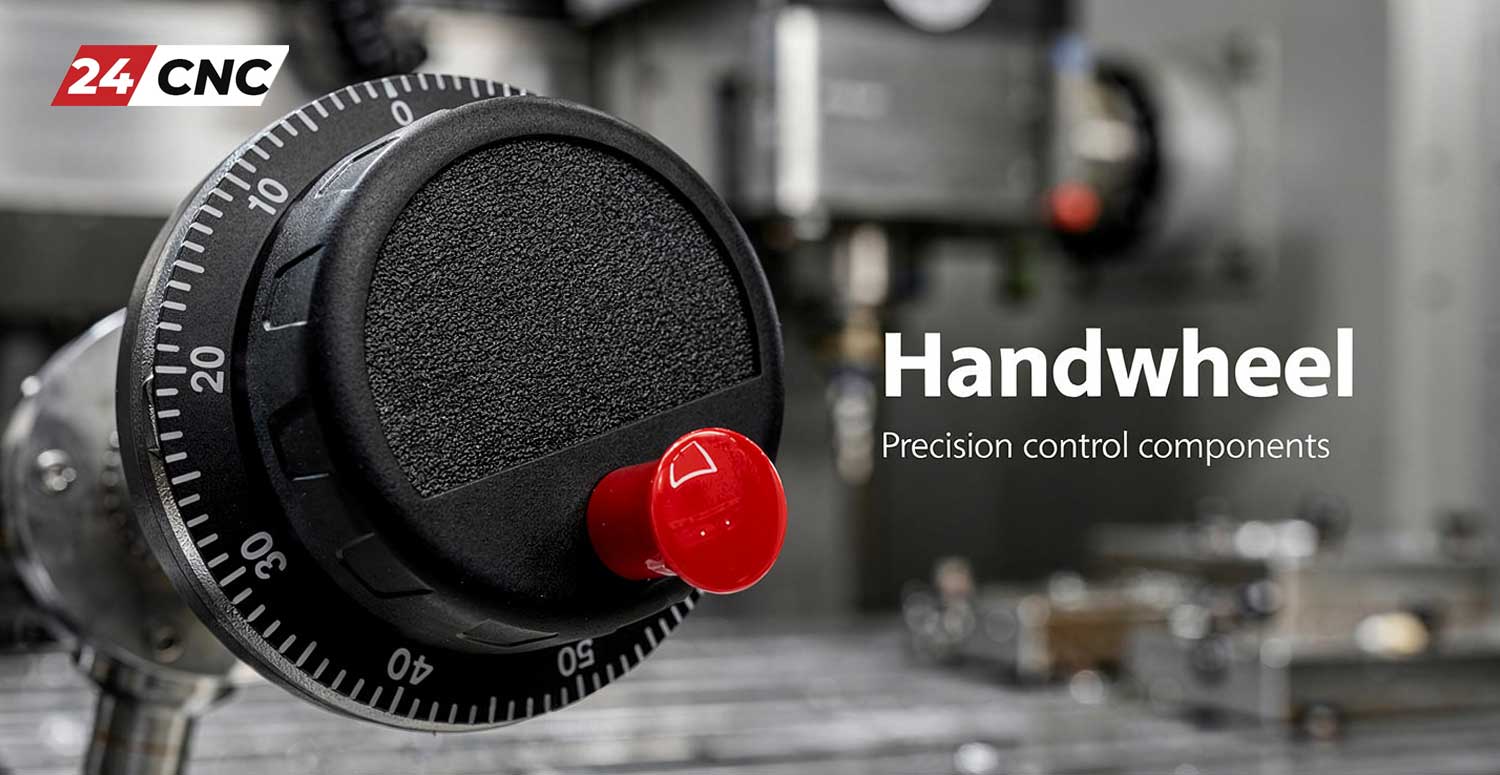

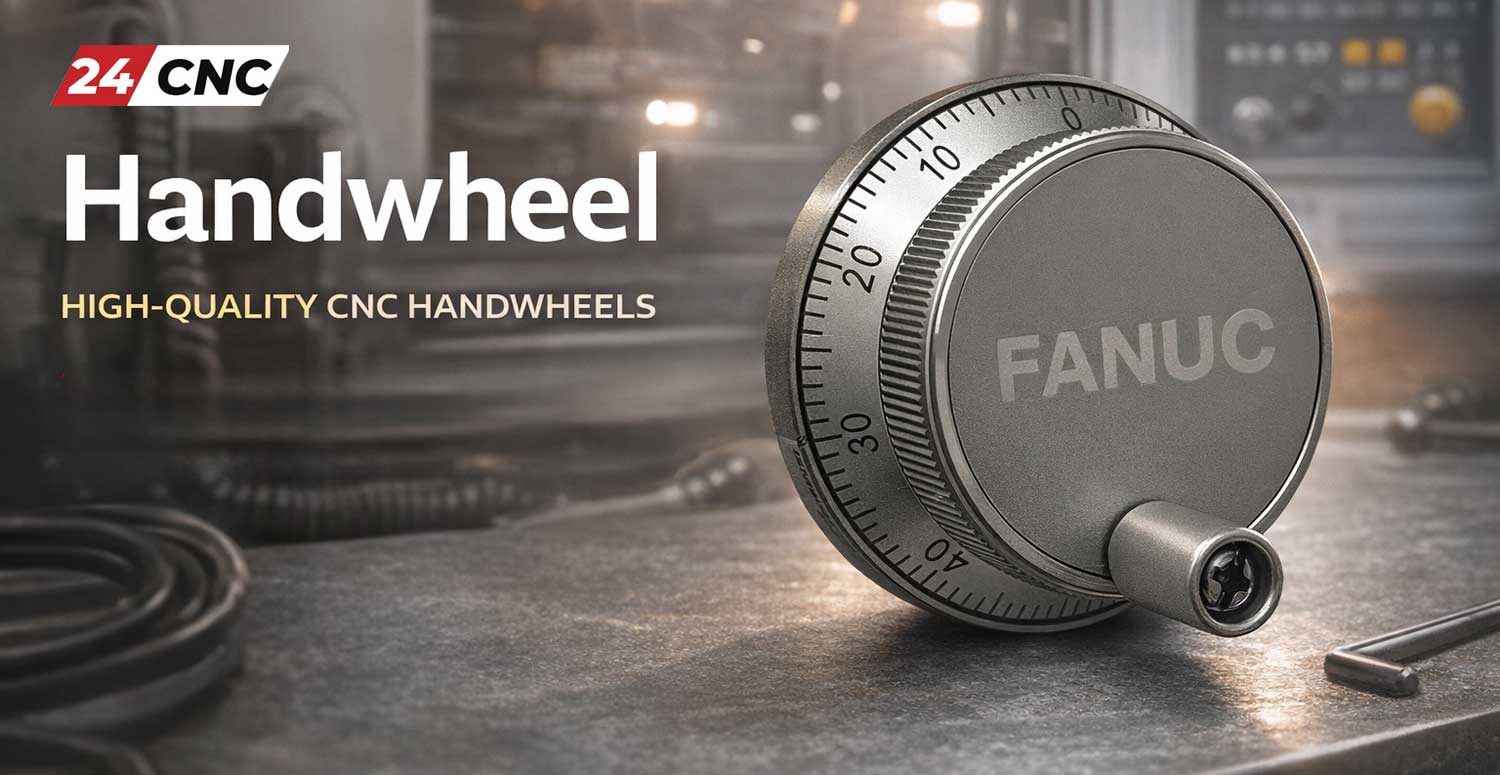

At 24cnc.com, we specialize in high-performance manual control solutions designed to withstand the harsh environments of modern machine shops. Whether you need a standard panel-mounted Manual Pulse Generator (MPG), a robust MPG60 series unit, or an ergonomic, handheld remote handwheel pendant, we offer immediate access to a vast, fully tested inventory. Keep your axes moving smoothly and precisely without overpaying for OEM direct pricing.
Why Procurement Officers & Engineers Choose 24cnc.com
- Rigorous Quality Testing: Every encoder, switch, and handheld unit is electrically and structurally tested by our industrial automation engineers to guarantee flawless performance out of the box.
- Global Shipping & Rapid Dispatch: We understand the cost of downtime. We offer reliable, fast international shipping routes to deliver your critical replacement parts directly to your facility.
- Deep Brand Compatibility: Our stock comprises handwheels engineered to interface directly with major control systems, including Fanuc, Siemens, and Mitsubishi.
- Technical Support Expertise: Don’t guess the specifications. Our technical sales team is ready to cross-reference your part numbers, wire-diagram configurations, and voltage tolerances.
CNC Handwheel Selection Guide: Getting the Right Specs
Replacing an MPG handwheel is not a one-size-fits-all process. Installing an incorrect encoder resolution or mismatching input voltages can result in position errors, system alarms, or even physical damage to the control board. To ensure a seamless installation, evaluate these primary technical criteria before placing your order:
1. Pulses Per Revolution (PPR) & Resolution
This determines the number of electronic steps sent to the control card for every full rotation of the dial. The most common standard is 100 PPR (typically with 100 detents or clicks), which is highly standard for Fanuc and Mitsubishi configurations. Alternatively, certain systems, particularly older Siemens architectures, rely on 25 PPR. Matching the pulse count is critical to ensuring your physical movements match the coordinate shifts on-screen.
2. Voltage Requirements
Ensure your handwheel’s internal optical encoder matches your system’s power rails.
Most modern controllers supply 5V DC to the handwheel encoder. However, several legacy systems, PLC control stations, or retrofitted setups utilize 12V DC or 24V DC power supplies. Running a 5V encoder on a 12V loop will instantly burn out the light-emitting diode or phototransistor within the optical assembly.
3. Electrical Output Phase & Driver Type
How does the handwheel communicate with your CNC controller? High-end, noise-resistant setups rely on differential line drivers (A, /A, B, /B signals) to eliminate electromagnetic interference (EMI) along long cables. Other installations use single-ended phase outputs (A, B) using open-collector or voltage outputs. To avoid electrical incompatibility, always check your existing handwheel’s schematic label or look at the pin assignments.
4. Companion Selectors & Interconnect Cables

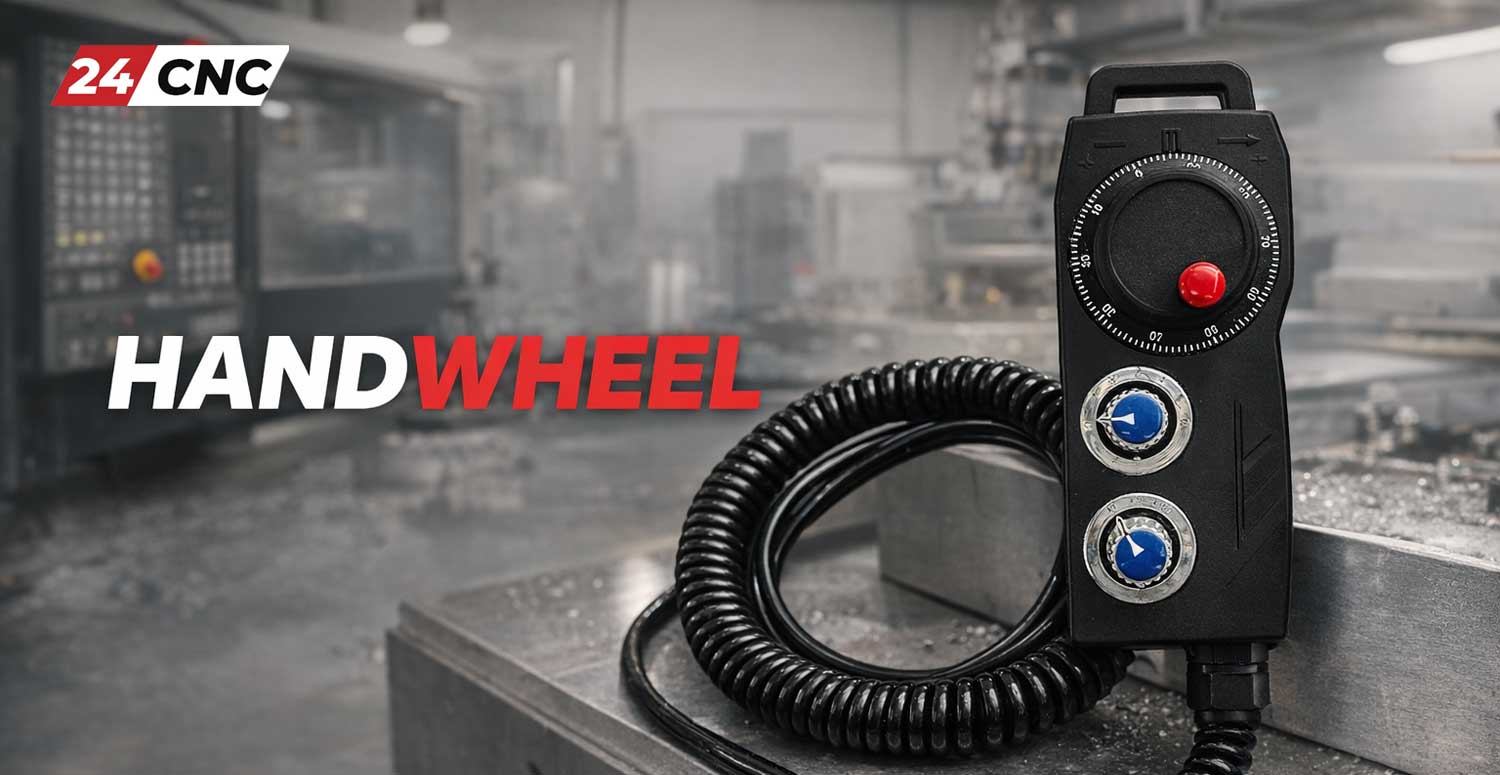

Pendant-style handwheels require dependable multi-position switches to control axis selection (X, Y, Z, 4th, 5th) and resolution multipliers (x1, x10, x100). If your physical dials are wearing out, browse our dedicated handwheel selectors, including 3-mode selectors or 6-mode selectors, to restore complete tactical feedback to your control panel or panel selector layout. Do not neglect connection integrity: pairing your MPG with specialized, high-flex handwheel cables prevents structural shielding breaks, preventing signal drops and position drift during operation. For broader connectivity needs, explore our full inventory of CNC cables.
CNC Handwheel & MPG Specifications Comparison
The table below provides a quick comparative overview of standard manual pulse generator configurations found on popular CNC mills, lathes, and routers.
| Series / Type | Standard Resolution | Input Voltage | Output Signals | Typical System Matches |
|---|---|---|---|---|
| MPG60 Series (Standard Dial) | 100 PPR | 5V DC | Differential (A, /A, B, /B) | Fanuc, Mitsubishi, Yaskawa |
| Siemens-Compatible MPG | 100 PPR / 25 PPR | 5V or 12V DC | Single-ended or Differential | Siemens Sinumerik Systems |
| Toshiba style & Legacy MPG | 100 PPR | 12V or 24V DC | Open Collector / Voltage | Toshiba controls, Older PLCs |
| Portable Handheld Pendants | 100 PPR | 5V DC | Multi-core shielding | Universal (with built-in Axis/Multiplier switches) |
Quick Troubleshooting: Is Your Handwheel Failing?
Before ordering a complete replacement, run these rapid diagnosis steps to confirm the source of failure:
- Skipping Steps or Erratic Jumps: If turning the handwheel one notch forward causes the machine tool’s axis to jump backward or skip counts, the optical wheel inside the rotary encoder is dirty, worn out, or the line driver IC has suffered a static discharge. Replacement is highly recommended.
- Complete Signal Loss on Axis X/Y/Z: If only a specific axis fails to register movement but others function correctly, your manual handwheel pulse generator is likely working. The problem is usually a broken lead in your multi-position selector switch or the connecting cable.
- Intermittent Connection: If the MPG behaves erratically only when moving around the machine enclosure, replace the spring spiral handwheel cable immediately to prevent unexpected axis movements.
Frequently Asked Questions (FAQ)
How do I know if my CNC machine requires a 5V or 12V MPG?
+
The easiest way is to check the part label of your old unit or check your CNC system schematics. Fanuc and Mitsubishi controllers almost exclusively utilize 5V DC for their handwheels. Older Siemens, Heidenhain, or localized PLC systems may feed 12V or 24V. Never connect a standard 5V encoder to a 12V terminal, as it will destroy the internal components.
Are your replacement MPG handwheels covered by warranty?
+
Yes. Every high-performance replacement CNC handwheel and MPG unit sold on 24cnc.com comes backed by our standard warranty. We thoroughly inspect and electrical-bench-test all items before shipping to minimize risk for your procurement team. Contact us for specific warranty periods relative to your model.
What is the difference between 100 PPR and 25 PPR?
+
This indicates Pulses Per Revolution. A 100 PPR handwheel outputs 100 electrical pulses per full 360-degree rotation (yielding 100 mechanical clicks). A 25 PPR handwheel outputs 25 pulses. You must use the pulse resolution specified by your CNC system parameters; otherwise, manual axis scaling will be wildly inaccurate.
Can I replace my panel-mounted MPG with a remote handheld pendant?
+
Yes, but this modification requires mechanical and electrical changes. You will need to route the MPG lines, axis selectors, and multiplier selector lines from your main controller console board through a shielded, flexible pendant cable to your remote housing. We offer a full catalog of compatible switches, cables, and remote pendants to simplify this conversion.
