Unlike absolute encoders that remember their exact position after a power cycle, incremental encoders generate a series of high- and low-frequency pulses (A, B, and Z phases) as the shaft rotates. Because they require a reference point (or home position) upon startup, they are inherently simpler, highly reliable, and incredibly cost-effective for a massive variety of CNC spindle and servo motor applications.
Whether you are dealing with a sudden axis alarm, erratic spindle behavior, or routine preventative maintenance, replacing a failing encoder with a high-quality OEM or certified aftermarket part is critical. At 24cnc.com, we supply an extensive inventory of incremental encoders to ensure your manufacturing line gets back up and running with minimal delay.
The Professional Buyer’s Selection Guide: How to Choose the Right Encoder
Procuring the exact replacement part for your CNC machinery requires careful attention to technical specifications. Installing an incompatible encoder can lead to drive faults, poor machining finishes, or even severe damage to your control system. Here is what engineers and procurement officers must verify before making a purchase:
- Part Number and OEM Brand: The most secure way to ensure compatibility is by matching the manufacturer’s exact part number. We stock genuine components for industry-leading brands, including Fanuc™, Mitsubishi, Siemens, and Tamagawa.
- Resolution (PPR/CPR): Pulses Per Revolution (PPR) dictates the accuracy of the feedback loop. A higher PPR means finer resolution. Your amplifier and inverter drive must be capable of processing the specific frequency generated by the encoder.
- Output Signal Type: Incremental encoders typically use Line Driver (RS422), Push-Pull (HTL), or Open Collector outputs. Matching the electrical interface to your controller is non-negotiable.
- Shaft Configuration: Determine whether your motor requires a solid shaft, a hollow shaft (blind hollow), or a through-hole design. Physical dimensions like outer diameter and shaft diameter (e.g., 6mm, 8mm) must perfectly align with the mechanical coupling.
- Supply Voltage: Verify if your system operates on a 5V DC or a 10-30V DC power supply. Feeding incorrect voltage will instantly destroy the encoder’s internal optics and circuitry.
Technical Comparison: Common Incremental Encoder Specifications
To assist our technical buyers, we have compiled a general reference table outlining the typical specifications you will encounter when sourcing replacement incremental encoders across various leading brands.
| Brand Compatibility | Common Series | Typical Voltage | Output Phase | Primary Application |
|---|---|---|---|---|

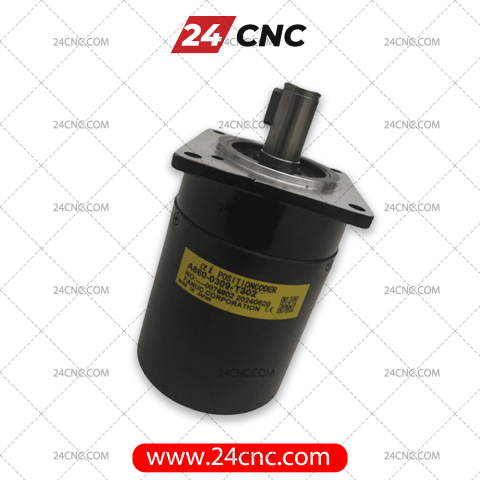

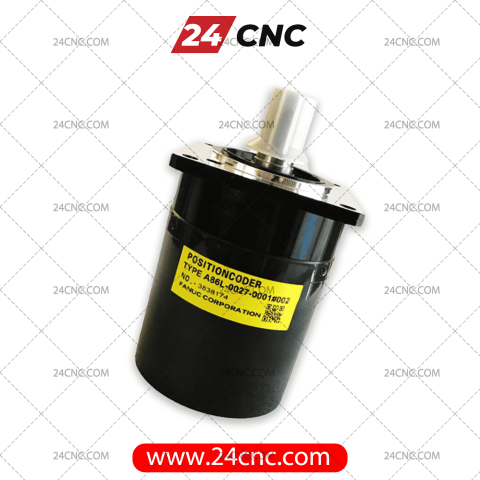

| Fanuc Encoders | Alpha / Alpha i Series Spindle | 5V DC | A, B, Z (Line Driver) | Spindle Speed Feedback, Main Drives |

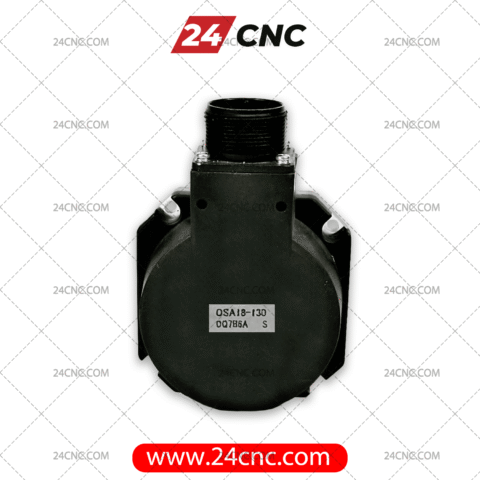

| Mitsubishi Encoders | OSA / OSE Series | 5V DC / 12V DC | A, B, Z | AC Servo Motors, Axis Positioning |
| Tamagawa | OIH / TS Series | 5V DC – 24V DC | Push-Pull / Line Driver | Universal CNC Applications, Robotics |
| Siemens | Sinumerik / 1XP8001 | 10-30V DC | HTL / TTL | Heavy Duty Spindles, Milling Modules |
Complementary Components and Maintenance
A reliable feedback loop requires more than just a top-tier encoder. Signal degradation is a primary cause of positioning errors. To guarantee optimum performance, it is vital to inspect and upgrade related components.
If you are experiencing intermittent alarms, the issue often lies within the wiring. We highly recommend browsing our selection of shielded encoder cables to protect delicate phase signals from electrical noise generated by high-voltage power cables. Furthermore, always verify the integrity of your engine-side sockets and connectors during installation, as coolant ingress and vibration can deteriorate the connection over time.
For workshops doing complete machine overhauls, exploring our broad range of CNC sensors, fuses, and IC hybrids can save you massive shipping costs and lead times when ordered together.
Why Choose 24cnc.com for Industrial Automation Parts?
We are not just a marketplace; we are technical specialists dedicated to the CNC industry. Here is why engineers and factory managers trust us worldwide:
- ✔️ Extensive Live Stock: We carry hard-to-find, obsolete, and current-generation incremental encoders.
- ✔️ Quality Assurance: Every refurbished or tested part undergoes strict quality control checks before dispatch to ensure it meets original factory specifications.
- ✔️ Global Express Shipping: Machine down? We utilize expedited international courier services to get your replacement parts to your facility as fast as humanly possible.
- ✔️ Expert Support: Unsure if a specific Tamagawa or Mitsubishi encoder will fit your machine? Our technical sales team is ready to cross-reference parts for you.
Frequently Asked Questions (FAQ)
What is the difference between an incremental and an absolute encoder?
An incremental encoder generates pulses relative to movement and requires a “homing” sequence upon power-up to establish a starting point. An absolute encoder assigns a unique digital code to every position, meaning it retains its exact rotational position even if the CNC machine loses power.
Do you ship replacement incremental encoders internationally?
Yes, 24cnc.com specializes in global logistics. We ship vital CNC replacement parts worldwide using trusted, expedited courier services to ensure you minimize your machine downtime, no matter where your factory is located.
How do I know if my CNC encoder is failing?
Common symptoms of a failing incremental encoder include servo alarms (such as Fanuc™ alarms detailing pulse mismatches or disconnects), erratic axis movement, loss of precision in machined parts, and spindle speed fluctuations. We recommend inspecting the cables first, as wiring issues often mimic encoder failures.
Do you provide a warranty on your CNC parts?
Yes, we stand behind the quality of our components. Warranty periods depend on whether the part is Brand New In Box (NIB), New Without Box (NWOB), or refurbished. Please contact our sales team for specific warranty details regarding the exact part number you need.
