In the complex electrical architecture of industrial machinery, the CNC Fuse acts as the ultimate frontline defender. Often overlooked due to their small size, these vital components are the sacrificial lambs designed to protect your highly expensive investments. When a sudden power surge, short circuit, or motor overload occurs, the fuse blows in a fraction of a millisecond, severing the electrical connection and saving your Power Supply Unit (PSU) and Servo Amplifiers from catastrophic, unrepairable damage.
For workshop owners, maintenance engineers, and procurement officers, a blown fuse signifies two immediate realities: first, the machine is down and production has halted; second, a specific electrical anomaly has occurred that needs addressing. However, simply replacing a CNC fuse with a generic hardware-store alternative is a dangerous gamble. Industrial CNC controllers from leading brands like Fanuc and Mitsubishi require specialized alarm-indicating micro-fuses. At 24cnc.com, we supply an extensive inventory of 100% genuine, OEM-spec fuses to ensure your machinery operates safely and returns to production immediately.
Technical Insight: Why Standard Fuses Fail in CNC Applications
It is a common misconception that “a fuse is just a fuse.” In the realm of high-precision CNC machining, this could not be further from the truth. The micro-fuses utilized on CNC mainboards, servo drives, and I/O modules possess unique characteristics that dictate their necessity:
- Alarm Indication (The Flag): Authentic CNC fuses (such as those manufactured by Daito) are designed with a mechanical alarm flag—typically a small white or red pin that physically pops up when the fuse blows. This pin triggers a microswitch or optocoupler on the circuit board, sending an immediate emergency stop (E-Stop) signal to the Control System. If you use a non-indicating fuse, the controller will not realize power has been lost to a specific axis, potentially leading to a devastating mechanical crash.
- Exact Blow Curves (I²t ratings): Standard glass fuses blow at varying speeds. CNC electronics require highly specific time-current characteristics to handle inrush currents from servo motors during heavy acceleration without nuisance blowing, while still acting fast enough to protect sensitive IGBT modules during a true short circuit.
- Vibration and Thermal Resistance: Machining centers generate intense vibrations and heat. OEM fuses are constructed with industrial-grade resins and encapsulated elements that will not shatter or degrade under severe shop-floor conditions.
Exploring Our CNC Fuse Inventory (Daito Series)
The majority of Japanese and Taiwanese machine tools standardize on Daito micro-fuses. These are categorized by series, each possessing distinct physical dimensions, voltage ratings, and amperage capacities. We stock the complete range of essential replacement lines:
A) HM Series Fuses
The HM series is arguably the most recognizable radial-lead micro-fuse in the automation industry, ubiquitous on Fanuc Alpha and Alpha i series servo amplifiers. They are highly compact, transparent-bodied, and feature the critical alarm-indicating flag. Common amperages range from 0.3A to 5A.
Browse HM Series Inventory →
B) LM Series Fuses
The LM series provides a similar form factor to the HM but is rated for different voltage and interrupt capacities, frequently found protecting control circuits, I/O boards, and auxiliary power supplies on legacy systems.
Browse LM Series Inventory →

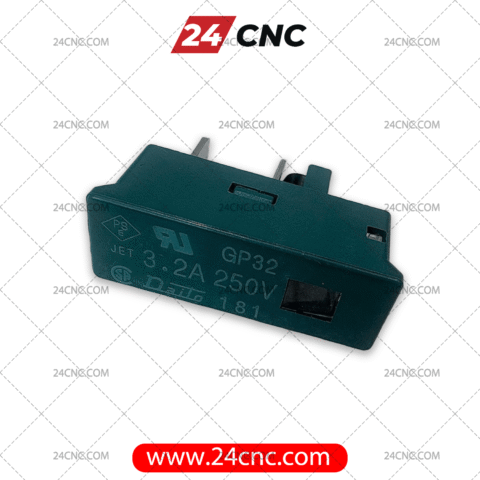

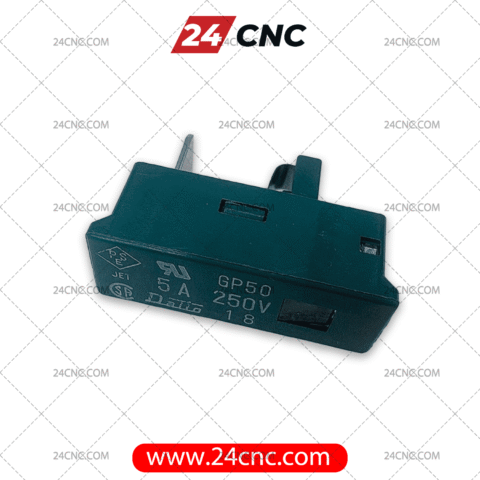

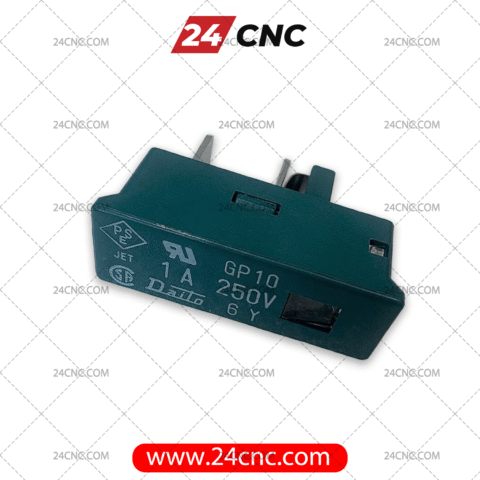

C) MP & GP Series Fuses
Designed for slightly higher current applications, the MP and GP series feature a robust, opaque plastic casing. They are commonly utilized for main input protection on smaller drives or auxiliary equipment. Like their counterparts, they feature reliable mechanical alarm flags.
Browse MP Series → | Browse GP Series →
D) HP Series Fuses
The HP series represents the heavy-duty segment of indicating fuses. These are physically larger and handle significantly higher amperages (often up to 50A or more), designed specifically for the main AC power input stages on large servo drives and spindle amplifiers.
Browse HP Series Inventory →
The Buyer’s Guide: 4-Step Selection Protocol
Sourcing the correct replacement fuse is paramount. Installing a fuse with a lower rating will cause nuisance tripping, while a higher rating removes your system’s protection, risking catastrophic electrical fires. Follow these steps before you buy:
- Identify the Series Prefix: Look closely at the top or side of the blown fuse. You will typically see letters like HM, LM, MP, or HP. This dictates the physical size and pin configuration.
- Verify the Amperage Rating: Following the prefix, you will see numbers indicating the amperage (e.g., HM32 represents a 3.2 Amp fuse; LM10 represents a 1.0 Amp fuse). Always replace with the exact matching amperage.
- Check the Color Code: Many Daito fuses use color-coded bases or bodies to visually represent their amperage, making it easier for technicians to quickly identify the correct replacement in a dark electrical cabinet.
- Diagnose the Root Cause: A fuse rarely blows for no reason. Before powering the machine back up, megger-test your servo motors and inspect your Power Cables for shorts to ground, which is the most common cause of fuse failure.
CNC Fuse Technical Comparison Matrix
To help you quickly identify the specifications of the most common Daito series fuses, refer to our technical matrix below:
| Series | Typical Current Range | Rated Voltage | Casing / Appearance | Primary Application |
|---|---|---|---|---|
| HM Series | 0.3A — 5.0A | 250V AC/DC | Transparent, Compact, Radial | Control boards, I/O modules |
| LM Series | 0.3A — 5.0A | 48V AC/DC | Transparent, Compact, Radial | Low voltage control circuits |
| MP Series | 0.3A — 7.5A | 125V AC/DC | Opaque Green/Black, Rectangular | Servo drive auxiliary power |
| HP Series | 10A — 50A+ | 250V AC | Large, Opaque Black, Bolt-on/Plug | Main drive / Spindle power input |
Why Source Your Replacement Fuses from 24cnc.com?
When a fifty-cent fuse takes down a million-dollar production line, reliability and speed are your only concerns. Here is why 24cnc is the preferred partner for procurement officers globally:
- Guaranteed Authenticity: Counterfeit fuses flood the online market. These fakes often fail to break the circuit accurately, causing fires. We guarantee 100% genuine OEM components.
- Massive In-Stock Inventory: We keep thousands of HM, LM, MP, GP, and HP series fuses on our shelves. We don’t drop-ship; if it’s in stock, we have it in our hands ready to dispatch.
- Same-Day Expedited Shipping: Machine down? No problem. Orders placed before our daily cutoff are processed immediately and shipped via express courier networks to ensure you get your parts as fast as humanly possible.
- Comprehensive Support: If you are unsure why your fuse keeps blowing, our technical team can assist you in sourcing accompanying parts like Sensors or power components to solve the root cause.
Frequently Asked Questions (FAQ)
I just replaced the fuse and it blew again immediately. What does this mean?
Fuses do not create problems; they react to them. If a new fuse blows instantly upon powering the machine, you have a hard short circuit downstream. You must immediately stop replacing the fuse and inspect the servo motor, the power cables, or the internal IGBT transistors of the drive unit.
Can I bypass a blown indicating fuse temporarily?
Absolutely not. Bypassing a fuse with wire (a practice known as “pennying”) or using a non-OEM automotive fuse removes the safety barrier. A power surge will pass directly into the main printed circuit board (PCB), turning a minor $15 repair into a catastrophic $5,000+ board replacement.
Are these fuses sold individually or in packs?
While we can supply individual fuses to cover an immediate emergency, we highly recommend purchasing them in packs of 5 or 10. Keeping a spare pack in your electrical cabinet ensures that a simple power surge will never cause hours of downtime in the future.
Secure Your Uptime: Order Authentic CNC Fuses Today
Don’t let a blown micro-fuse cost you thousands in lost production. Our inventory is fully stocked with authentic HM, LM, MP, GP, and HP series OEM replacements. Send us your part number or a photo of your blown fuse for instant pricing and availability.
