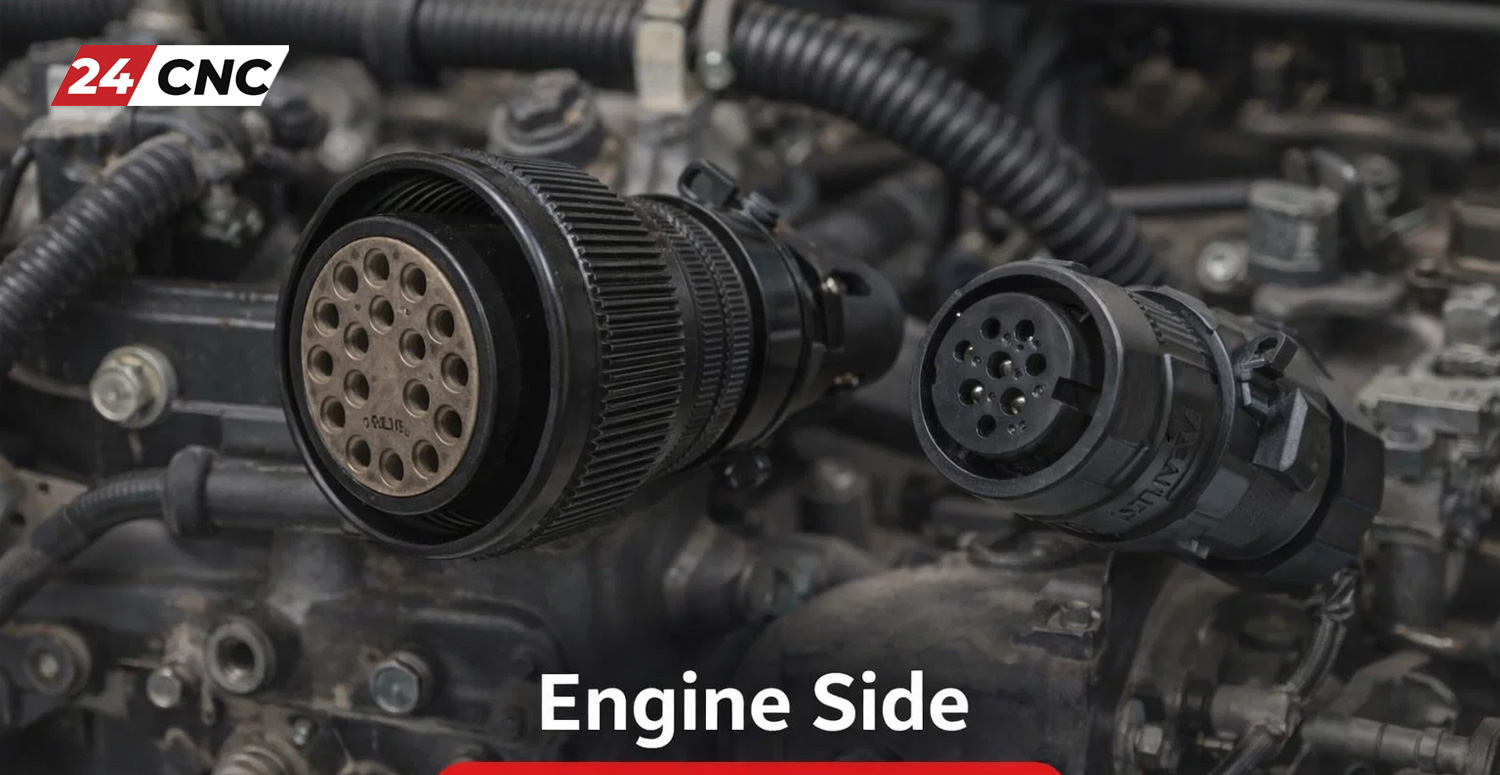

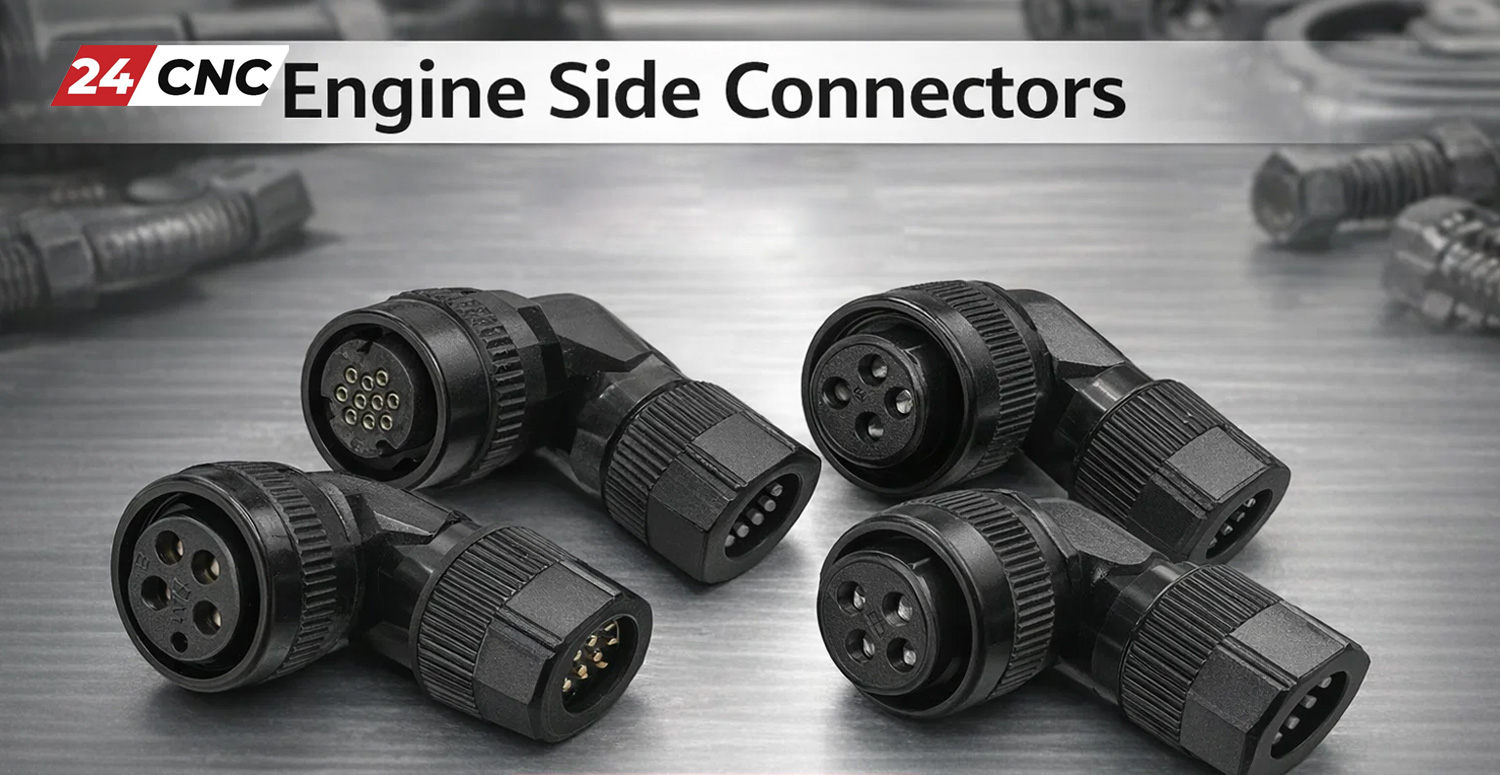

In the high-precision world of CNC machining, the connection between your control system and your motors is the lifeline of your production. Engine Side connectors (often referred to as motor-side sockets or receptacles) are the critical interface mounted directly on your servo or spindle motors. These components face the harshest environments in the machine tool industry: constant vibration, exposure to aggressive coolants, and oil mist.
At 24cnc.com, we specialize in keeping your machine running. When a connector fails due to corrosion, pin fatigue, or physical impact, replacing the entire motor is an expensive waste. Instead, browse our extensive inventory of replacement Engine Side sockets and connectors designed to restore the integrity of your servo motors and spindle units efficiently and affordably.
Why the Right Engine Side Connector Matters
A compromised connector is more than just a loose wire; it is a direct path for coolant to enter your expensive motor windings or encoder electronics. Symptoms of a failing engine side connector often mimic more serious hardware failures, leading to misdiagnosis.
- Prevent Intermittent Alarms: Loose pins caused by vibration can trigger random feedback alarms on your CNC controller.
- Protect Against Ingress: cracked shells or worn O-rings compromise the IP rating, allowing fluid to short out your rotary encoder.
- Restore OEM Performance: We stock connectors compatible with major brands like Fanuc, Mitsubishi, and Siemens.
Identifying Your Connector Type
Finding the exact replacement usually involves identifying the manufacturer (such as Honda, DDK, AMP, or Canon) and the pin configuration. These connectors generally fall into two main categories:
1. Power Connectors (Servo & Spindle)
These are heavy-duty sockets designed to handle high voltage and current to drive the motor. They often feature robust locking mechanisms to prevent disconnection during high-speed acceleration. If you are replacing the socket, it is also wise to inspect the mating power cable for heat damage or brittleness.
2. Feedback / Signal Connectors

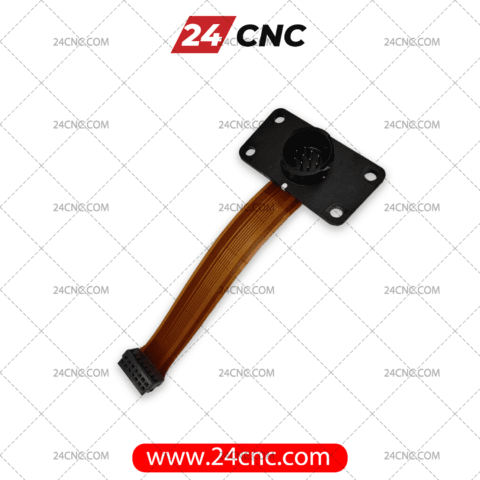

These are high-density, low-voltage connectors that transmit sensitive data from the encoder to the drive. Signal integrity here is paramount. A corroded pin in an engine side encoder socket can cause “Pulse Coder Disconnect” errors. Ensure you also check your encoder cables when replacing these sockets.
Technical Comparison: Common Engine Side Interface Standards
| Connector Type | Primary Application | Key Features | Related Components |
|---|---|---|---|
| Mil-Spec (Circular) | Heavy Duty Servo & Spindle Power | Threaded coupling, high vibration resistance, waterproof. | Drive Side Connectors |
| PCR / Rectangular | Encoder & Feedback Signals | High pin density, compact design, push-lock mechanism. | Fanuc Sensors |
| Quick-Connect (Bayonet) | Small Servo Motors | Quarter-turn locking, fast maintenance. | Mitsubishi Motors |
Installation Tips for Longevity
When installing a new engine side socket, cleanliness is key. Ensure the mounting surface on the motor housing is free of oil and debris. Always use the appropriate industrial glue or sealant if the original gasket is compromised, but be careful not to foul the electrical contacts.
For systems that have suffered from severe cable drag, consider checking the socket and connector category for strain relief accessories to prevent recurrence.
Frequently Asked Questions (FAQ)
What is the difference between “Engine Side” and “Drive Side” connectors?
Engine Side connectors are mounted directly on the motor (the “engine”) or attach to the cable end that plugs into the motor. Drive Side connectors attach to the amplifier or drive unit inside the electrical cabinet. They often have different shapes and IP ratings.
Can I replace just the pins inside the connector?
While possible for crimp-style connectors, it is often more reliable and cost-effective to replace the entire socket housing, especially if the plastic has become brittle due to age or heat. This ensures a proper waterproof seal.
Do these connectors come with warranty?
Yes, all parts sold by 24cnc.com, including our range of uncategorized accessories and connectors, are inspected for quality. Please check our specific warranty policy for details on electrical components.
Can’t Find the Exact Connector?
Connector part numbers can be confusing. If you are unsure which socket fits your Fanuc, Siemens, or Mitsubishi motor, our technical team is here to help.
