Fanuc drive

In the realm of industrial CNC machining, precision and power are inseparable. The Fanuc drive—often referred to as a servo amplifier or spindle inverter—is the muscular system of your machine tool. While the CNC controller calculates the toolpath, it is the drive module that executes those commands, delivering high-voltage, high-frequency electrical currents to the motors to achieve micrometer-level accuracy at rapid traverse rates. When a Fanuc drive fails, your entire production line comes to an immediate, costly halt.

At 24cnc.com, we understand that unplanned machine downtime is the enemy of profitability. Whether you are dealing with a catastrophic IGBT short circuit, a persistent IPM alarm, or drive communication errors, we supply a comprehensive inventory of genuine Fanuc drives. From the industry-standard Alpha $i$ series to hard-to-find legacy C-series and analog amplifiers, we ensure procurement officers and maintenance engineers get the exact OEM replacements they need.

The Architecture of Fanuc Drive Systems: PSM, SVM, and SPM

Modern Fanuc amplification systems (notably the $\alpha$ and $\alpha_i$ series) operate on a highly efficient modular bus architecture. Rather than having a single massive unit, the workload is distributed across specialized modules. Understanding this configuration is essential when diagnosing alarms and purchasing replacements.

• Power Supply Module (PSM): The foundational unit of the rack. The PSM takes incoming 3-phase AC power from the shop floor and rectifies it into a high-voltage DC bus (typically around $300V$ or $600V$ DC, depending on the $200V$ or $400V$ class system). If none of your drives power up, you may need a replacement Fanuc power supply module.
• Servo Amplifier Module (SVM): These modules draw DC power from the PSM bus and invert it back into precisely controlled AC waveforms to drive the machine’s axes (X, Y, Z, A, B, C). Depending on your machine’s configuration, a single SVM might control one, two, or three Fanuc servo motors simultaneously.
• Spindle Amplifier Module (SPM): Operating similarly to the SVM, the SPM is dedicated solely to the main spindle motor. It handles significantly higher continuous current loads and complex vector control algorithms to maintain exact RPMs during heavy chip-making operations.

From a physics perspective, when an axis interpolates, the dynamic mechanical torque demand can be modeled as $T_m = J \times \alpha + T_f$ (where $J$ is total inertia, $\alpha$ is angular acceleration, and $T_f$ is friction torque). The Fanuc drive must instantly calculate and deliver the necessary electrical current, governed by the motor’s torque constant: $I = \frac{T_m}{K_t}$. Even a microsecond delay or voltage drop in this delivery—often caused by degraded internal Fanuc hybrid ICs—results in poor surface finishes or following error alarms.

How to Identify and Order the Correct Fanuc Drive

Procurement errors in CNC electronics can delay repairs by weeks. Fanuc utilizes a strict, alphanumeric part numbering system. To guarantee compatibility with your Fanuc controller, you must order based on the exact part number.

You will find a yellow or silver identification tag on the front plastic cover or the side heatsink of the drive. The part number for drives almost always begins with A06B.

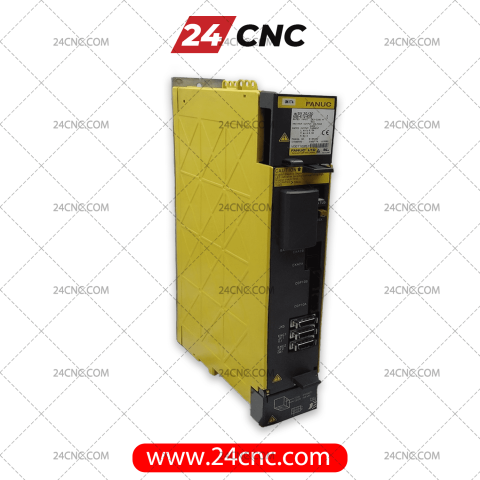

• Example Part Number: A06B-6114-H104 (This denotes an Alpha i Series Servo Module, 40A output).
• Hardware Revisions: Often, you will see a revision letter at the end (e.g., #H520). In most cases, later hardware revisions are backward compatible, but consulting with our technical team is highly recommended.

Diagnostic Tip: If your drive is reporting FSSB (Fanuc Serial Servo Bus) alarms like Alarm 5136, verify the integrity of your optical cables before concluding the SVM is dead. Fiber optic cables can easily fracture in dynamic cable tracks.

Technical Comparison: Fanuc Drive Series

Selecting the right replacement relies on knowing your generation of equipment. Below is a quick comparison of the most common drive architectures we stock and support.

Maintenance and Drive Longevity

Why do Fanuc drives fail? The most common culprits are thermal stress and electrical contamination. The IGBT (Insulated Gate Bipolar Transistor) modules inside these drives switch thousands of volts at incredibly high frequencies (usually between $4 kHz$ and $16 kHz$). This generates immense heat.

If the drive cooling fans fail, or if the heatsinks are clogged with vaporized coolant and cast-iron dust, the internal temperature skyrockets, leading to immediate semiconductor failure. Furthermore, short circuits in the motor power cables can blow internal safety fuses, requiring localized board repair or complete unit replacement.

Why Buy Fanuc Drives from 24cnc.com?

We are the CNC Market Authority. Partnering with 24cnc.com for your industrial automation procurement guarantees:

• Quality Assurance: Every refurbished Fanuc drive undergoes rigorous dynamic load testing on dedicated Fanuc test simulators to ensure the closed-loop feedback with Fanuc rotary encoders performs flawlessly.
• Massive Inventory: We stock full drive units as well as internal repair components like control PCBs, IGBT modules, and specialized drive controller fans.
• Global Logistics: We utilize priority global shipping networks because we know that an idle machine costs you thousands of dollars per day.
