Specifications:
Product: Handwheel
Model: 6FX2007-1AD03
Operating voltage: 5 … 5 V
Power consumption: Max. 4.5W
Cable: Spring loaded, 3.5M long
Up to 5 axes (X, Y, Z, 4, 5)
Ambient temperature: Storage 20 … 60+ °C / Operation 0 … 55 °C
Suitable for systems: SIEMENS

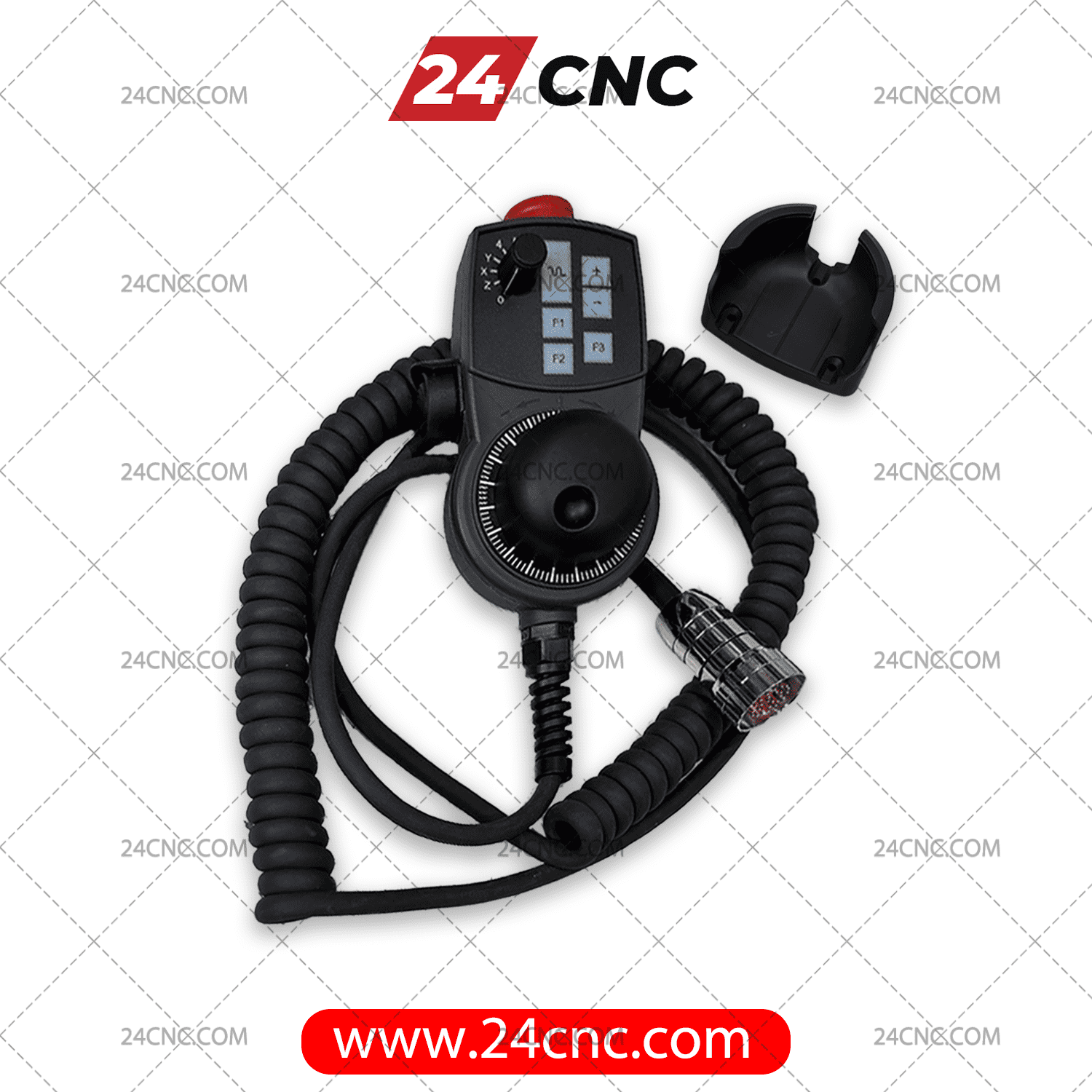

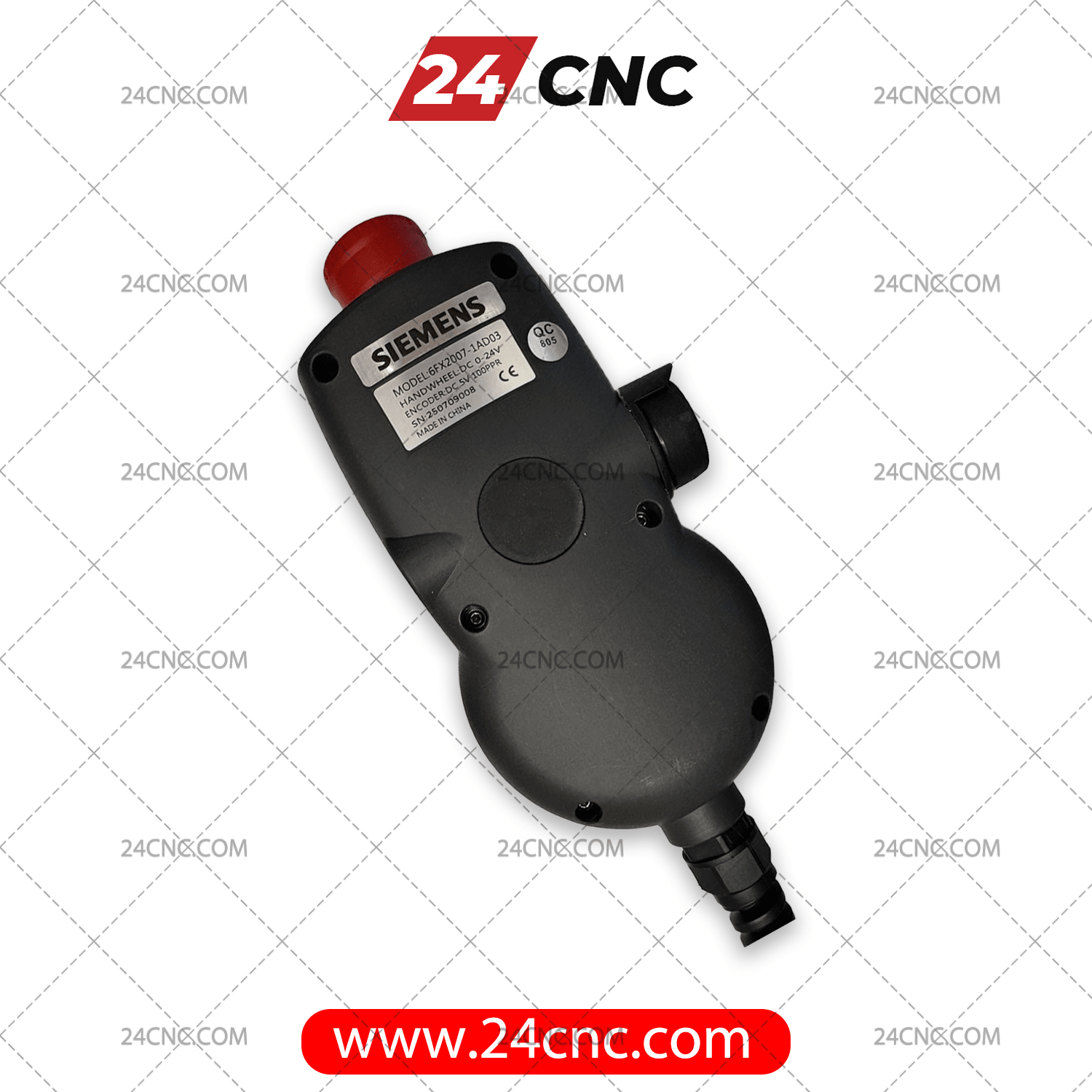

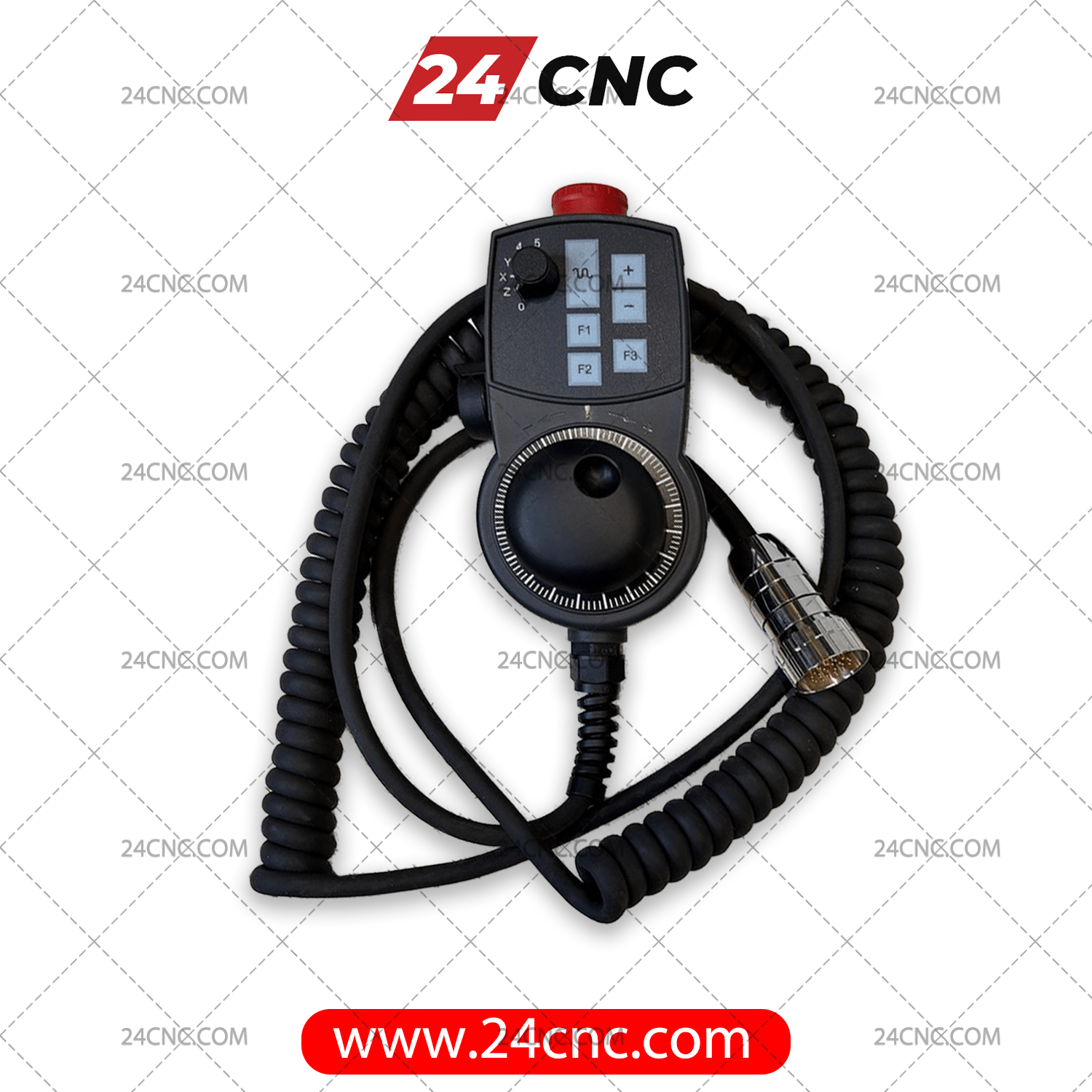

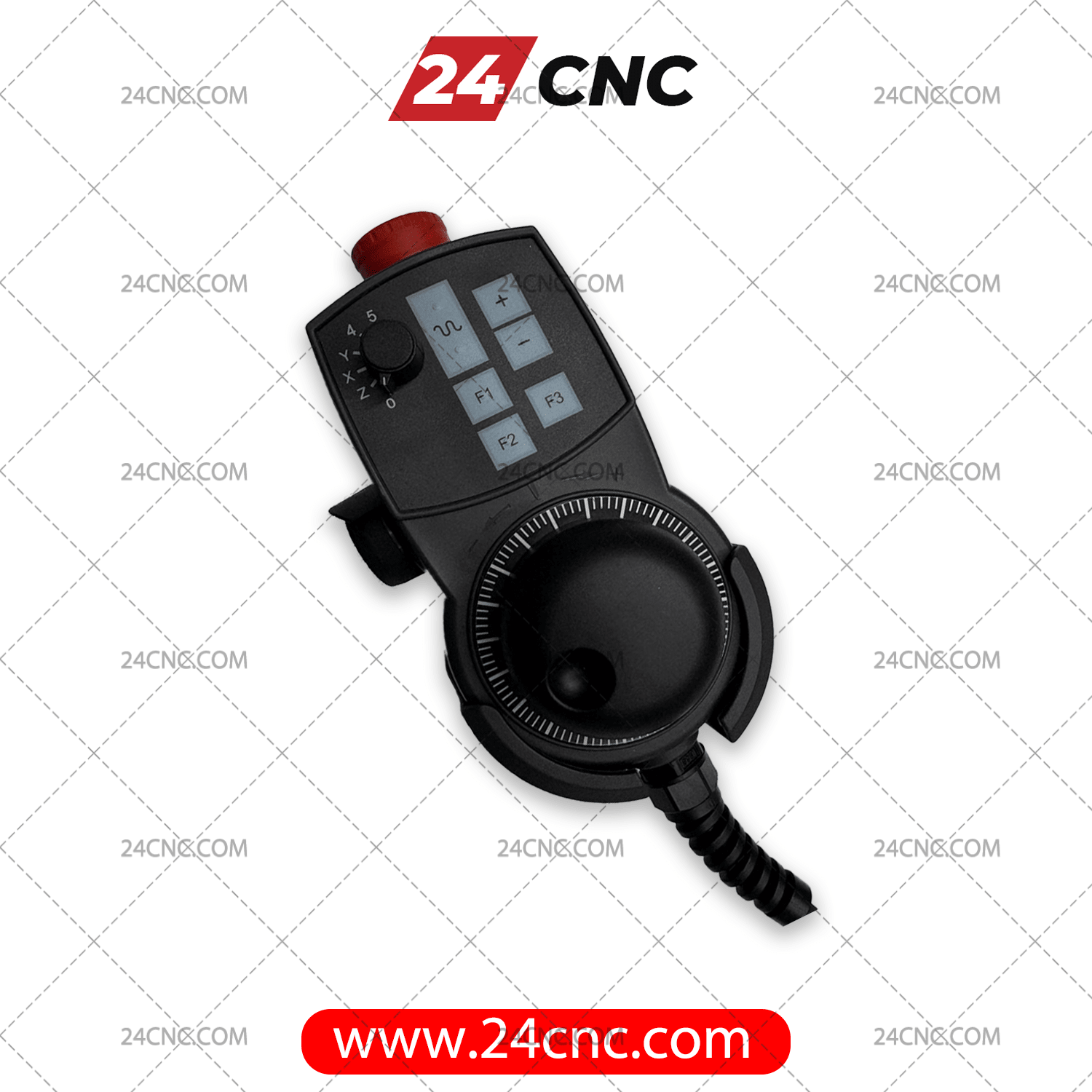

Description of this handwheel
The Siemens 6FX2007-1AD03 handwheel is a powerful accessory designed to increase the efficiency and safety of SINUMERIK CNC systems. It belongs to a wide range of handwheels that provide a user-friendly interface for machine operators and enable precise and safe control of CNC operations.
This small handwheel for SINUMERIK comes with a 2.1 m spiral cable, extendable up to 3.5 m, 2-channel emergency stop, 3-step confirmation button with a metal coupling handwheel with magnetic lock.
Features of the Siemens 6FX2007-1AD03 handwheel include:
- Channels: The device supports two channels, which allow for various control functions and communication between the handwheel and the SINUMERIK central control system.
- Safety: The machine is equipped with an E-Stop button, ensuring that the operator can quickly stop the operation in an emergency, thereby preventing accidents and damage to the machinery.
- Navigation: A handwheel with a locking feature is built into the machine, providing precise manual control over the movements of the CNC machine. The magnetic handwheel lock adds an extra layer of convenience by securely holding the wheel when not in use.
