Showing all 2 results
When precision is the lifeblood of your machining operations, even the smallest component failure can result in catastrophic downtime. The 6 mode handwheel selector is a critical interface component on your CNC machine’s Manual Pulse Generator (MPG). Responsible for allowing operators to seamlessly toggle between different axes (such as X, Y, Z, 4th, 5th, and 6th) or adjust pulse multiplication rates (x1, x10, x100), a faulty rotary switch directly compromises your setup speed and operational safety.
At 24cnc.com, we understand the urgency of replacing malfunctioning panel controls. We stock a comprehensive range of premium, OEM, and high-quality aftermarket 6 mode selector switches designed to integrate flawlessly with top-tier industrial systems, including Fanuc™ controllers, Siemens controllers, and Mitsubishi platforms. Whether you are a procurement officer searching for the exact replacement part price or an engineer diagnosing an intermittent handwheel connection, our technical catalog ensures you find the exact component to restore your machine’s manual positioning accuracy.
Understanding the Role of the 6 Mode Rotary Switch in CNC Operation
The 6 mode handwheel selector is fundamentally a multi-position rotary band switch. In CNC applications, these switches serve two primary functions depending on their wiring configuration on the operator panel or the remote pendant:
- Axis Selection: Modern multi-axis machining centers (5-axis mills or mill-turn lathes) require the operator to jog specific axes manually during tool touch-offs or workpiece setup. A 6-position switch typically maps to OFF, X, Y, Z, 4th (A/B/C), and 5th/6th axis.
- Multiplier/Resolution Selection: Handwheels generate pulses via a rotary encoder. The 6-mode switch allows the operator to dictate how far the machine moves per click of the MPG wheel. Typical layouts include settings like x1 (0.001mm), x10 (0.01mm), x100 (0.1mm), alongside custom macro trigger modes.
Because these selectors are subjected to continuous mechanical toggling, their internal electrical contacts are prone to wear, oxidation, or contamination from cutting fluids. When the switch begins to fail, operators may experience “dead spots” where an axis refuses to jog, or worse, unintended axis movement caused by shorted contacts. Replacing a degraded switch with a factory-spec 6 mode handwheel selector guarantees a return to crisp, reliable tactile feedback and secure electrical continuity.
The Professional Buyer’s Selection Guide: Identifying the Right 6 Mode Switch
Selecting the correct replacement involves more than just counting the clicks. To ensure seamless compatibility with your existing handwheel cables and I/O modules, consider the following technical specifications:
- Point-to-Point vs. Binary Coded Output: Ensure you know how your CNC interprets the switch signals. Standard switches use discrete point-to-point wiring for each mode, while more complex pendant systems might use binary or gray code to save wiring space.
- Contact Ratings & Voltage: Most CNC I/O systems, like the Fanuc Input/Output modules, operate on a standard 24V DC logic level. Ensure the replacement switch has gold-plated contacts rated for low-voltage, low-current signals to prevent signal bounce.
- Physical Dimensions & Mounting: Measure the panel cutout diameter (commonly 16mm, 22mm, or 30mm) and the shaft configuration (D-shaft vs. splined) to ensure your existing knobs will fit perfectly.
- Make-Before-Break vs. Break-Before-Make: For CNC logic, “Break-Before-Make” (non-shorting) switches are critical to ensure that two axes are never selected simultaneously during the transition between modes.

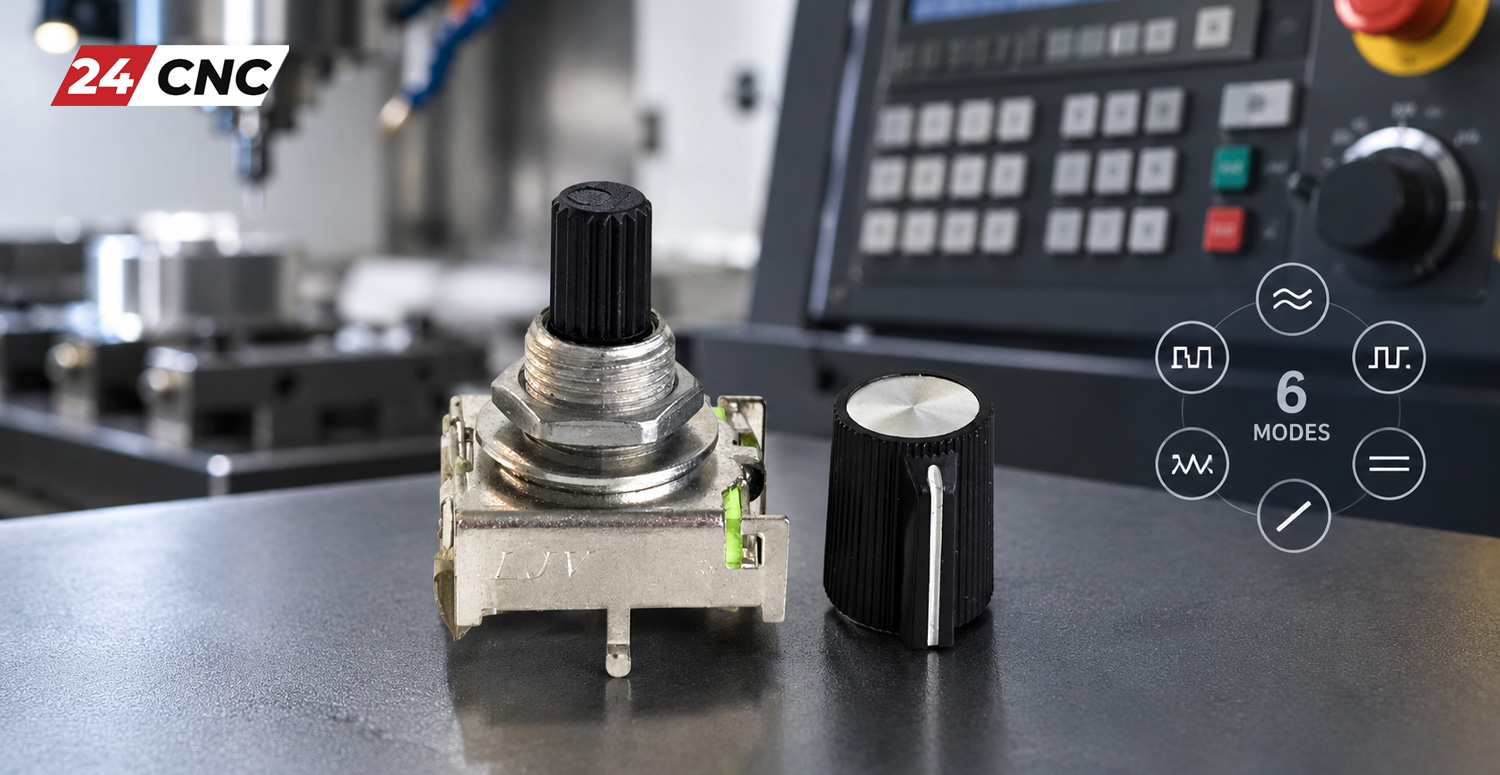

Technical Comparison: CNC Handwheel Selectors
Depending on your machine’s complexity, a 6-mode switch might not be your only option. Here is a quick reference table comparing standard selector configurations available in our handwheel selector category.
| Selector Type | Common Application | Typical Machine Use | Link to Category |
|---|---|---|---|
| 3 Modes | Basic XYZ Axis / x1, x10, x100 | Standard 3-Axis CNC Mills & Lathes | View 3 Modes |
| 6 Modes | XYZ + Rotary Axes + Off | 4-Axis / 5-Axis Machining Centers | Current Category |
| 12 Modes | Complex Override & Custom Macros | Multi-tasking Swiss Lathes, Custom Cells | View 12 Modes |
| 24 Modes | Feedrate / Spindle Speed Overrides | Main Operator Panel Overrides | View 24 Modes |
Troubleshooting: Is It the Switch or Something Else?
Before you buy a replacement 6 mode handwheel selector, it is highly recommended to isolate the fault. If your MPG is unresponsive on a specific axis (e.g., Z-axis jogs fine, but Y-axis is dead), the selector switch is the prime suspect. You can verify this by checking continuity across the switch terminals using a multimeter.
However, if multiple modes are failing simultaneously, or if the pulse generator is dropping counts, the issue may lie deeper within the pendant ecosystem. We recommend inspecting complementary components:
- Check the incremental rotary encoder inside the MPG unit for optical disc contamination or bearing wear.
- Inspect the flexible spiral cable for internal wire breaks, which are common after years of stretching. Browse our CNC cables for replacements.
- Ensure the main I/O board or main board processing the MPG signal is receiving the correct 5V or 24V supply from the CNC power supply.
Why Source Your CNC Spare Parts from 24cnc.com?
Navigating the complex landscape of CNC spare parts requires a trusted partner. Counterfeit switches can introduce severe electrical noise into your control loop, risking servo runaways or damaged I/O cards. By choosing 24cnc.com, you are guaranteed:
- ✓ Verified Authenticity: We source Genuine, OEM, and premium replacement components ensuring strict adherence to original manufacturer tolerances.
- ✓ Extensive Inventory: From CNC LCD screens and membrane keyboards to intricate servo motors, we are a one-stop-shop for all panel and drive repairs.
- ✓ Expert Technical Support: Unsure of your part number? Our engineering team can cross-reference your machine manual to find the exact 6 mode switch you need.
- ✓ Fast Global Shipping: We minimize your machine downtime by expediting parts directly to your facility.
Frequently Asked Questions (FAQ)
Can I replace a Fanuc™ 6 mode selector with a generic brand?
+
Yes, provided the generic or aftermarket switch meets the exact same electrical specifications (voltage rating, contact type, and pinout logic) as your OEM Fanuc switch. However, for maximum longevity in harsh industrial environments, we always recommend high-quality OEM replacements sourced from reputable brands like Toshiba or directly matching the Fanuc standard.
Do these selectors come pre-wired?
+
Most standalone 6 mode handwheel selectors are sold as raw components with solder lugs or screw terminals, requiring you to transfer the existing wiring from your old switch. If you require a complete plug-and-play assembly, check our remote handwheel category for fully assembled pendant units.
What is the warranty and return policy on CNC switches?
+
We stand by the quality of our industrial components. Most new parts come with a standard manufacturer’s warranty against defects. Please contact our support team prior to purchasing if you need specific warranty documentation for procurement compliance.
Ready to Eliminate Machine Downtime?
Don’t let a faulty $50 switch halt a $500,000 CNC machine. Browse our inventory of 6 mode handwheel selectors below to check live prices and availability. Need bulk pricing or technical verification for a specific part number?
