Optical

In the high-stakes environment of modern industrial machining, communication speed and signal integrity are non-negotiable. CNC optical cables (fiber optic lines) serve as the central nervous system of your machinery, transmitting critical, high-speed data between the CNC controller, servo amplifiers, and I/O modules. When an optical cable degrades or fails, the result is immediate machine downtime, costly production halts, and frustrating servo alarms.

At 24cnc.com, we understand that finding the right replacement part quickly is essential for workshop owners, procurement officers, and maintenance engineers. Whether you are looking to buy genuine OEM CNC optical cables or seeking high-quality aftermarket replacement options at a competitive price, our inventory is stocked to get your machines back up and running. We offer an extensive selection of CNC cables, specifically tailored for the most demanding industrial automation protocols.

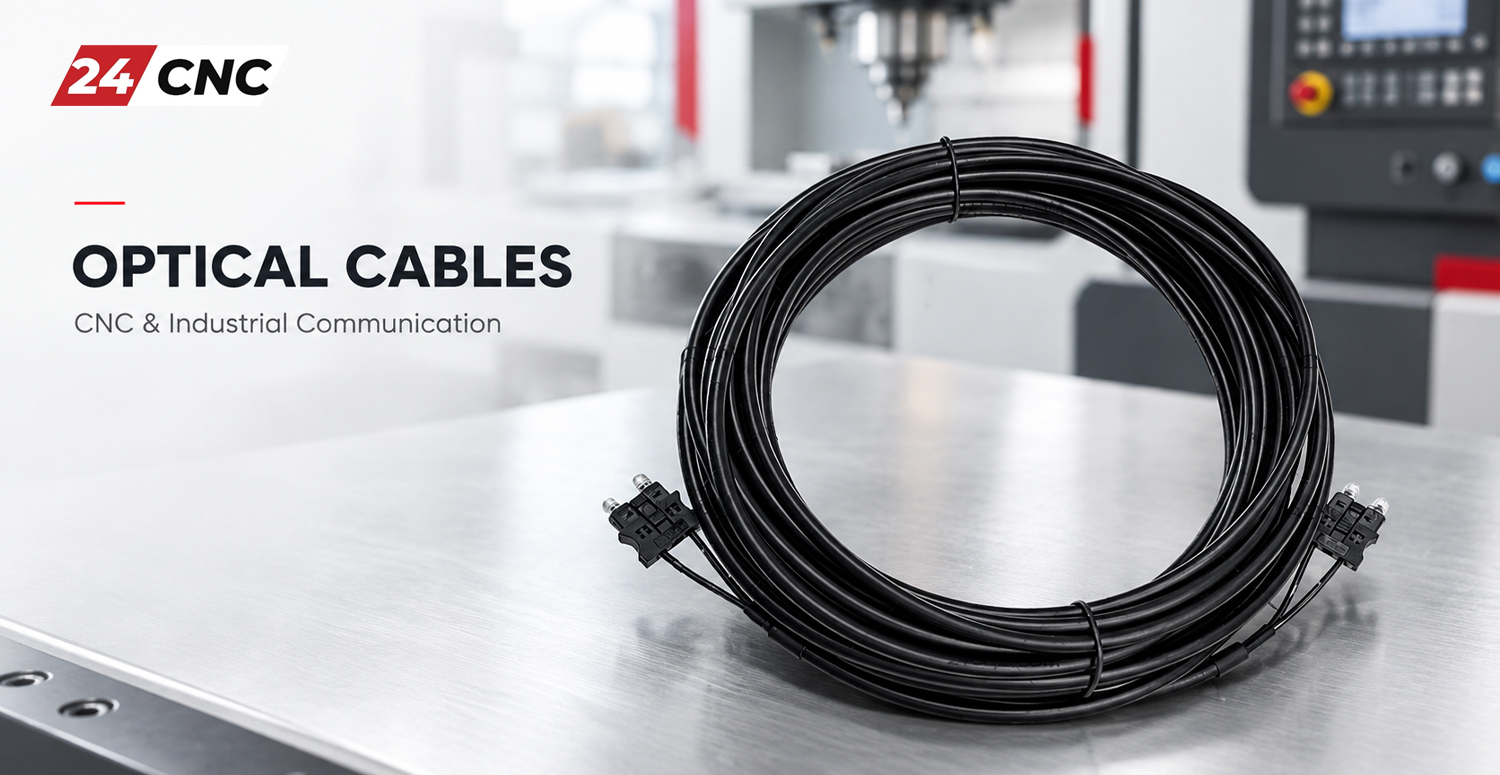

Why CNC Optical Cables Are Critical for Machine Performance

Unlike standard copper wiring, optical cables use light pulses to transmit data. This provides a massive advantage in industrial environments: complete immunity to Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI). High-voltage equipment like a heavy-duty Fanuc^™ drive or high-torque spindles generate intense electrical noise that would corrupt data on standard wires.

For instance, the Fanuc^™ Serial Servo Bus (FSSB) relies entirely on these fiber optic connections to synchronize the Fanuc controller with the axis amplifiers and inverters. A compromised optical cable can lead to delayed signal transmission, causing positioning errors, rough surface finishes on workpieces, or catastrophic axis runaway. Investing in top-tier replacement optical cables ensures your Fanuc Servo Motors and Fanuc encoders receive commands with microsecond precision.

Diagnosing Faulty CNC Optical Cables (Common Alarms)

Before deciding to buy a replacement optical cable, it is crucial to confirm the cable is the source of the failure. Optical fibers are delicate; physical damage from being pinched in cable tracks (drag chains), exposure to aggressive coolants eating through the jacket, or excessive bending beyond the minimum bend radius can break the glass or plastic core.

Look out for these common symptoms:

• Fanuc FSSB Alarms (e.g., Alarm 5136, 5139): These directly indicate a communication error on the optical bus. The amplifier number mentioned in the alarm often points to the specific cable segment that has failed.
• Mitsubishi SSCNET Errors: Similar to Fanuc, a break in the fiber optic ring will trigger bus errors, halting communication between the controller and the Mitsubishi drive.
• Intermittent Drops: If the machine runs fine but randomly throws servo errors during rapid movements, the optical cable inside the cable carrier may have a micro-fracture that only disconnects at certain angles.

Buyer’s Guide: How to Order the Correct CNC Optical Cable

Ordering the correct optical cable requires attention to detail. A cable that is too short will be subjected to tension, leading to premature failure, while an incompatible connector will simply not plug into your Control System. Follow these steps to secure the exact fit:

1. Locate the Part Number: Check the jacket of your existing cable. For Fanuc systems, optical cable part numbers typically begin with A66L- (e.g., A66L-2001-0026, A66L-2001-0023).
2. Determine the Length: Optical cables are precision-cut. Measure your existing cable end-to-end. We offer a variety of standard lengths ranging from short jumper cables (0.15m) connecting adjacent drives, to long-run cables (up to 30m) connecting the main controller to distant rotary encoders or auxiliary cabinets.
3. Check the Protocol/Brand: Confirm whether your machine utilizes Fanuc FSSB, Mitsubishi SSCNET, Yaskawa MECHATROLINK, or Siemens DRIVE-CLiQ (Note: Siemens often uses specialized copper for DRIVE-CLiQ, but optical variants exist for extended runs).
4. Identify Connector Types: Inspect the locking mechanism. Some cables use push-pull snap connectors, while others use threaded or heavily shielded industrial connectors designed for high-vibration areas.

Technical Specifications & Cross-Reference Table

Use the table below to cross-reference common CNC optical cable specifications. If you do not see your specific model, our inventory is vast—contact us directly for real-time stock checks.

Best Practices for Installing CNC Optical Cables

Once you purchase your replacement cable, proper installation is paramount. Treat optical cables with more care than standard power cables.

• Respect the Bend Radius: Never bend an optical cable at a sharp 90-degree angle. Exceeding the minimum bend radius (usually around 30mm to 50mm depending on the specs) will cause micro-bends that scatter light, dropping the signal or snapping the internal core.
• Keep Terminals Clean: The tips of the optical connectors must be entirely free of dust, cutting oil, and fingerprint smudges. Even a microscopic speck of dust can block the light signal. Leave the protective dust caps on until the exact moment of connection.
• Avoid Zip-Tie Pinching: When routing the cable alongside encoder cables or power lines in the cabinet, do not over-tighten cable ties. Crushing the outer jacket will compress the optical core and induce attenuation (signal loss).
