Specifications:
Product: Remote Handwheel

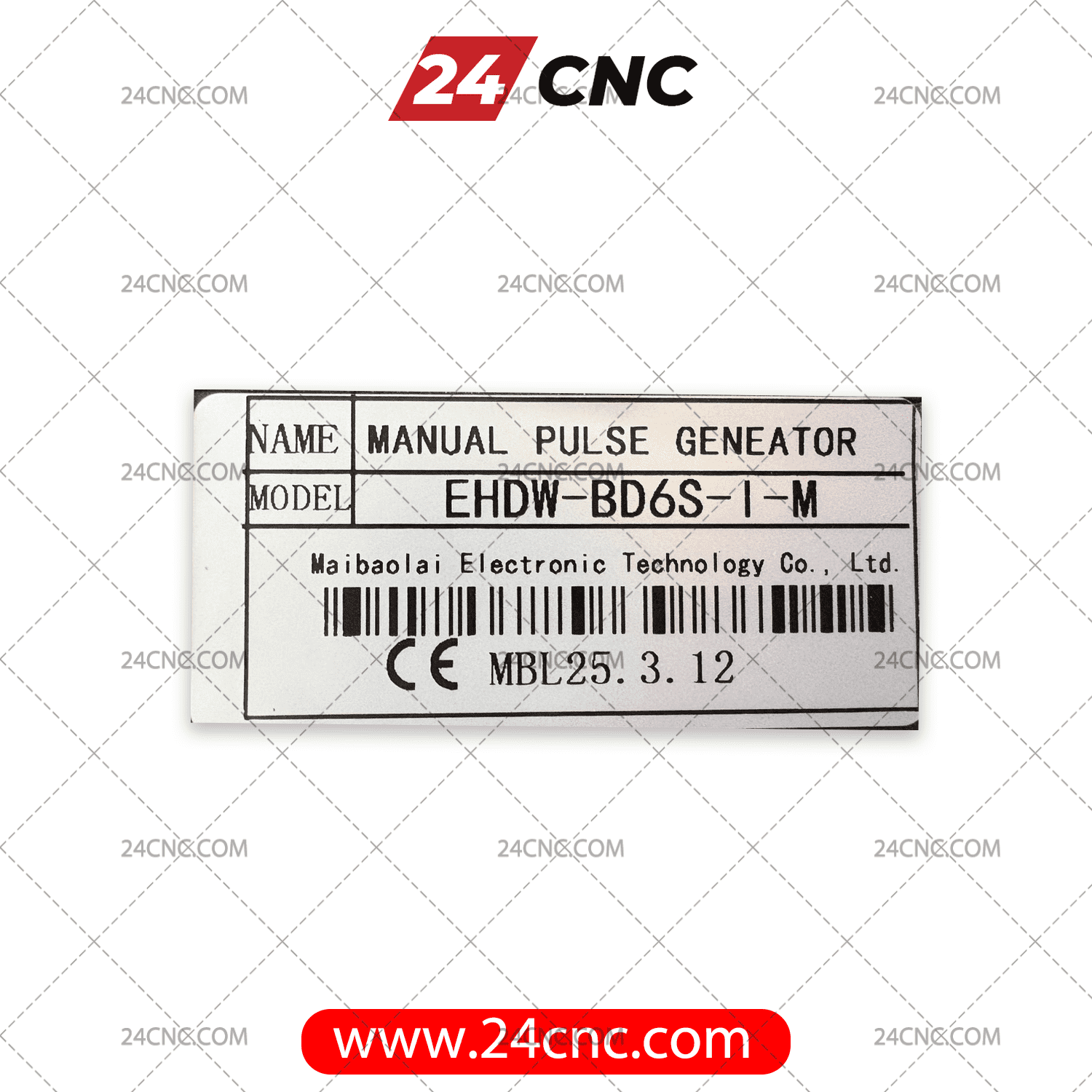

Model: EDHW-BD6S-I-M
Input Voltage: 12VDC
Pulse: 25PPR
Up to 6 axes (X, Y, Z, 4,5,6)
Selection Speed: 1X , 10X , 100X

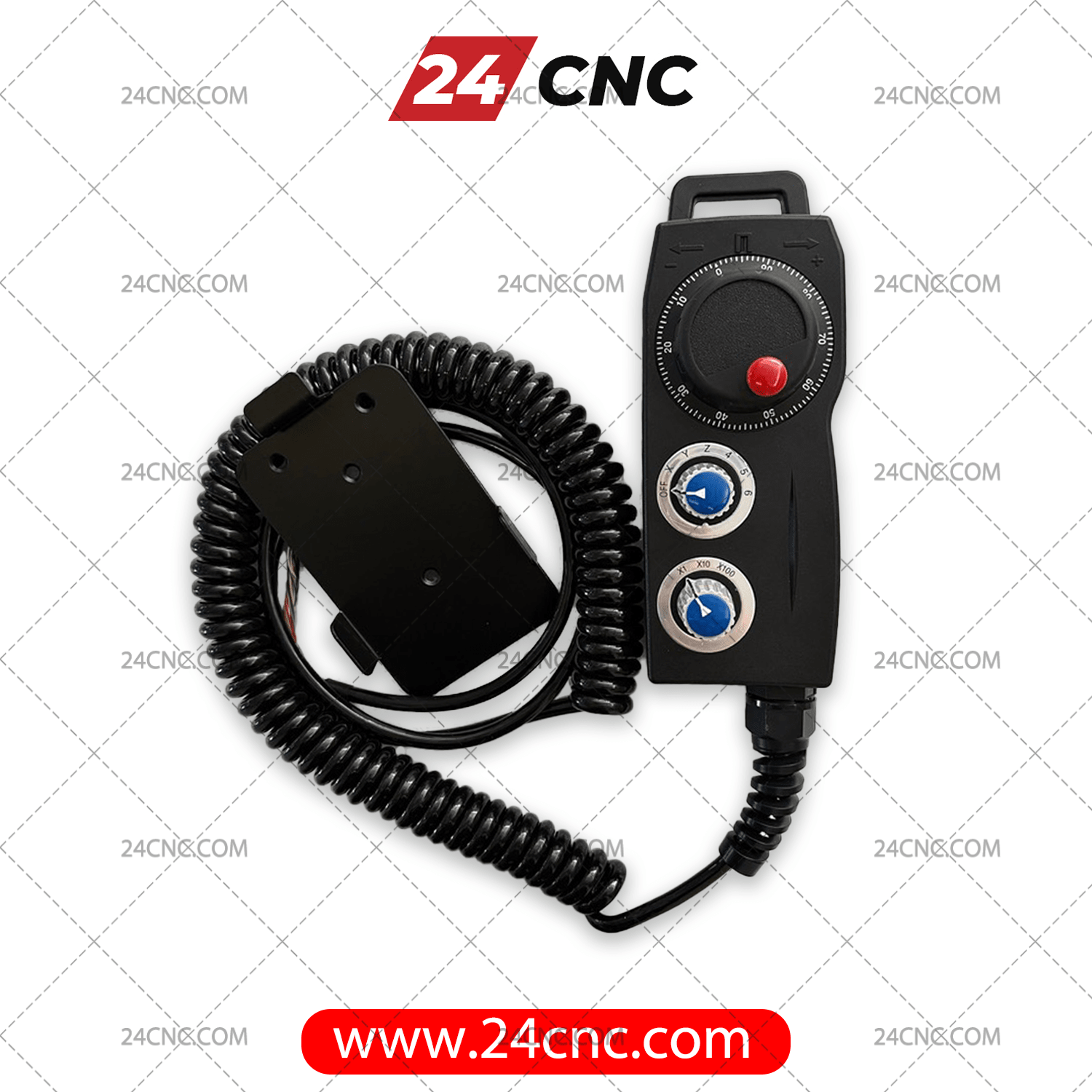

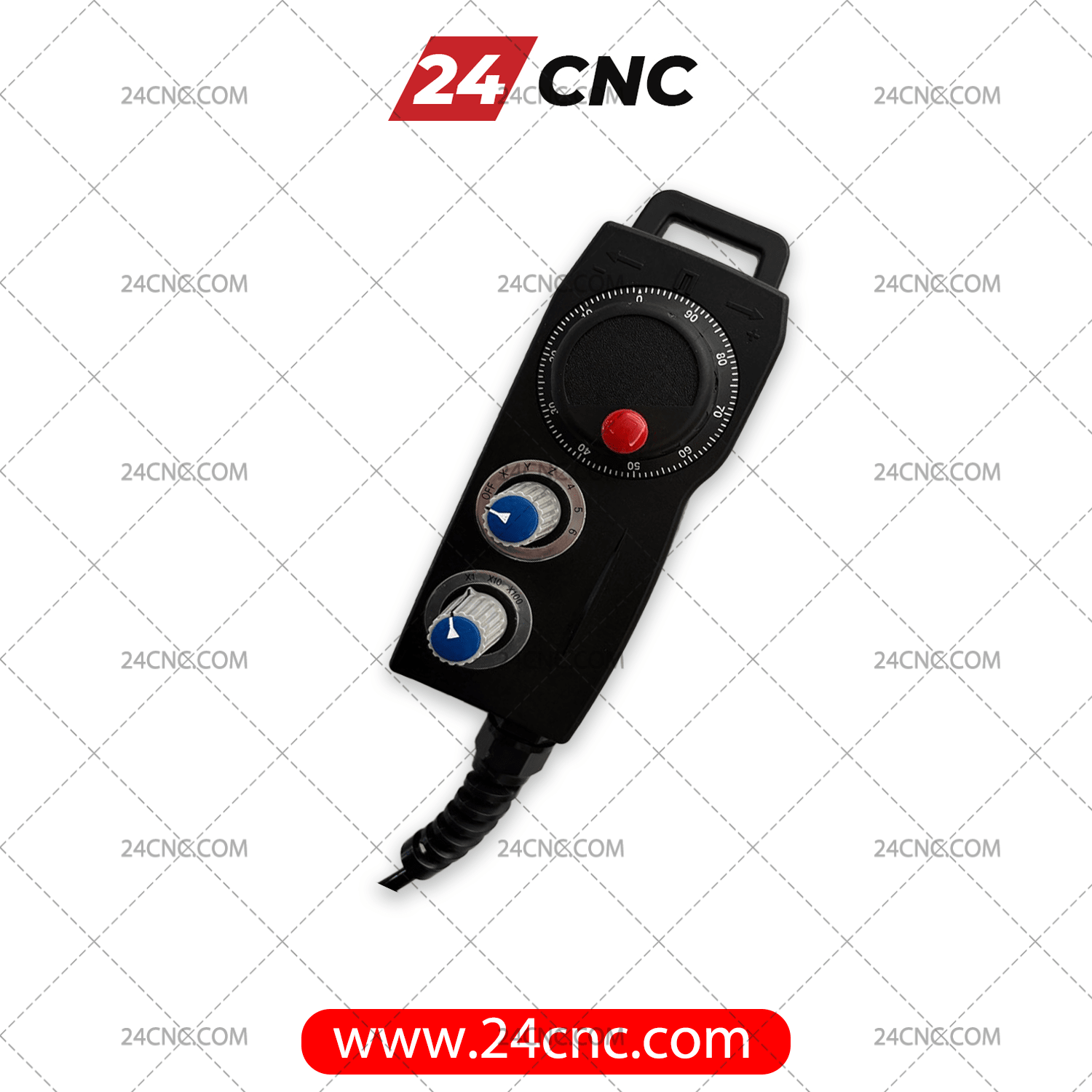

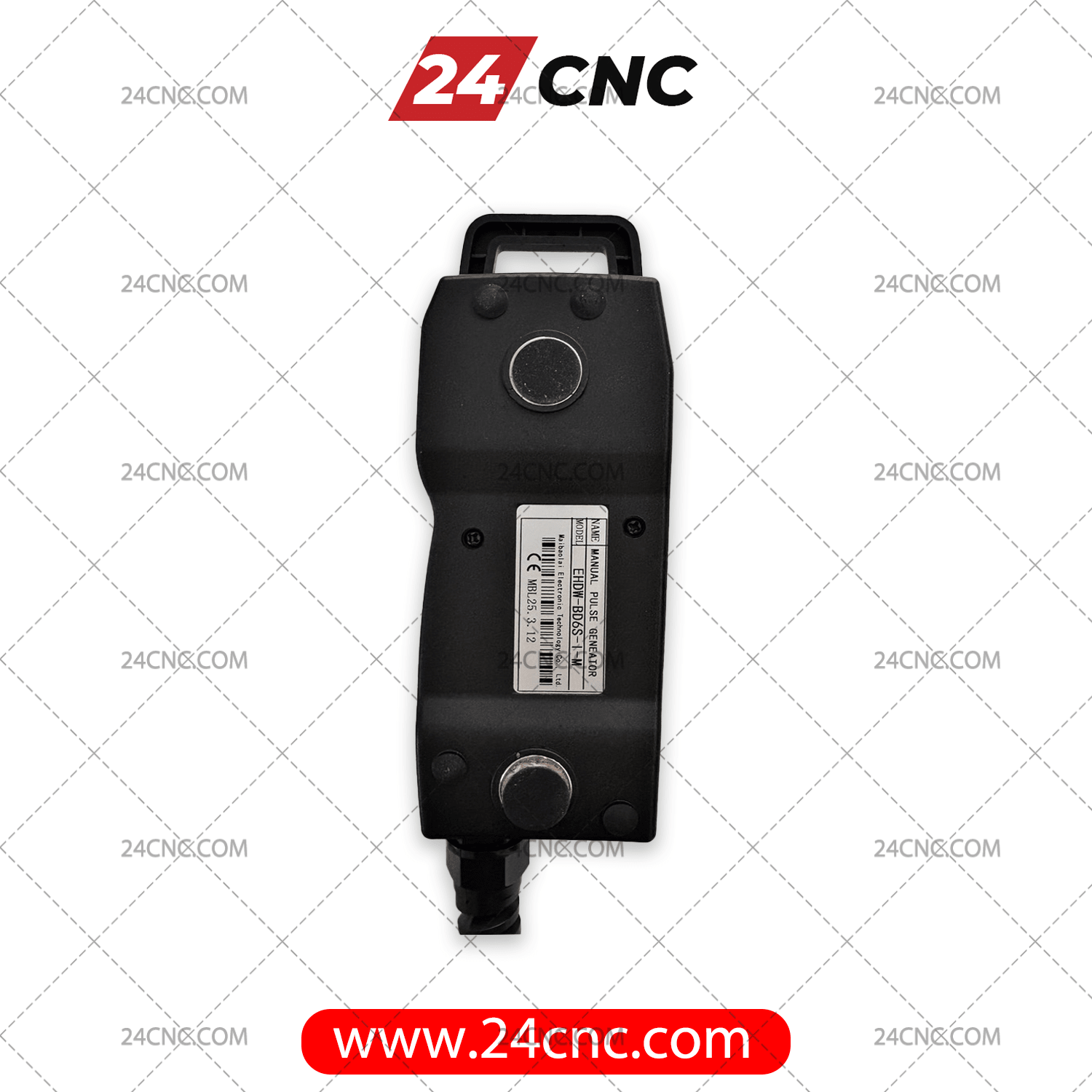

Description of Wired Handwheel
Remote Handwheel (Wired), with technical code EDHW-BD6S-IM, is a 6-axis hand controller with the ability to select axes (6*5*X*Y*Z*4) in MPG mode using a portable controller.
Remote and portable CNC handwheels are designed to provide sufficient control over the workpiece positioning, precise adjustment of the position and speed of the workpiece movement to bring ease of work to CNC machine operators.
This handwheel with an input voltage of 12VDC, 25PPR pulse, made in China, has a 3-meter long, 21-strand resistant spiral spring cable that can be installed on a variety of high-performance CNC controls and is suitable
for …, FANUC, HUST, GSK systems.
Types of CNC Handwheels
Handwheels are divided into three categories based on the type of device and their application:
- Fixed handwheels
- Wired handwheels (remote)
- Wireless handwheels
24CNC experts’ advice to you
Handwheels are one of the most practical tools used in CNC machines, which are also considered the most important hand tools of the operator. These products are selected according to various factors such as the type of control system,
the type of input voltage, the number of pulses, as well as the distance between the control system and the workpiece, etc.
The Iranian Machine Tools Co. (Machine Afzar Iranian) Group specializes in supplying and selling all kinds of handwheels suitable for different types of CNC machines. You can order and receive your desired product at a reasonable price, with a guarantee of authenticity, and in the shortest possible time from all over the country. Also, if you have any questions about how handwheels work or purchasing this product, you can discuss them with the experts of 24CNC Industrial Group.
