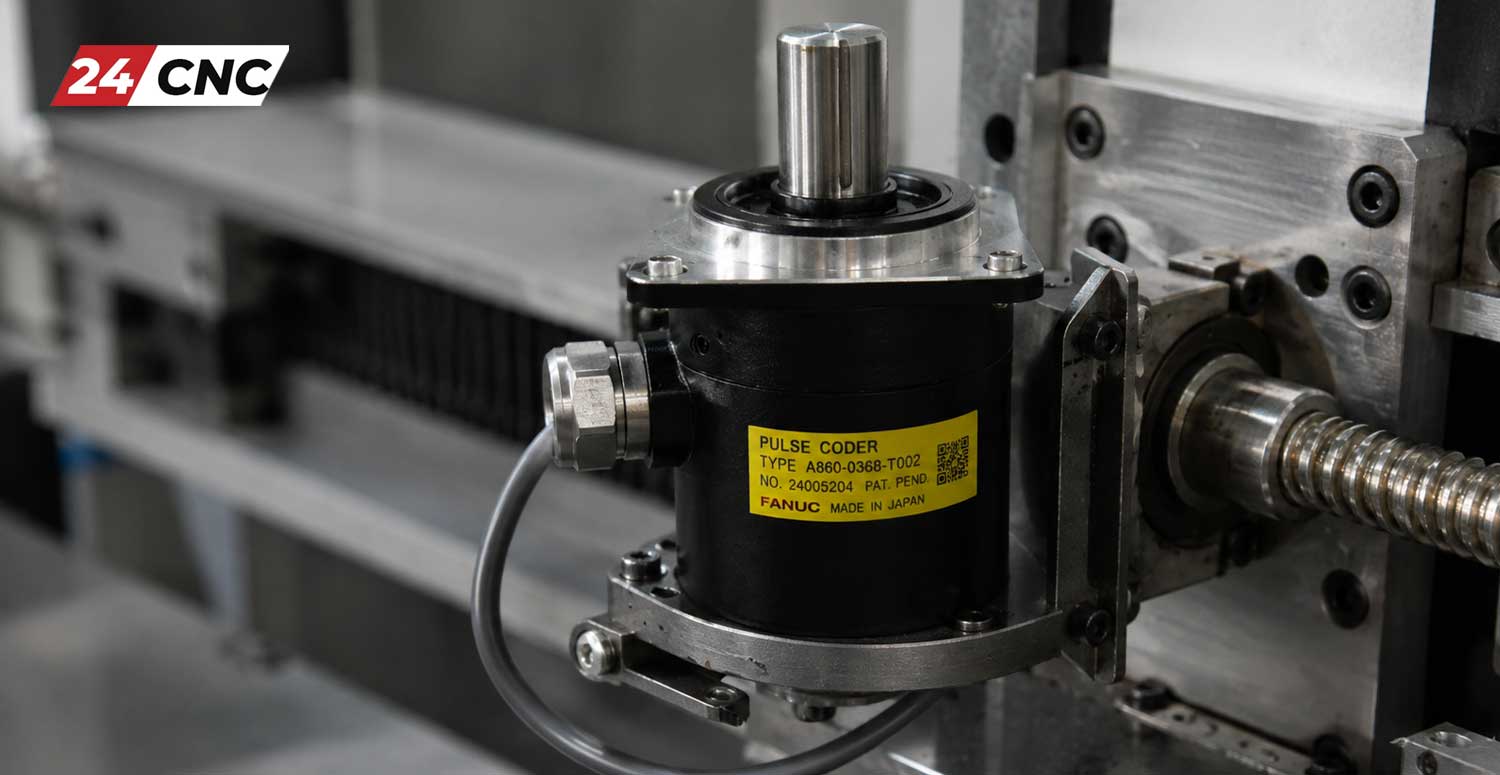

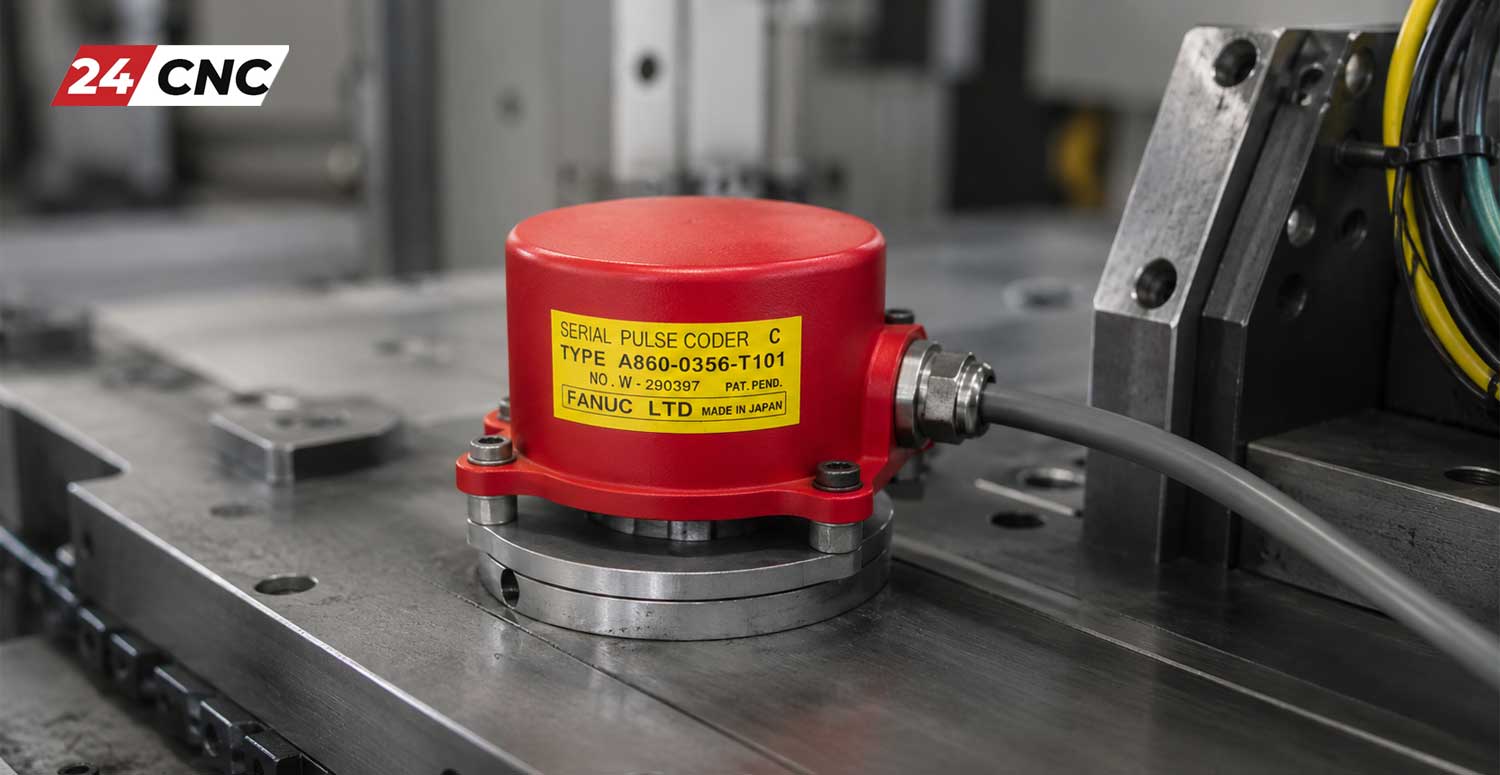

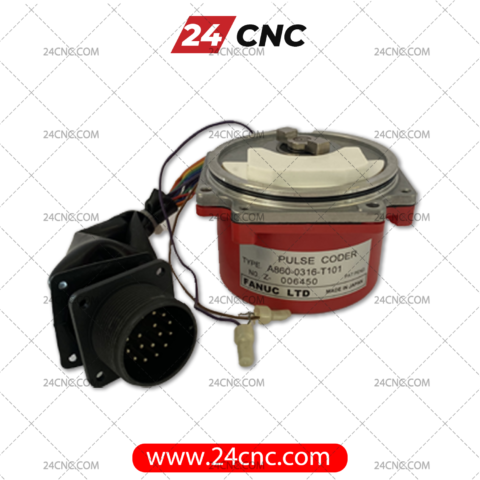

In the highly demanding world of precision manufacturing, CNC machine uptime is critical. The foundation of this precision lies in accurate positional and velocity feedback, which is entirely reliant on high-quality Rotary Encoders. These electro-mechanical devices act as the critical translators between your machine’s mechanical movements and the digital commands of your Control Systems. By converting angular position or motion into analog or digital output signals, rotary encoders ensure that your spindle and axes move precisely to the programmed coordinates.
A failing encoder introduces positioning errors, erratic servo behavior, and catastrophic machine alarms that immediately halt production. At 24cnc.com, we recognize that sourcing the exact replacement component is an emergency. We offer a massive, ready-to-ship inventory of authentic OEM and premium replacement rotary encoders. Whether you need a specific high-resolution absolute encoder for a modern 5-axis mill or a standard incremental unit for a legacy lathe, we have the components you need to restore closed-loop control and get your machinery back online.
Why Buy Rotary Encoders from 24cnc.com?
When your CNC machine is down due to a feedback error, you cannot afford guesswork or shipping delays. Here is why procurement officers and maintenance engineers rely on us:
- Extensive OEM Brand Coverage: We stock encoders from the industry’s most trusted manufacturers. Explore our dedicated categories for Fanuc Encoders, Mitsubishi Encoders, and specialized Tamagawa units.
- Guaranteed Compatibility: Installing the wrong encoder can damage your Servo Motors or drives. We provide exact OEM cross-referencing to guarantee plug-and-play functionality.
- Rapid Worldwide Dispatch: We treat feedback component failures as AOG (Aircraft on Ground) emergencies. Our global logistics network ensures your replacement parts are delivered as fast as possible to minimize downtime.
- Comprehensive Stock: From advanced serial encoders to standard Incremental Encoders, our shelves are fully stocked.
- Technical Engineering Support: Our team can assist you with deciphering complex alarm codes (like Fanuc APC alarms or disconnect errors) to confirm whether you need a new encoder or just replacement Encoder Cables.
Understanding Encoder Technology: Incremental vs. Absolute
Selecting the correct replacement encoder requires a fundamental understanding of how your specific CNC system processes feedback data. There are two primary categories of rotary encoders used in machine tools:
1. Incremental Encoders
Incremental encoders provide position changes immediately, generating a pulse for every fractional increment of rotation. However, they do not inherently know their absolute position upon power-up. CNC machines utilizing incremental encoders must perform a “Zero Return” or “Homing” routine every time the machine is turned on to establish a reference point. They are highly reliable and generally less expensive, making them common in spindle speed monitoring and basic axis control.

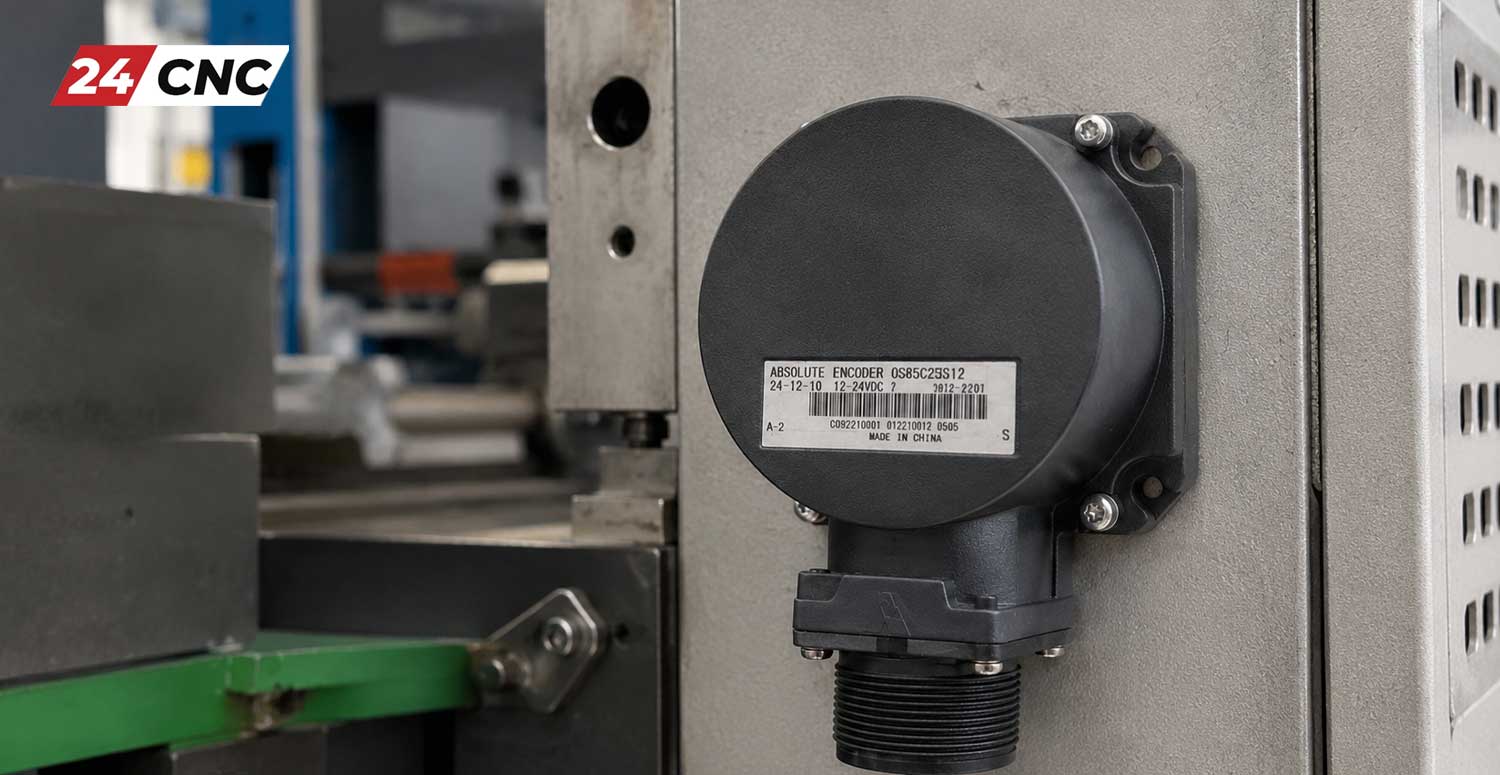

2. Absolute Encoders
Absolute encoders assign a unique digital code to every distinct angle of the shaft. This means the machine controller knows the exact position of the axis the moment power is turned on, completely eliminating the need for homing routines. This is achieved via a backup battery system. Absolute encoders are standard in modern, high-precision machining centers, robotic arms, and complex multi-axis machines where losing position data during a power failure would be disastrous.
Technical Deep Dive: Pulse Frequency Calculation
When retrofitting or verifying an encoder’s compatibility with an axis drive, it is essential to calculate the maximum output frequency to ensure the controller’s high-speed counter can read the signal without dropping pulses. The frequency output is dependent on the machine’s RPM and the encoder’s Pulses Per Revolution (PPR).
Use the following standard formula:
$f = \frac{RPM \times PPR}{60}$
Where:
• $f$ = Signal Frequency in Hertz (Hz)
• $RPM$ = Maximum Revolutions Per Minute of the motor shaft
• $PPR$ = Pulses Per Revolution (resolution of the encoder)
For instance, an incremental encoder with a resolution of $2500$ PPR mounted on a servo motor running at a maximum speed of $3000$ RPM will generate a frequency of $125,000$ Hz ($125$ kHz). You must verify that your amplifier’s receiving hardware can process $125$ kHz signals safely.
Rotary Encoder Comparison & Specifications
| Encoder Type | Power-Up Behavior | Common Output Signals | Typical Application |
|---|---|---|---|
| Incremental (Optical/Magnetic) | Requires Zero Return (Homing) | A, B, Z phases (HTL/TTL/RS422) | Spindles, Legacy Axes, MPG Handwheels |
| Absolute (Single-Turn) | Knows position within one revolution | Serial Data (EnDat, SSI, Fanuc Serial) | Rotary Tables, Tool Changers |
| Absolute (Multi-Turn) | Knows position across multiple revolutions | Serial Data (Requires battery backup) | Primary X, Y, Z Servo Axes |
Frequently Asked Questions (FAQ)
My machine shows a “Battery Low” or “APC” alarm. Do I need a new encoder?
Not necessarily. If you are using an absolute encoder system, this alarm usually indicates that the backup battery is dying. You must replace the battery while the machine is powered on to avoid losing the absolute position data. If the data is lost, you will need to re-reference the axis. If replacing the battery does not clear the fault, the encoder itself may be damaged.
How do I know if the encoder or the cable is faulty?
Encoder alarms (like Fanuc Alarm 300 series or disconnect alarms) are often caused by coolant ingress into the connector or physical wire breaks due to constant flexing in the cable track. Always “ring out” (test continuity) on your Encoder Cables before purchasing a replacement unit.
Can I replace an encoder myself, or do I need a technician?
Replacing a spindle encoder or a standalone rotary encoder is generally straightforward if you follow OEM procedures. However, replacing an encoder built into the back of a servo motor requires extreme care. The encoder must be perfectly aligned to the motor’s magnetic poles (commutation). If aligned incorrectly, the motor will runaway or stall violently.
What warranty do you offer on replacement parts?
We stand behind the quality of our industrial components. Specific warranty terms vary depending on whether the part is factory new, New Old Stock (NOS), or refurbished. Please refer to individual product pages for precise warranty details.
