The stability of your CNC machine relies heavily on the integrity of the connections inside your electrical cabinet. Drive Side connectors are the specialized plugs and sockets that interface directly with your Servo Amplifiers and Spindle Drives. Unlike their motor-side counterparts, these components operate in high-heat cabinet environments where thermal cycling can cause plastic housings to become brittle and locking latches to fail.
At 24cnc.com, we understand that a loose command cable or a burnt power plug can cause frustrating, intermittent “System Error” or “Communication Fault” alarms. We offer a comprehensive range of Drive Side connectors compatible with industry leaders like Fanuc, Mitsubishi, and Siemens, helping you restore a solid electrical connection without replacing the entire drive unit.
Why Replace Your Drive Side Connectors?
Many CNC technicians overlook the connector itself when diagnosing drive faults. However, the interface between the cable and the drive is a common point of failure.
- Thermal Fatigue: Constant heating and cooling of the drive unit can crack older plastic connector shells (such as Honda or AMP types).
- Contact Fretting: Micro-vibrations in the cabinet can wear down the plating on pins, leading to signal loss from the CNC Controller.
- Accidental Damage: Retaining clips often break during maintenance when swapping out boards or fans.
Selection Guide: Identifying the Right Interface

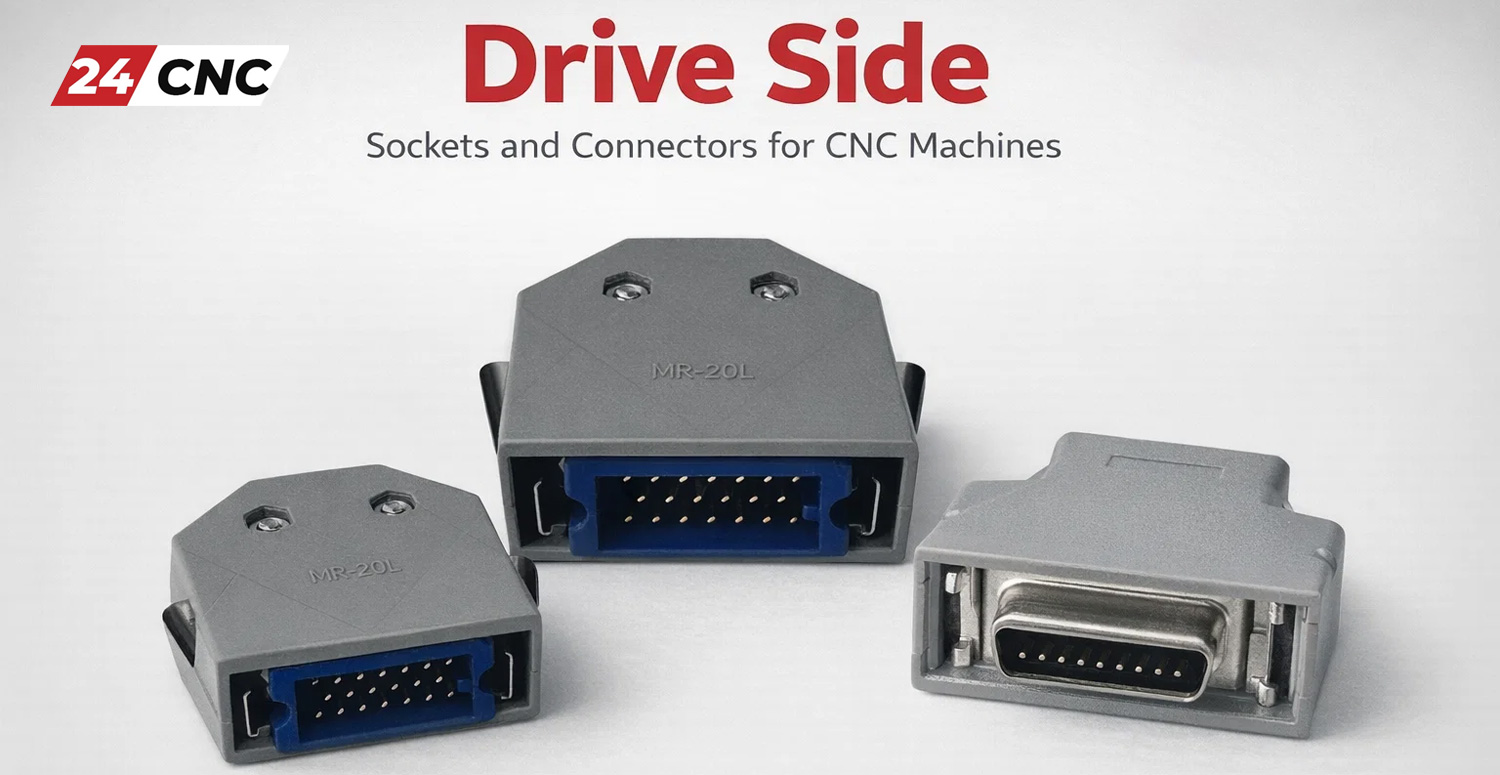

Drive side connectors vary significantly based on the generation of the machine and the specific function (Power vs. Signal). To select the correct part, check the “CN” number printed on your drive (e.g., CN1, CN1A, CN2) and match it to the connector type.
1. Command & Feedback Connectors (Honda / PCR)
Common on Fanuc Alpha and Beta series drives. These are typically blue or gray rectangular connectors (Honda PCR/LCS series). They handle sensitive data from the rotary encoder or the CNC CPU. A poor connection here often results in “Pulse Coder Invalid” alarms.
2. Power Input & Motor Output (Heavy Duty)
These connectors handle high voltage. If you notice discoloration or melting around the plastic housing, immediate replacement is required to prevent fire hazards or damage to the IGBT modules. Ensure you check the mating power cables for heat damage as well.
3. Communication Bus (Optical & FireWire)
Modern drives (like Fanuc FSSB or Mitsubishi SSCNET) use specialized optical or serial connectors. Inspect optical cables carefully; scratches on the connector tip can disrupt communication.
Technical Comparison: Common Drive Side Interfaces
| Connector Style | Typical Brand Match | Primary Function | Check Related Parts |
|---|---|---|---|
| Honda (PCR/MR Series) | Honda Connectors / Fanuc | Encoder Feedback & I/O signals. Robust latching. | Fanuc Drives |
| IEEE 1394 (FireWire style) | Mitsubishi | SSCNET III communication. Very sensitive to dust. | Mitsubishi Drives |
| AMP / TE Connectivity | Siemens / Yaskawa | Power control and 24V supply. Crimp style pins. | Power Supplies |
| Terminal Block / Screw | Older General Purpose | Main AC Input. prone to loosening over time. | Fuses |
Maintenance Tip: Inspecting Your Connections
When replacing a drive side connector, it is highly recommended to inspect the internal cooling fans of the drive unit. Excessive heat buildup inside the drive is the number one killer of plastic connectors. Additionally, if the connector feels loose, check if the receptacle on the main board is damaged; simply replacing the cable plug may not solve a board-level issue.
Frequently Asked Questions (FAQ)
What is the difference between “Drive Side” and “Engine Side”?
Drive Side refers to the connectors that plug into the amplifier/inverter inside the clean electrical cabinet. Engine Side connectors are located on the motor itself and are built to withstand coolant, oil, and vibration.
I need a specific Honda connector for my Fanuc drive. Do you stock it?

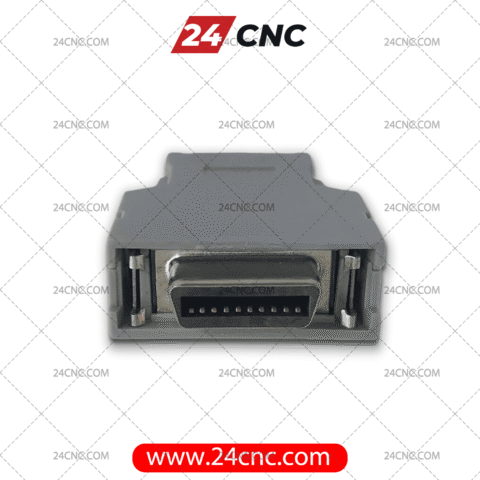

Yes, we stock a wide variety of Honda connectors commonly used in Fanuc Alpha i and Beta i series amplifiers. If you cannot identify the exact part number (e.g., PCR-E20FS), please send us a photo.
Do these connectors require special tools?
Some connectors are solder-type (common for Honda), while others (like AMP/Tyco) require specific crimping tools. We recommend checking the datasheet or asking our support team before installation to ensure a secure connection.
Unsure Which Connector Fits Your Drive?
Don’t risk ordering the wrong plug. Our technical team can identify the correct Drive Side connector based on your amplifier model number.
