In the precision-driven world of industrial machining, the seamless transfer of massive G-code files, system parameters, and SRAM backups is non-negotiable. For decades, machine tool builders have integrated standardized memory interfaces directly into their control panels. This means shop floors rely heavily on specialized CNC card adapters to bridge the communication gap between modern CAD/CAM programming computers and legacy or current-generation machine controllers.

If your operators are experiencing sudden data corruption, DNC drip-feed interruptions, or frustrating “Memory Card Error” alarms on the screen, your adapter is likely the weak link. At 24cnc.com, we supply a premium, industrial-grade selection of PCMCIA, CompactFlash (CF), and SD adapters designed exclusively to withstand the harsh realities of the workshop floor. Whether you are running a legacy Fanuc controller from the 0i, 16i, or 18i series, a Siemens Sinumerik system, or a Mitsubishi Meldas panel, we have the exact OEM-spec replacement adapter you need to minimize machine downtime and maximize production efficiency.

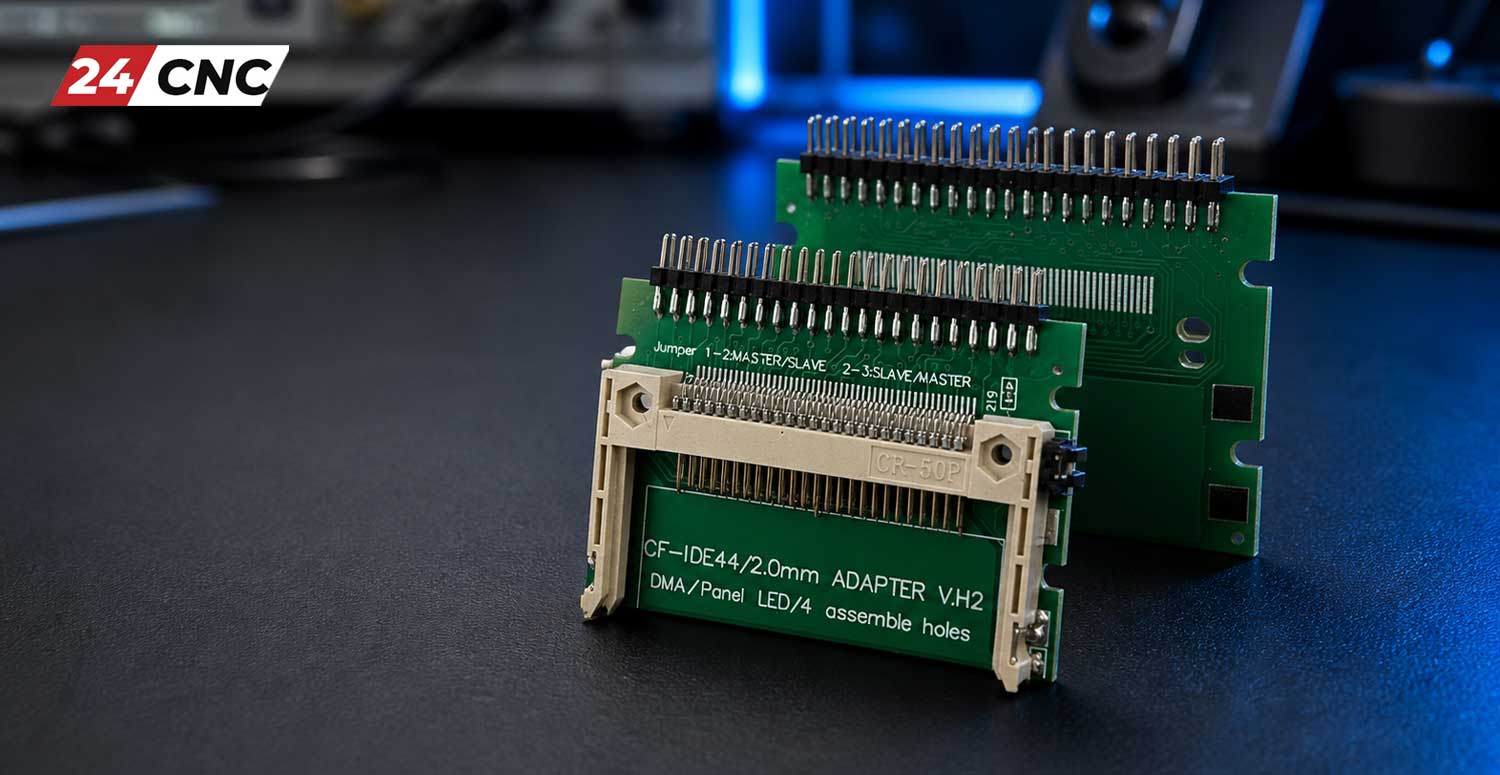

The Critical Role of Industrial Adapters in CNC Automation

Unlike standard office computers, CNC control systems utilize closed architectures built for extreme stability. To update machining programs, load macro variables, or perform system-critical backups, operators typically interface with the CNC main boards via a front-mounted or cabinet-mounted PCMCIA slot. Because standard SRAM PCMCIA memory cards are largely obsolete and prohibitively expensive, the modern industry standard is to utilize a PCMCIA to CF Adapter combined with an industrial-grade CompactFlash (CF) card.

This hardware combination allows programmers to write complex 3D surfacing G-code on their workstations, save it to a CF card via a USB card reader, and plug it seamlessly into the machine tool. However, the adapter itself must be flawlessly manufactured. A CNC adapter dictates the pin-to-pin data handshake. If the internal traces of the adapter are degraded by heat, vibration, or coolant mist, the resulting voltage drop can instantly corrupt the NC program, potentially causing catastrophic machine crashes, broken tooling, and scrapped workpieces.

Why Consumer-Grade Adapters Fail in CNC Machines

Many workshop owners and procurement officers attempt to save a few dollars by purchasing commercial-grade electronics from standard camera or computer retailers. Unfortunately, standard adapters are not built to withstand the rigorous demands of continuous industrial automation. Here is why you should only buy industrial-grade replacement CNC memory parts:

• Vibration Resistance: CNC mills, lathes, and routers produce high-frequency vibrations during heavy roughing cuts. Cheap adapters feature loose pin tolerances, causing micro-disconnects during DNC operations. Our industrial adapters feature precision-molded housings and gold-plated pins for an unshakeable connection.
• Thermal Stability: Factory floors and sealed electrical cabinets get hot. Standard plastics warp, and commercial solder joints can crack under constant thermal cycling. Industrial CNC adapters use high-temperature PCB substrates to maintain data integrity across temperature extremes.
• Voltage Accuracy: Legacy Fanuc and Mitsubishi systems require exact 5V or 3.3V logic signals. Our adapters are strictly tested to ensure they do not overload or under-volt the sensitive input circuits on your machine’s CPU interface.
• Contaminant Immunity: While no open PCMCIA port is entirely waterproof, industrial-grade adapters utilize tighter seam construction, preventing airborne coolant mist and conductive metallic dust from easily shorting out the internal circuit board.

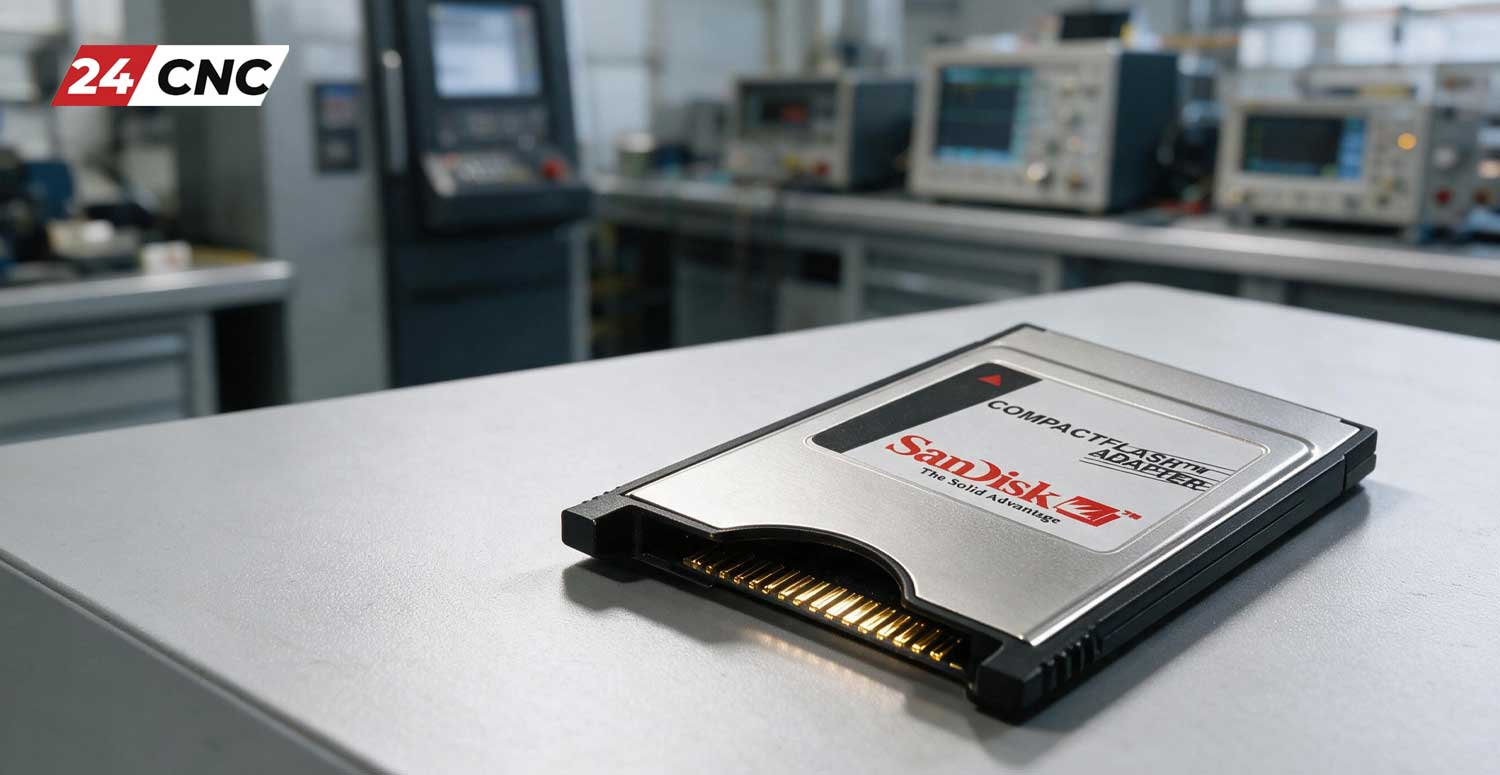

Selection Guide: How to Buy the Right CNC Adapter

Selecting the right CNC card interface is vital for seamless operation. A mismatch can result in frustrating read/write errors or total failure to mount the drive. Follow these professional steps to ensure 100% compatibility with your machine tool:

1. Identify the Controller Brand and Generation

Different controllers have distinct memory architecture limitations. For instance, older Fanuc 16i or 18i controllers utilize older BIOS structures that will not recognize modern high-capacity memory cards. When buying an adapter, you must pair it with a CF card that your controller supports (typically 256MB, 512MB, or a maximum of 2GB for legacy Fanuc). Siemens Sinumerik controllers (like the 840D) may have different formatting requirements (FAT16 vs. FAT32). Always match the adapter to the controller’s specific generational limits.

2. Choose Between PCMCIA, CF, or SD Formats

The industry workhorse remains the PCMCIA Type II to CompactFlash (CF) Adapter. These slide perfectly into the 68-pin PCMCIA slot usually located next to your machine’s LCD screen or keyboard panel. We also offer PCMCIA to SD card adapters for newer workflows, though CF remains the most robust and highly recommended medium for DNC drip-feeding large 3D programs due to thicker, more durable pins.

3. Evaluate Pin Depth and Mechanical Extraction

In many older machines, the physical eject button on the CNC panel is broken or jammed. Removing a flush-mount adapter can be incredibly difficult in this scenario. We provide specialized adapters with distinct grip ridges and extended lips to ensure easy manual extraction. This prevents operators from using pliers and accidentally destroying the expensive front-panel interface or the LCD bezel.

Technical Comparison: CNC Memory Adapters

Compare our top-selling adapter form factors below to determine the best fit for your manufacturing setup and controller brand.

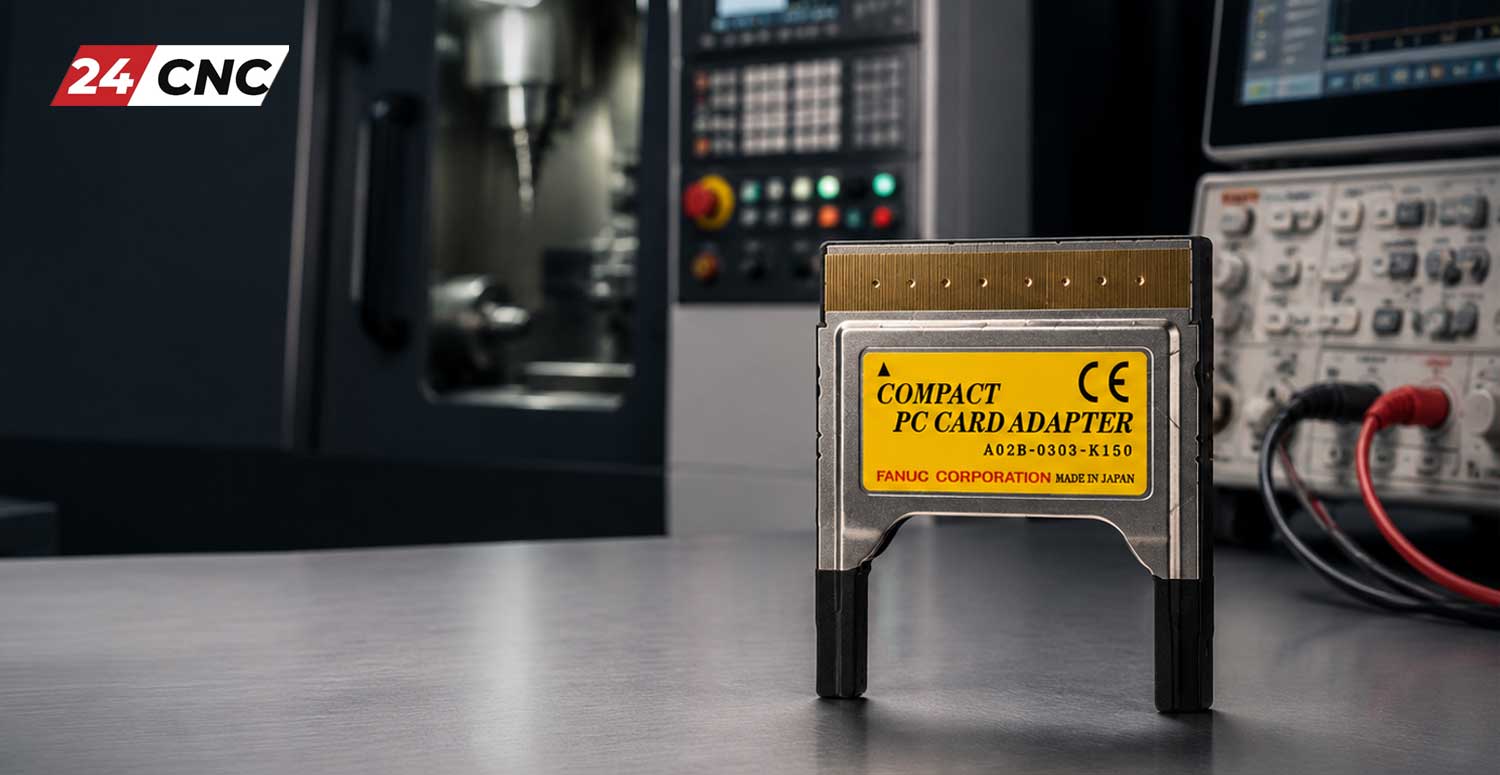

Why Buy Your CNC Replacement Parts from 24cnc.com?

We are not just a spare parts warehouse; we are seasoned CNC technicians and automation experts. We understand that an inexpensive, faulty adapter can cost you thousands of dollars in scrapped parts and machine downtime. When you choose 24cnc, you are guaranteed:

• Verified Compatibility: Every adapter design we sell is bench-tested against actual industrial controllers, from Fanuc Series 0 to modern Siemens systems, ensuring plug-and-play functionality.
• Fast Global Shipping: We understand the absolute urgency of “Machine Down” (AOG/VOG) situations. We partner with premier global logistics networks to get your critical memory parts to your facility as quickly as possible.
• Comprehensive Inventory: Beyond memory adapters, we stock thousands of critical automation components. Whether you need servo motors, rotary encoders, robust power supplies, or delicate optical cables, you can consolidate your entire procurement process with one trusted industry authority.
