In precision machining, the operator’s physical connection to the machine’s movement is facilitated by the Manual Pulse Generator (MPG). However, the critical bridge between this handheld device and the CNC controller is the handwheel cable. Subject to constant stretching, twisting, chemical exposure, and metallic dust, a CNC control cable is one of the most vulnerable mechanical-electrical components on the shop floor. When a handwheel cable degrades, it introduces severe operational risks, from intermittent axis jumping to complete communication failure between the MPG and the servo drives.
At 24cnc.com, we specialize in high-durability, industrial-grade replacement handwheel cables designed to withstand the harsh environments of modern CNC workshops. Whether you need a highly flexible coiled spiral cable for a remote handwheel or a heavily shielded straight run to connect a panel-mounted MPG unit, our inventory ensures you find the exact OEM-equivalent part to eliminate downtime and restore flawless machine control.
The Engineering of a Reliable Handwheel Cable
A handwheel cable is not a simple wire; it is a complex data transmission conduit. Standard MPGs utilize quadrature encoders (typically 100 Pulses Per Revolution, or PPR) to send axis positioning data via A and B phase signals to the control system. The signal frequency transmitted through these cables can be modeled by the equation:
Where $f$ is the frequency in Hertz, $RPM$ is the rotational speed of the dial, and $PPR$ is the encoder resolution. Because these are low-voltage, high-frequency digital signals, they are extremely susceptible to Electromagnetic Interference (EMI) generated by nearby amplifiers and inverters. High-quality replacement handwheel cables must incorporate dense tinned copper braiding and aluminum foil shielding to protect signal integrity. Without this shielding, induced electrical noise can cause the machine to register false pulses, resulting in dangerous, unintended tool movements that can crash the machine or ruin expensive workpieces.
Key Features of Our CNC Handwheel Cables

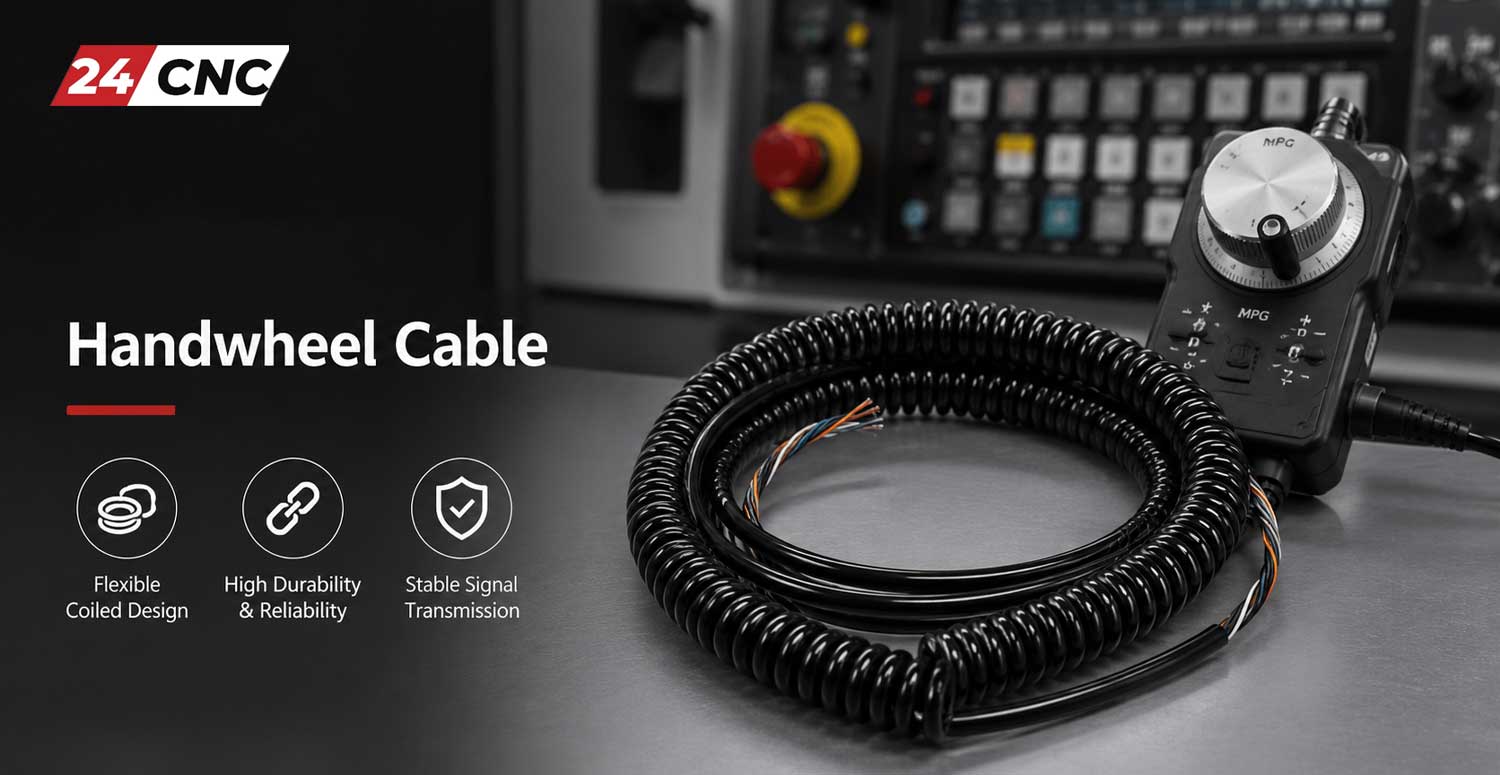

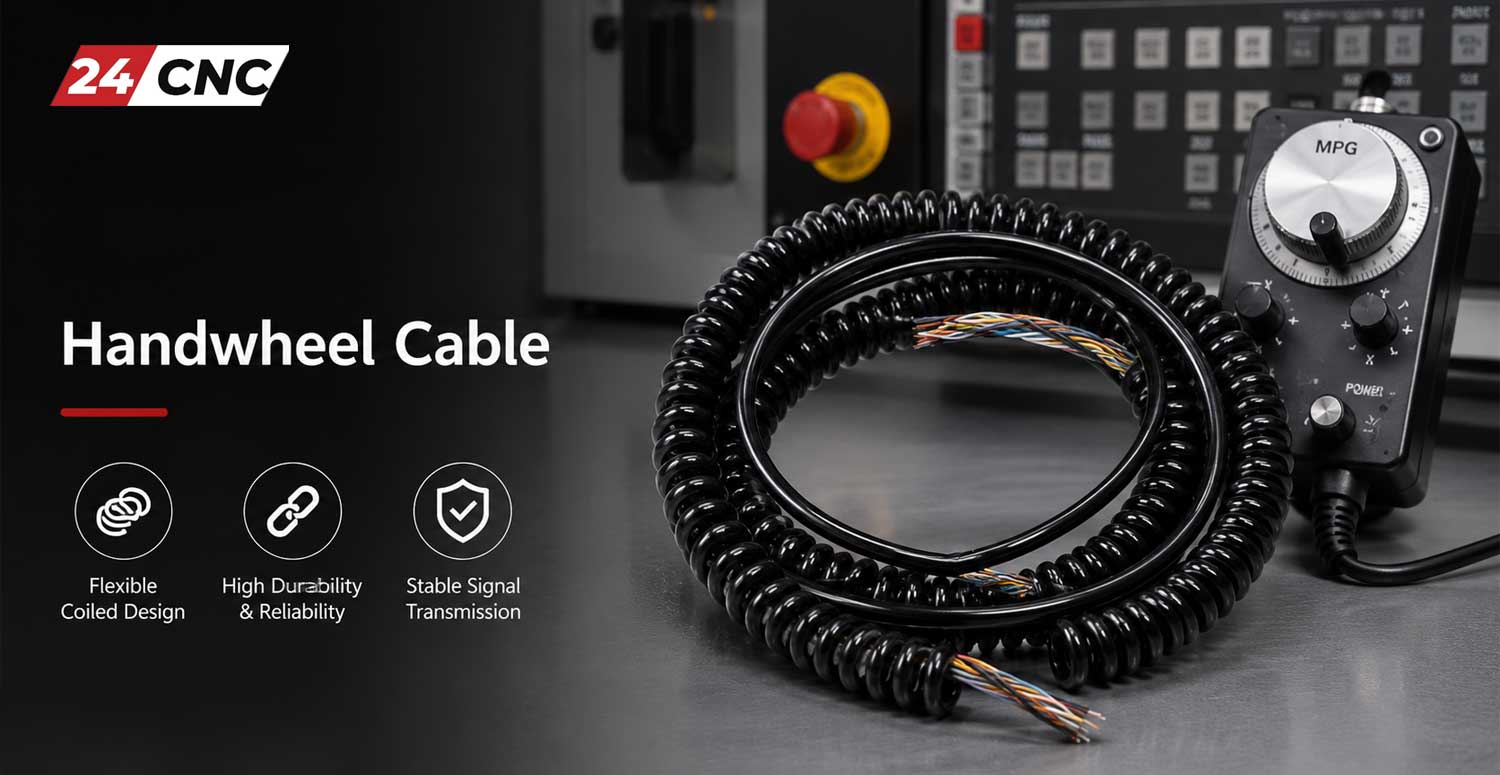

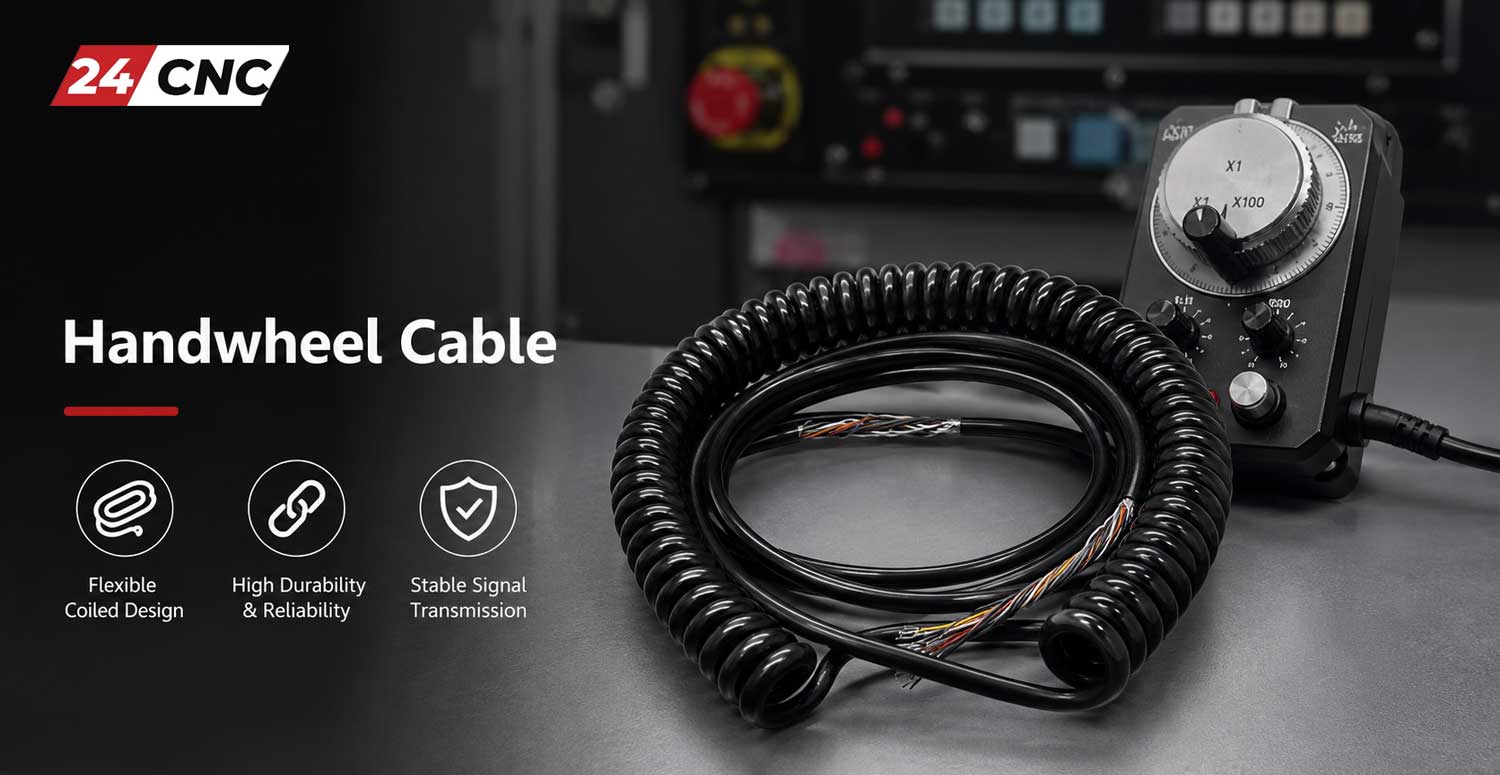

- High Flex-Life Polyurethane (PUR) Jackets: Unlike standard PVC, our PUR coiled cables offer exceptional memory retention, allowing them to stretch repeatedly without sagging or breaking internal cores. They are highly resistant to cutting oils, coolants, and abrasion.
- Advanced EMI/RFI Shielding: Utilizing dual-layer shielding techniques, our cables prevent cross-talk and block external noise from high-voltage power cables routed nearby.
- Multi-Core Configurations: We stock 17-core, 19-core, and 21-core configurations to support all standard MPG functions, including axis selection (X, Y, Z, 4th, 5th, 6th), multiplication selectors (x1, x10, x100), emergency stop circuits, and LED indicators.
- Pre-Terminated Connector Options: Available as bare-wire pigtails for custom soldering, or pre-terminated with heavy-duty sockets and connectors compatible with brands like Honda and DB/D-Sub standards.
Selection Guide: Finding the Right Cable
Selecting the incorrect handwheel cable can lead to incompatible wiring or premature failure. Follow these steps to ensure you purchase the correct replacement for your machine:
- Determine Core Count: Count the number of active pins on your current MPG handwheel selector switches and encoder. Standard remote pendants require at least 17 cores (Power, GND, A, B, A-, B-, E-Stop x2, Axis x4, Multiplier x3, Enable x2).
- Identify Controller Compatibility: Different controllers use different voltage levels and connector pinouts. Verify if your machine utilizes a Fanuc controller (often requiring 5VDC or 12VDC) or a Siemens controller. Ensure the cable’s wire gauge supports the required current over the extended length without voltage drop ($V_d = I \times R$).
- Measure Working Length: For coiled cables, differentiate between the “retracted” length and the “extended” working length. Purchasing a cable that is too short puts extreme mechanical stress on the solder joints at the pendant and the machine panel.
Technical Comparison: Handwheel Cable Types
| Cable Type | Core Configuration | Jacket Material | Ideal Application |
|---|---|---|---|
| Standard Coiled (Spiral) | 17-Core / 19-Core | Polyurethane (PUR) | Remote handheld MPGs for standard 3-axis to 4-axis milling machines and lathes. |
| High-Density Coiled | 21-Core / 25-Core | PUR + Kevlar Strength Member | Advanced 5-axis machines, custom pendants with LCD interfaces or dual E-stop circuits. |
| Straight Shielded Wire | 15-Core to 21-Core | PVC / Halogen-Free | Panel-mounted handwheels wired directly to I/O modules inside the control cabinet. |
Why Choose 24cnc.com for CNC Wiring Solutions?
Wiring faults account for a vast percentage of CNC troubleshooting time. By sourcing your handwheel cables from 24cnc.com, you are investing in reliability. We do not sell brittle, commercial-grade wire. Every cable in our inventory is strictly vetted for industrial use, boasting superior flex-cycles and oil resistance. Furthermore, our extensive inventory means we have parts ready to ship globally, ensuring your machine downtime is kept to an absolute minimum.
Frequently Asked Questions (FAQ)
1. My CNC axis is moving erratically when I turn the handwheel. Is it the cable or the encoder?
Erratic movement or “jumping” axes are classic symptoms of a broken wire core inside the handwheel cable or damaged shielding allowing EMI interference. Use a multimeter to perform a continuity test on all cores while gently bending the cable. If continuity drops, the cable must be replaced. If the cable tests perfect, the issue may lie within the MPG’s internal rotary encoder optical disk.
2. Do you sell pre-soldered handwheel cables for specific machine brands?
Yes, we offer both bare-wire cables for custom integration and pre-terminated assemblies fitted with appropriate Honda, DB, or Amphenol connectors for direct plug-and-play operation with leading brands like Fanuc, Mitsubishi, and Siemens.
3. What does “PUR” mean in cable specifications?
PUR stands for Polyurethane. It is a premium thermoplastic elastomer used for cable jacketing. PUR is vastly superior to PVC in CNC applications due to its immense mechanical tear resistance, extreme flexibility (even at cold temperatures), and inherent resistance to aggressive machine tool coolants and synthetic lubricants.
4. What is the maximum safe length for an MPG cable?
While coiled cables can stretch significantly, extending unbuffered 5V TTL encoder signals beyond 10-15 meters can lead to voltage drop and signal degradation. If you require longer runs, ensure you select heavy-gauge cabling or implement line-driver (differential) signals (A, A-, B, B-) rather than open-collector signals.
5. Do you ship replacement cables internationally?
Yes. 24cnc.com partners with major logistics providers to offer fast, secure global shipping for all our CNC spare parts. We provide tracking details immediately upon dispatch so you can plan your maintenance schedule.
Experiencing Signal Loss or Broken MPG Wires?
Don’t risk a machine crash due to a faulty connection. Browse our selection of premium replacement handwheel cables below, or reach out to our engineering team to cross-reference the exact cable specification for your CNC pendant.
