Operating a profitable machine shop relies on one absolute truth: if the spindle isn’t turning, you aren’t making money. Unexpected downtime is the quiet killer of manufacturing profitability. The most effective way to ensure your shop operates at peak efficiency, maintains tight tolerances, and protects its bottom line is by implementing a strict, comprehensive CNC Machine Maintenance Checklist covering daily, weekly, and monthly tasks.

Every modern CNC machine—whether it is a 3-axis mill, a complex 5-axis trunnion, or a high-speed turning center—is a complex integration of mechanical hardware, hydraulic systems, and sensitive electronics. Understanding the essential components of your CNC machine is the first step, but actively maintaining them is what separates successful businesses from struggling ones. When tolerances are measured in microns, even a microscopic layer of rust or a slightly clogged filter can lead to scrapped parts and blown profit margins.

In this comprehensive guide, we will break down the exact maintenance procedures required to keep your machinery in flawless condition, extend its lifespan by thousands of hours, and drastically reduce the need for emergency repairs.

Why Preventive Maintenance is the Ultimate ROI Generator

Many shop owners view maintenance as a chore that takes operators away from producing billable parts. This is a critical mathematical error. Reactive maintenance (fixing things only when they break) is exponentially more expensive than preventive maintenance. Furthermore, poorly maintained machines lose their accuracy, leading to a higher scrap rate and damaged reputations with clients.

To put this into perspective, we can calculate the return on investment (ROI) for preventive maintenance using a simple formula:

$$ROI = \frac{Estimated Downtime Loss – Preventive Maintenance Cost}{Preventive Maintenance Cost} \times 100$$

If a broken ball screw causes 3 days of downtime resulting in $\$6,000$ in lost revenue and a $\$4,000$ emergency repair bill, your total loss is $\$10,000$. If spending $15$ minutes a day and $\$50$ a month on proper lubrication could have prevented this, the mathematical justification for a strict maintenance schedule becomes undeniable.

Additionally, tracking your Mean Time Between Failures (MTBF) helps quantify the health of your equipment:

$$MTBF = \frac{Total Operational Time}{Number of Failures}$$

By strictly following a daily, weekly, and monthly checklist, you push your MTBF higher, ensuring predictable production schedules and reliable delivery times for your customers.

Daily CNC Machine Maintenance Checklist

Daily tasks should be performed by the machine operator either at the beginning of their shift or during the machine shutdown procedure. These checks take less than 15 minutes but are the frontline defense against catastrophic failures. A well-trained operator uses their eyes, ears, and hands to gauge the health of the machine daily.

• Check Lube Levels (Way Lube and Pneumatic Oil): Verify that the way lube (spindle oil, hydraulic oil) is at the appropriate level. Running a machine dry will destroy the linear guideways and ball screws in a matter of hours. Ensure the pneumatic lubricator cup has oil to keep air valves shifting smoothly.
• Clean Chips from the Enclosure and Way Covers: Do not let chips build up over telescopic way covers. Hot chips can melt through wiper seals, allowing coolant and fine metal dust to enter the ball screw housing. Clear the table and fixtures completely using a washdown hose rather than just an air gun, which can blast chips past seals.
• Manage Coolant Health (Concentration and Tramp Oil): Use a refractometer to ensure your coolant is mixed to the manufacturer’s recommended Brix percentage (usually between $6\%$ and $10\%$). Improper coolant levels lead to premature tool wear and rust on the machine table. Additionally, run your oil skimmer daily to remove “tramp oil” (way lube that drips into the coolant tank) to prevent anaerobic bacterial growth and foul odors.
• Wipe Down the Spindle Taper and Tool Holders: Use a dedicated spindle taper wiper to remove any oil, coolant, or micro-chips. A dirty taper causes tool runout, which degrades part finish, breaks micro-endmills, and damages the delicate spindle bearings.
• Inspect the Control Panel and HMI: Ensure the LCD screen and the physical keyboards and keypads are free of heavy coolant residue. Aggressive cutting fluids can degrade rubber membranes over time.
• Empty the Chip Conveyor / Bin: Prevent overflow, which can back up into the machine casting, jam the conveyor motor, and block coolant return drains causing the tank to run dry and cavitate the high-pressure pump.
• Listen to the Machine: Run a warm-up spindle cycle. Listen for unusual grinding, whining, or vibration. Early detection of spindle bearing failure often starts as a faint harmonic whine.

Weekly CNC Machine Maintenance Checklist

Weekly tasks require a slightly deeper inspection. These are best performed at the end of the week before shutting the shop down for the weekend, ensuring the machine sits clean and protected over non-operational days.

• Clean or Replace Cabinet Filters: The electrical cabinet houses your drives, power supplies, and main control boards. The cooling fans pull air through filters to keep these components from overheating. Clogged filters are the number one cause of drive failures. Vacuum them out or wash them if they are reusable polyurethane foam.
• Check Pneumatic Systems and Air Pressure: Verify that your incoming shop air is clean, dry, and regulated to the correct PSI (typically around $85-90$ PSI depending on the machine). Empty the water trap on the machine’s air regulator. Moisture in the pneumatic lines will rust the internal directional valves and cause automatic tool change (ATC) failures.
• Inspect Way Covers and Wipers: Fully extend the machine axes (X, Y, and Z) and visually inspect the telescopic covers. Look for dents, tearing rubber wipers, or sluggish movement. If the covers bind, they need immediate repair before they crush under rapid rapid-traverse speeds.
• Clean and Inspect the Tool Changer (ATC): Remove any chips or debris from the automatic tool changer carousel. Clean the tool holder gripping mechanisms (fingers or pots). Inspect the pull studs (retention knobs) on your tool holders for fretting or excessive wear. A snapped pull stud during a tool change is a catastrophic event.
• Inspect the Handwheel (MPG): The Manual Pulse Generator is handled constantly. Check its cable for any fraying, exposed shielding, or sharp kinks that could lead to intermittent connection issues, which might cause axes to jump unexpectedly during manual setup.
• Check Spindle Chiller Fluid: If your machine is equipped with a high-speed spindle, it likely has a dedicated chiller unit. Check the fluid level and ensure the radiator fins are blown clear of shop dust.

Monthly and Bi-Annual CNC Machine Maintenance Tasks

Monthly and bi-annual maintenance should be scheduled downtime. This is when shop managers or dedicated maintenance technicians dive into the electrical, mechanical, and structural health of the machine. This level of maintenance is what pushes a machine’s lifespan past the 15-year mark.

Electrical Cabinet and Control System Inspection

Power off the machine at the main breaker and perform a visual inspection of the main electrical cabinet. Look for any scorch marks, swollen capacitors on the power supply units, or loose terminal block connections (vibration loosens screws over time). Heat is the enemy of electronics. Verify that the drive controller fans mounted directly to your servo amplifiers and spindle drives are spinning freely and not making grinding noises.

Ensure that you have recent backups of your machine parameters, macros, and pitch error compensation tables on an external USB or secure server. Whether you run a Fanuc controller, a Siemens controller, or Mitsubishi, a dead CMOS battery can wipe your machine’s SRAM memory, turning it into an expensive paperweight until parameters are painstakingly manually restored. Batteries should be replaced annually with the machine powered ON.

Mechanical, Hydraulic, and Geometric Checks

Over time, the physical geometry of your machine can drift due to minor crashes, heavy roughing cuts, or simply the concrete foundation settling.

• Check Machine Level: Use a precision machinist level (accurate to $0.0005$ inches per foot) to verify the machine casting has not twisted. An unlevel machine cannot interpolate perfect circles and will suffer from accelerated wear on the linear guides. Adjust the leveling feet as necessary.
• Hydraulic System Maintenance: For CNC lathes with hydraulic chucks and tailstocks, check the hydraulic oil condition. If it is milky, water has contaminated the system. Replace the inline hydraulic filters to maintain clamping pressure.
• Inspect Belts and Pulleys: Check the tension and condition of spindle drive belts and axis servo belts. Fraying or loose belts cause backlash and vibration that transfers directly into your machined parts, destroying surface finish.
• Encoder Verification: If you notice dimensional drift in your parts or following errors on the screen, your feedback system may be failing. Understanding how to troubleshoot inaccurate readings from a rotary encoder is vital. Check the encoder cables for ingress of coolant, which can short out the optical sensor signal.
• Ball Bar Testing (Bi-Annual): Hire a technician or use your own equipment to perform a Renishaw ball bar test. This maps the exact geometry of the machine during circular interpolation, revealing hidden backlash, servo mismatch, and scale errors.

Seasonal and Predictive Maintenance Considerations

Beyond the standard calendar checklist, advanced machine shops adapt their maintenance to the seasons and adopt modern predictive techniques.

Seasonal Shifts: In the winter, shop temperatures drop, causing hydraulic fluids and way lubes to thicken. Allow machines longer warm-up cycles before running at $100\%$ rapid speeds to prevent blowing way lube lines. In the summer, ambient heat combined with cutting heat puts immense strain on electrical cabinets. Ensure shop ventilation is adequate and chiller set points are tracking ambient temperatures properly to prevent spindle thermal growth.

Predictive Maintenance (Industry 4.0): Moving beyond preventive maintenance, predictive maintenance utilizes sensors to predict failures *before* they happen. Installing vibration sensors on spindle housings can detect degrading bearings months before they fail. Using a thermal imaging camera on the electrical cabinet during a heavy cut can identify failing contactors or IGBT modules that are generating excess heat due to internal resistance.

Technical Comparison: Proactive Maintenance vs. Reactive Repair

To further illustrate the importance of these daily, weekly, and monthly checklists, let’s look at a technical comparison of what happens when you maintain a component versus letting it run to failure.

Sourcing Reliable Spares for Routine Maintenance

A crucial part of any maintenance checklist is having the right parts on hand before you need them. Treating electronic components like consumable end-mills is a strategic advantage. You should always maintain a small, climate-controlled stock of essential spares.

For shops running industry-standard equipment, knowing exactly where to buy high-quality CNC parts online minimizes panic during a breakdown. Keep extra cabinet fans, a spare power supply, replacement limit sensors, and a backup MPG handwheel in your tool crib. When a minor component fails during a late-night shift, your operator can swap it out in minutes rather than halting production until the morning. Establish a relationship with a reliable supplier so that when major components like servos or drives fail, you have a direct line to fast replacements.

Conclusion: Build a Culture of Total Productive Maintenance (TPM)

Implementing a strict CNC machine maintenance checklist is not just about turning wrenches and topping off oil; it is about building a culture of accountability within your machine shop. This concept is often referred to as Total Productive Maintenance (TPM). In a TPM environment, machine operators are empowered to take ownership of their equipment. They are trained to perform daily and weekly checks, freeing up dedicated maintenance staff to focus on complex diagnostics, monthly alignments, and strategic upgrades.

When operators take pride in the cleanliness and functionality of their machines, scrap rates plummet, tool life extends, and overall profitability soars. A clean machine makes it incredibly easy to spot an oil leak, a loose bolt, or a fraying wire before it becomes a disaster. Print out your daily, weekly, and monthly checklists, place them in protective plastic sleeves, attach them to clipboards on every single machine in your facility, and make them a strict, non-negotiable part of your daily production process.

The modern manufacturing world is entirely dominated by Computer Numerical Control (CNC) technology, an industrial revolution that brought unprecedented precision, absolute repeatability, and mass-scale efficiency to the shop floor. For any manufacturing engineer, machinist, procurement specialist, or workshop owner, understanding the core machinery at a granular level is paramount to maintaining a competitive edge. At the very center of this complex ecosystem are two primary workhorses: the CNC Mill (Machining Center) and the CNC Lathe (Turning Center). While both utilize highly programmable automation to subtract material and shape raw billets into finished parts, their fundamental architectures, kinematics, and primary applications are distinctly different.

In this comprehensive, 1500+ word guide, we will deeply dissect the anatomy of these complex machines, comparing the main components of a CNC mill versus a CNC lathe. By understanding the mechanical, hydraulic, and electronic building blocks, you can optimize your machining processes, calculate better return on investment (ROI) for equipment purchases, and troubleshoot complex maintenance issues far more effectively. For a broader, higher-level overview of all machine types across the industry, you can also review our complete breakdown of the essential components of a CNC machine.

Core Architecture and Kinematics: The Fundamental Difference

The primary, most defining distinction between milling and turning lies in the kinematic relationship between the cutting tool and the workpiece. This relationship dictates the entire structural design of the machine.

• CNC Mill (Cartesian Kinematics): In a milling operation, the workpiece generally remains stationary on a worktable (or moves slowly along linear/rotary axes for positioning), while a multi-fluted cutting tool rotates at extremely high speeds. Mills map primarily to a standard Cartesian coordinate system $(X, Y, Z)$. They are explicitly designed to machine prismatic parts—components with flat surfaces, deep slots, intricate pockets, and complex 3D surface geometries.
• CNC Lathe (Cylindrical Kinematics): Conversely, in a turning operation, the raw material (the workpiece) is gripped tightly and rotates at high RPMs, while a single-point cutting tool remains rotationally stationary, translating linearly along specific axes to shave off material. Lathes map better to cylindrical coordinates $(r, \theta, z)$ but are programmed in $X$ (diameter) and $Z$ (length). They are perfectly suited for symmetrical, cylindrical parts such as drive shafts, bearing rings, flanges, and threaded cylinders.

The Detailed Anatomy of a CNC Mill

A CNC milling machine (often referred to as a Vertical Machining Center or VMC, or Horizontal Machining Center or HMC) is built for massive structural rigidity and dynamic multi-axis interpolation. To achieve this, it relies on several specialized, heavy-duty components designed to handle varying lateral and axial cutting loads.

The Spindle Assembly

The spindle is the absolute heart of the milling machine. It houses the powerful AC motor system that drives the rotation of the cutting tool. The engineering within a spindle is highly advanced. High-speed spindles used for aluminum or mold-making can exceed $20,000$ to $30,000$ RPM, relying on ultra-precision ceramic angular contact bearings to prevent thermal expansion. Alternatively, high-torque spindles geared for cutting Inconel or titanium operate at lower speeds (e.g., $4,000$ to $8,000$ RPM) but deliver massive cutting forces. The spindle includes a precision ground taper—such as CAT40, BT40, or the highly rigid HSK-63—to securely hold tool holders via a hydraulic drawbar system. Many modern spindles also feature Coolant Through Spindle (CTS) technology, pumping high-pressure coolant (up to $1,000$ PSI) directly through the tool to evacuate chips from deep holes.

The Worktable, Saddles, and Linear Axes

The worktable is a rigid, perfectly flat cast-iron surface (typically featuring T-slots) where the raw material, vises, or custom fixtures are clamped securely. In a standard 3-axis VMC, the kinematic motion is divided across the linear axes:

• $X$-Axis: Moves the table left and right longitudinally.
• $Y$-Axis: Moves the saddle (which carries the table) forward and backward, or moves the entire spindle column, depending on whether it is a C-frame or moving-column design.
• $Z$-Axis: Moves the heavy spindle head up and down vertically.

Advanced mills incorporate rotary axes, specifically the $A, B$, or $C$ axes, to achieve 4-axis indexing or full 5-axis simultaneous machining. This allows the cutting tool to approach the workpiece from practically any angle, essential for aerospace impellers or medical implants.

Automatic Tool Changer (ATC)

To maximize completely unattended “lights-out” efficiency, CNC mills are equipped with an Automatic Tool Changer (ATC). Depending on the machine size, ATCs can be umbrella-style (typically holding 10-20 tools) or high-speed twin-arm cam-driven chain magazines (holding anywhere from 30 to over 120 tools). The ATC automatically swaps tools (end mills, heavy face mills, tiny taps) into the spindle mid-program based on the G-code instructions. A highly tuned swing-arm ATC can perform a chip-to-chip tool change in less than $2.5$ seconds.

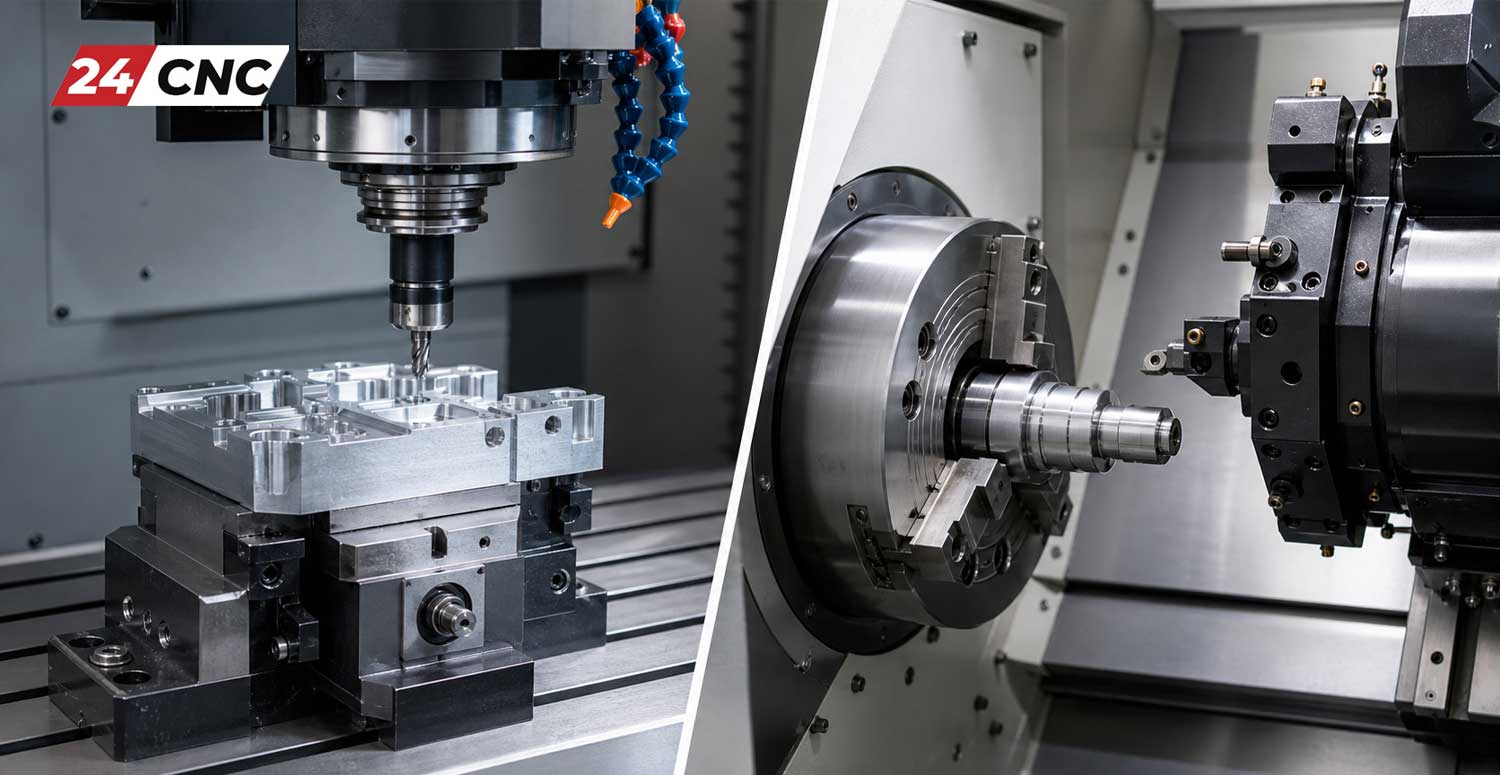

The Detailed Anatomy of a CNC Lathe (Turning Center)

CNC lathes focus heavily on rotational stability, raw torque, and turning dynamics. Their components are structurally designed to grip cylindrical stock tightly and resist heavy, continuous cutting pressure applied along a single primary axis.

The Headstock, Main Spindle, and Workholding

Unlike a mill where the spindle holds the tool, the lathe spindle is housed within the massive, cast-iron headstock and holds the workpiece itself. Attached to the spindle nose is the workholding device. The most common is the 3-jaw hydraulic chuck, which uses a hydraulic actuator at the rear of the spindle to pull a drawtube, closing the hardened jaws around the raw billet with thousands of pounds of clamping force. Collet chucks are also widely used for smaller, high-precision bar stock. The main spindle on a lathe must deliver tremendous low-end torque, especially when facing or turning large diameter steel billets, as the cutting speed requires constant surface speed calculations (CSS) by the controller.

The Tool Turret (and Live Tooling)

Instead of an ATC carousel, the vast majority of CNC lathes utilize a highly robust, indexing tool turret. This heavy, multi-sided block (often holding 10, 12, or 24 tools) holds various turning, facing, grooving, and threading tools. When a tool change is commanded ($T0101, T0202$), a servo motor rapidly unclamps, indexes (rotates), and re-clamps the turret using a high-precision Curvic coupling to bring the correct cutting tool into the active cutting position. Advanced turrets utilize BMT or VDI tooling standards and feature “live tooling.” Live tools are essentially miniature milling spindles driven by a motor inside the turret, allowing the lathe to drill cross-holes, mill flats, or tap threads off-center while the main chuck precisely locks the spindle using a $C$-axis.

The Slant Bed, Saddle, and Tailstock

Modern CNC lathes typically utilize a “slant bed” design (often cast at a 30, 45, or 60-degree angle). This heavy Meehanite cast-iron foundation provides extreme rigidity, better ergonomics for the operator, and crucially, allows hot metal chips and coolant to fall away from the linear guideways effortlessly. The saddle rides along these bed ways on the $Z$-axis (parallel to the workpiece), carrying the cross-slide which moves along the $X$-axis (perpendicular to the workpiece to control the turning diameter).

For long workpieces where the length-to-diameter ratio exceeds standard limits (e.g., $L/D > 3$), a tailstock is absolutely necessary. Sitting opposite the headstock, the tailstock extends a hydraulic quill with a Morse Taper “live center” to firmly support the far end of the spinning shaft, preventing dangerous part deflection and harmonic chatter during heavy roughing cuts.

Shared Vital Components in Both CNC Systems

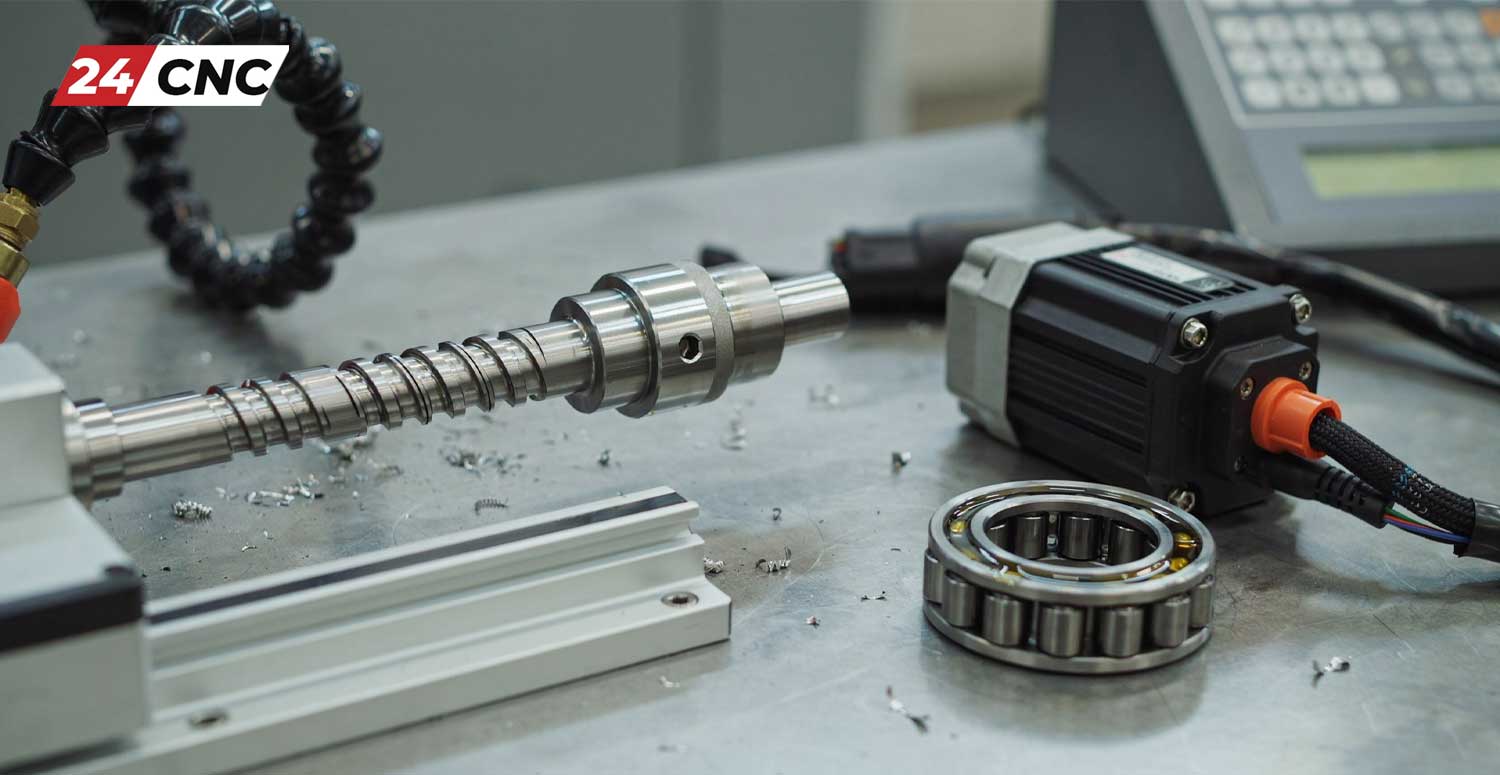

While the mechanical cutting architectures and coordinate systems differ vastly, the electronic hardware and control software powering both CNC mills and lathes share a common, highly sophisticated DNA.

The CNC Control System (The Brains of the Operation)

The CNC control system is the undisputed brain of the machine tool. It reads the alphanumeric part program (generated by CAM software) and translates it into synchronized electrical signals that command the servo amplifiers and motors. A highly popular, industry-standard example is the Fanuc controller, globally renowned for its multi-decade reliability, macro programming capabilities, and microsecond processing speeds. The controller continuously calculates complex interpolations, manages tool wear offsets, and executes safety logic via the PLC. If you are deeply curious about how this specific alphanumeric translation works under the hood, read our comprehensive guide on how a CNC controller interprets G-code and M-code.

Servo Motors and Precision Ball Screws

To accurately move the exceptionally heavy cast iron axes (which can weigh thousands of pounds) with microscopic precision, CNC machines completely rely on high-torque servo motors directly coupled to precision ground ball screws. The servo motors provide the rapid rotational force. The mathematical relationship governing the linear force generated is roughly $T = \frac{F \cdot P}{2 \pi \eta}$ (where $T$ is torque, $F$ is linear force, $P$ is the ball screw pitch, and $\eta$ is efficiency). The ball screw, packed with perfectly spherical ball bearings, converts that motor rotation into incredibly smooth, backlash-free linear motion, allowing the machine to feed a tool at hundreds of inches per minute without losing accuracy.

Feedback Systems (Rotary Encoders and Linear Scales)

Unlike open-loop stepper systems found in hobby routers, industrial CNC machines operate strictly on closed-loop feedback systems. To ensure the machine axis actually moved exactly where the Fanuc or Siemens controller commanded it to go, high-resolution rotary encoders (often mounted directly to the back of the servo motor) or glass linear scales (mounted directly to the machine axes) are utilized. These optical or magnetic sensors constantly feed exact, real-time positional data back to the controller—often millions of pulses per revolution—dynamically adjusting for minute thermal deviations and mechanical wear, ensuring final part tolerances can be held as tight as $\pm 0.0001$ inches ($\pm 2.5$ microns).

Technical Comparison Table: CNC Mill vs. CNC Lathe

To clearly summarize these vast structural and operational distinctions, please refer to this detailed technical comparison table for quick reference on the shop floor:

Frequently Asked Questions (FAQ)

Understanding the fundamental, component-level anatomy of CNC mills and lathes drastically empowers modern manufacturers to select the absolutely correct tool for the specific job at hand. While mills excel at handling prismatic complexity and lathes completely dominate cylindrical efficiency and speed, both remain indispensable, foundational pillars of modern industry. They share advanced, closed-loop electronic control technologies that continuously push the boundaries of what is possible in precision engineering and global manufacturing.

The global manufacturing landscape is undergoing a massive shift towards localized production and rapid prototyping. Because of this, the demand for precision engineering has never been higher. If you own a machine shop, have recently acquired a mill or lathe, or are drafting a business plan, you are likely asking the golden question: how to make money selling CNC machined parts? Whether you are running a lean garage setup with a single 3-axis mill or managing a full-scale industrial facility, turning raw billets of aluminum, steel, or plastic into highly profitable components requires a seamless blend of machining expertise, strategic market positioning, and flawless equipment reliability.

In this comprehensive, deep-dive guide, we will explore the most profitable industry niches, exactly how to calculate the price of your components using mathematical formulas, advanced strategies for scaling your operations, and why proactive maintenance of your machinery’s electronic components is the ultimate secret to protecting your profit margins.

Finding Your Niche: What CNC Parts Are the Most Profitable?

The very first step in building a sustainable and profitable CNC business is deciding exactly what you are going to make. Trying to act as a generalist who caters to everyone often leads to a race to the bottom in terms of pricing. Instead, you must focus your efforts on specialized niches where buyers value precision, material quality, strict tolerances, and rapid turnaround times over sheer cheapness.

Automotive and Motorsports Aftermarket

Car enthusiasts, amateur racers, and professional restoration shops are constantly seeking custom brackets, engine mounts, specialized fluid fittings, and heavy-duty suspension components. Machining these parts from high-grade 6061 or 7075 aluminum, or even titanium, can yield excellent profit margins. Because these performance parts often require high precision and flawless surface finishes, you must ensure your machine’s servo motors and drive systems are calibrated perfectly to avoid chatter marks and out-of-tolerance dimensions.

Aerospace and Defense Contracting

If your shop can achieve ISO 9001 and AS9100 certifications, the aerospace sector offers some of the highest margins in the industry. Aerospace parts demand exotic materials like Inconel and require strict documentation. The barrier to entry is very high, but a single contract for structural brackets or drone components can sustain a small shop for an entire year. Precision is life-or-death here, meaning your machine’s feedback systems must be completely infallible.

Medical and Dental Devices

The medical industry requires bone screws, joint replacements, surgical instruments, and dental implants. These are typically high-mix, low-volume jobs machined from medical-grade titanium and stainless steel. The profit margins are phenomenal, but the hygienic and tolerance requirements mean your shop must operate with clinical precision.

Custom Consumer Goods and “EDC”

There is a massive, growing market for high-end, custom consumer goods. This includes heavy mechanical keyboard cases, custom everyday carry (EDC) items like pocket knives, flashlights, multi-tools, and specialized camera rigging equipment. These buyers care deeply about surface finish, aesthetics, and unique anodizing. For this market, your tooling strategies and part design must be exceptionally creative and flawless.

Industrial and Automation Components

Local factories and packaging plants constantly need replacement parts, custom jigs, and specialized fixtures to keep their own lines running. By offering rapid prototyping and reverse engineering services for local manufacturing plants, you can secure lucrative B2B contracts. When their line goes down, they will pay a premium for a 24-hour turnaround on a custom gear or shaft.

Pricing Your CNC Machined Parts for Maximum Profit

Understanding why CNC machined parts are expensive is crucial to successfully pricing your own work. If you underprice, you will quickly burn out, work 80-hour weeks, and operate at a loss. If you overprice without justifying the value through quality and service, you will simply lose bids to competitors.

A standard formula for calculating the price of a CNC job is:

$$Price = (Material Costs + Setup Time Cost + Machining Time Cost + Finishing + Shipping) \times Profit Margin$$

To accurately plug numbers into that formula, you must first calculate your Shop Hourly Rate. You cannot guess this number; it must be grounded in your actual overhead:

$$Hourly Rate = \frac{Monthly Overhead + Labor Costs + Desired Monthly Profit}{Estimated Billable Hours Per Month}$$

• Material Costs: Always account for waste, offcuts, and the cost of having material shipped to your shop. Buy in bulk when it makes sense, but track your inventory carefully.
• Machining Time: This must cover your machine depreciation, electricity, tooling wear (end mills, inserts), coolant, and labor. A common shop rate ranges from $60 to $150 per hour depending on the complexity of the machine (e.g., a basic 3-axis mill vs. a complex 5-axis trunnion).
• Setup Time: Never underestimate setup time. CAM programming, tool touch-offs, loading stock, and creating custom soft jaws take significant time. If a customer orders exactly one part, the entire setup time is absorbed by that single part. If they order 1,000 parts, the setup time is distributed, drastically lowering the per-part cost.

Maximizing Machine Uptime: The Hidden Profit Killer

You only make money when chips are actively flying. Machine downtime is the absolute biggest threat to your shop’s profitability. A broken controller, a faulty spindle encoder, or a simple blown fuse can halt production for days, costing you thousands of dollars in lost revenue, idle labor, and missed delivery deadlines.

Invest in Reliable Control Systems

The “brain” of your CNC machine dictates its efficiency and reliability. Upgrading or properly maintaining your control system ensures smooth toolpaths, faster block processing speeds, and reduced cycle times. Whether your shop relies on an industry-standard Fanuc controller or you prefer the advanced conversational programming of Siemens controllers, keeping these systems in pristine condition is non-negotiable. Dust, coolant mist, and voltage spikes can damage sensitive electronics. If you are running older, legacy machines, it is highly recommended to keep spare main boards on hand to swap out instantly in the event of a failure.

Precision Measurement and Encoder Feedback

Scrapped parts eat directly into your profit margin. If you machine a $500 block of titanium incorrectly, you lose both the material cost and the hours of machine time. To ensure absolute accuracy, your machine relies heavily on closed-loop feedback from rotary and linear encoders. If an encoder starts failing, your machine will lose its precise physical position, resulting in ruined stock and broken cutting tools. Shop owners must learn how to troubleshoot inaccurate readings and replace faulty units with high-quality rotary encoders immediately before catastrophic crashes occur.

Keep Spares of Consumable Electronics

Do not wait for a $5 component to shut down a machine that generates $1,000 a day. Smart shop owners treat electronic components like they treat end mills—as consumables that need backup inventory. This includes keeping a stocked cabinet of fuses, communication cables, and clean power supplies. Knowing exactly where to buy high-quality CNC parts online ensures you can minimize downtime and get back to profitable production quickly.

Marketing and Selling Your CNC Parts

Once you have your production dialed in and your scrap rate near zero, you need to find buyers. Relying purely on word-of-mouth is a slow path to growth. To truly scale a machining business, you need a proactive, multi-channel sales strategy.

Online Marketplaces and Direct E-commerce

If you are creating proprietary products (like the EDC gear, mechanical keyboards, or car parts mentioned earlier), set up a direct-to-consumer e-commerce store using platforms like WooCommerce. Invest in high-quality, professional photography. Highlight the tight tolerances, premium materials, and the fact that they are precision-machined. Content marketing works incredibly well here; posting satisfying “ASMR” machining videos on Instagram, YouTube Shorts, or TikTok can drive massive organic traffic to your storefront.

B2B Networking and Local Outreach

For custom job shop work, your best clients are other businesses. Reach out systematically to local engineering firms, robotics startups, automation integrators, and assembly plants. Offer to machine a small test batch at a discount to prove your quality and lead times. B2B clients value absolute reliability, tight communication, and quality control just as much as they value competitive pricing.

Utilize Manufacturing Networks

Platforms like Xometry, Protolabs Network (formerly Hubs), and Fractory allow independent machine shops to take on overflow work from a global network. While the margins might be slightly lower due to platform fees, these networks are excellent for filling spindle time during slow periods and ensuring your overhead is always covered.

Technical Comparison: Low-Volume vs. High-Volume Production

To understand exactly where your machine shop fits in the broader market, it helps to compare the economics of different production volume strategies. Below is a detailed breakdown of how different approaches impact your operational setup and overall profitability.

Expanding Your Capabilities and Quality Control

As your profits grow, you must continually reinvest in your business to take on more complex, tighter-tolerance, and highly lucrative work. Moving from a standard 3-axis VMC (Vertical Machining Center) to a 4-axis rotary setup, or a full 5-axis machine, allows you to machine highly complex geometries without requiring the operator to manually reposition the part for multiple setups. This drastically reduces cycle times and eliminates setup errors.

Additionally, optimizing your machinist’s workflow pays off daily. Installing a high-quality Manual Pulse Generator (MPG) allows for much faster, safer tool touch-offs and fixture zeroing. Upgrading dim, failing screens to crisp, modern LCD displays ensures operators can easily read G-code, monitor spindle loads, and catch typographical errors in the code before a costly crash happens.

Finally, do not ignore Quality Control (QC). Investing in CMMs (Coordinate Measuring Machines), optical comparators, and high-end micrometers allows you to provide formal inspection reports to your clients. Being able to mathematically prove that your part is within a $0.0005″$ tolerance allows you to charge premium prices and win contracts over cheaper, less professional competitors.

Conclusion

Figuring out how to make money selling CNC machined parts is not a get-rich-quick scheme; it is a journey of continuous operational improvement. It requires finding the exact right niche for your equipment, pricing your time accurately to ensure growth, aggressively marketing your capabilities, and above all, keeping your machinery running flawlessly. By sourcing reliable industrial electronic components, adhering to strict preventive maintenance schedules, and minimizing downtime, you build an unshakeable foundation for a highly profitable, scalable manufacturing business.

Maintaining the immense accuracy and smooth motion of a CNC machine is the bedrock of precision manufacturing. At the heart of this fluid movement on traditional box-way machines lies a critical element: Turcite. This specialized polytetrafluoroethylene (PTFE) based bearing material drastically reduces friction, eliminates stick-slip, and ensures your axes move with micro-inch precision. However, heavy loads, contaminated way lube, or sheer thousands of hours of operation will eventually wear it down. In this comprehensive guide, we present a step-by-step masterclass on replacing Turcite on CNC ways to restore your machine to its original factory tolerances.

Whether you are a maintenance engineer, a workshop owner, or a technician seeking to refurbish an aging mill or lathe, understanding the exact science and art of replacing Turcite is non-negotiable. To understand where this fits into the broader architecture of your machine, you can review the essential components of a CNC machine.

Diagnosing the Need for Turcite Replacement

Before tearing down your machine, you must confirm that the Turcite is indeed the culprit behind your machining issues. Look for these undeniable symptoms:

• Stick-Slip (Stiction): The axis stutters or jerks at low feed rates instead of moving fluidly.
• Loss of Positioning Accuracy: Repeated interpolations result in out-of-round circles or lost tolerances.
• Increased Servo Load: If your servo motors are drawing higher amperage than normal just to move an axis, friction has increased.
• Physical Debris: You find green or bronze-colored plastic shavings floating in your coolant or at the base of the machine ways.
• Uneven Backlash: Backlash that cannot be compensated consistently across the entire travel of the ball screw.

Essential Tools and Materials Checklist

Success in this delicate operation relies heavily on having the right materials. The process is unforgiving if you use substandard adhesives or improper scraping tools.

• High-Quality Turcite Material: You must select the correct thickness (usually ranging from $0.015$ to $0.125$ inches). Sourcing premium Turcite is critical for longevity.
• Industrial Epoxy / Adhesive: Specialized two-part structural glue designed specifically for PTFE bonding (e.g., Waylock).
• Cleaning Solvents: Acetone or specialized heavy-duty industrial degreasers.
• Scraping Tools: Carbide hand scrapers and a power flaker.
• Metrology Equipment: Precision straight edges, dial indicators (capable of measuring down to $0.0001$ inches), and surface plates.
• Prussian Blue: High-contrast marking medium to highlight high spots during the scraping process.

Step 1: Disassembly and Rigging

Replacing slideway material requires full access to the mating surfaces. This means safely removing the table, saddle, or column of the CNC machine.

Begin by locking out and tagging out (LOTO) all electrical and pneumatic power to the CNC. Carefully disconnect the servo motors, limit switches, and way cover attachments. Unbolt the ball nut from the casting. Using an overhead crane or appropriate lifting equipment, gently lift the casting off the ways. Extreme care must be taken not to damage the exposed ball screw or the precision-ground iron ways of the base.

Step 2: Removing the Old Turcite

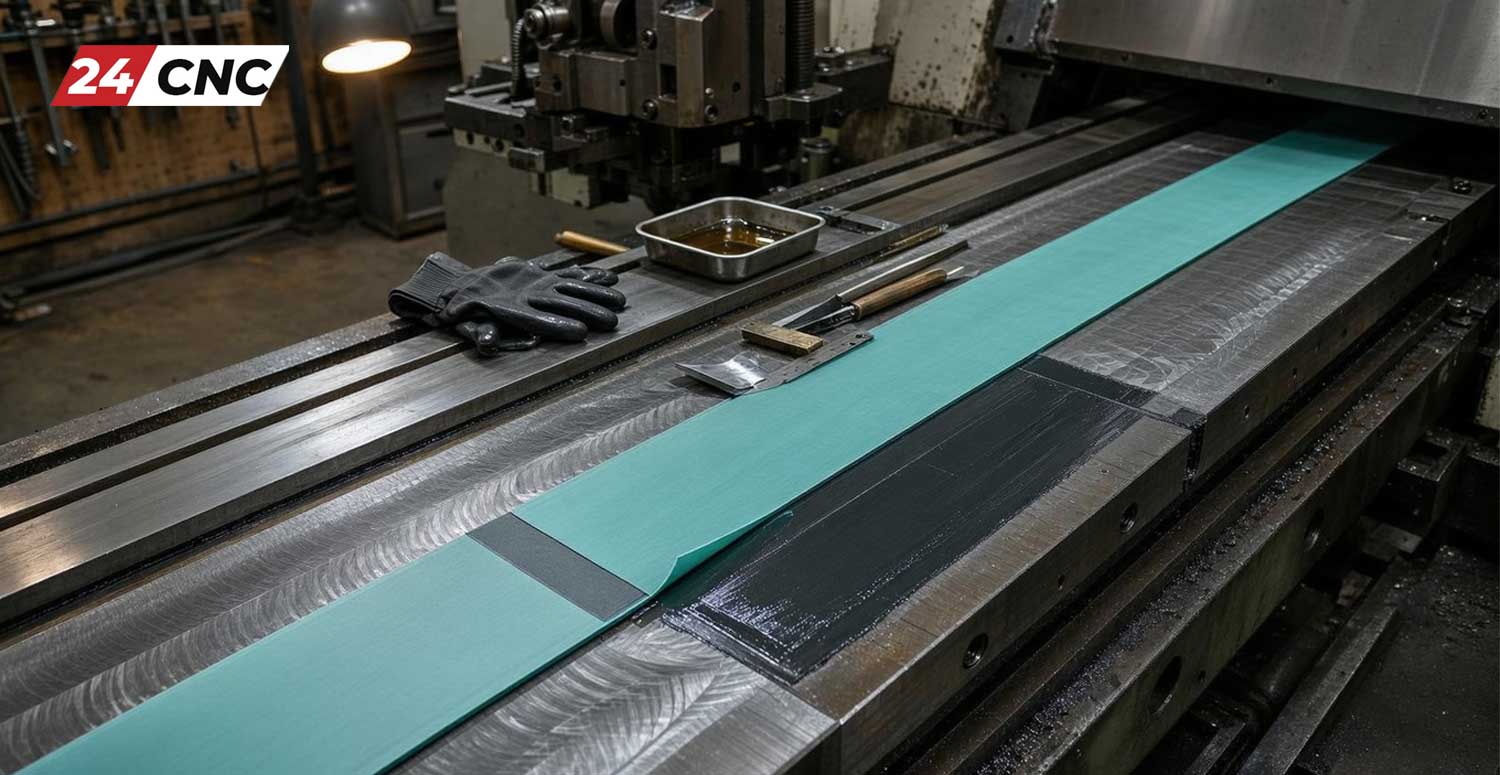

With the mating surfaces exposed, you must strip away the old bearing material. Often, the old Turcite can be peeled off using a sharp chisel or a pneumatic scraper. If it is severely bonded, applying localized heat (using a heat gun) can soften the old epoxy.

Once the bulk of the material is removed, use a flat sanding block or a die grinder with a conditioning pad to remove all residual epoxy. The cast iron surface must be brought back to bare metal. Do not alter the geometry of the cast iron itself; your goal is purely to remove the old glue.

Step 3: Absolute Surface Preparation

The new epoxy requires a pristine, textured surface to achieve a mechanical grip. The cast iron should ideally have a surface finish of approximately $R_a = 60 \mu in$ to $125 \mu in$.

Thoroughly clean the iron with acetone. Wipe in one direction using lint-free cloths until the cloth comes up completely clean. Do the same for the etched side (the dark brown side) of the new Turcite. Any trace of way lube, coolant, or fingerprint oil will cause the bond to fail under heavy machining loads.

Step 4: Applying Adhesive and Bonding

Cut the new Turcite strips roughly $0.25$ inches wider and longer than the cast iron ways to allow for trimming later. Mix your specialized epoxy according to the manufacturer’s exact volumetric or weight ratio.

Spread the epoxy evenly onto the cast iron surface using a notched trowel. The goal is an even coat without excessive air bubbles. Carefully lay the Turcite (etched side down) onto the epoxy. Using a heavy roller, roll out the material from the center toward the edges to expel any trapped air and excess glue.

Apply even clamping pressure. Some technicians use heavy, flat steel plates wrapped in release film (like Mylar) clamped over the Turcite to ensure a perfectly flat bond. Allow the epoxy to cure fully, which usually takes 24 to 48 hours depending on ambient temperature.

Step 5: Trimming and Machining Oil Grooves

Once cured, unclamp the assembly. Use a sharp utility knife or a flush-trim router bit to trim the overhanging Turcite perfectly flush with the cast iron edges.

Next, you must recreate the lubrication channels. Using a die grinder with a rounded ball-nose burr (or by setting up the casting on another large milling machine), cut the oil grooves into the new Turcite. These grooves should match the original factory pattern—usually a continuous “Z”, “S”, or figure-eight pattern. Ensure the grooves do not break through to the edges, which would allow way lube to leak out prematurely rather than creating a hydrostatic fluid film.

Step 6: The Art of Hand Scraping

This is the most critical and skill-intensive phase. The newly bonded Turcite is relatively flat, but not geometrically perfect enough for CNC tolerances. It must be hand-scraped to match the geometry of the machine base.

Apply a very thin, even layer of Prussian Blue to a master straight edge or the machine’s actual base ways. Carefully lower the Turcite-lined casting onto the blued ways and rub it back and forth slightly. When you lift the casting, the high spots on the Turcite will be dyed blue.

Using a carbide hand scraper, shave off these blue high spots. Repeat this grueling process of bluing and scraping dozens of times. Your goal is to achieve a uniform bearing contact—typically aiming for 10 to 20 Points Per Square Inch (PPI) of contact. Finally, use a power flaker to cut small, crescent-shaped pockets (oil pockets) into the Turcite. These pockets hold the way lube, preventing stick-slip and ensuring the axis floats effortlessly. During this process, use dial indicators to verify that the axis maintains a geometric alignment within $\pm 0.0002$ inches over its full travel.

Technical Comparison: Turcite vs. Linear Guide Systems

While Turcite-lined box ways are legendary for their rigidity, how do they compare to modern linear guideways? Here is a breakdown:

Frequently Asked Questions (FAQ)

Replacing Turcite is a massive undertaking, but completing it successfully breathes a second life into a machine, restoring its ability to hold the tightest tolerances required in modern manufacturing. Always ensure you source premium replacement materials to guarantee the longevity of your intensive labor.

Designing parts for Computer Numerical Control (CNC) machining can feel daunting for beginners and even seasoned engineers shifting from additive manufacturing. The transition from a digital 3D CAD model to a physical, precision-milled metal or plastic component involves understanding the complex physical constraints of cutting tools, material behaviors, machine kinematics, and control systems. Whether you are building rapid prototypes for a hardware startup, engineering aerospace components, or optimizing a part for high-volume production, mastering Design for Manufacturability (DFM) is non-negotiable.

Properly designing for CNC machining not only guarantees the structural integrity and functionality of your part but also drastically reduces the final manufacturing costs and lead times. When designs are optimized for the machine, cycle times drop, tool wear is minimized, and the load on critical machine components—like spindle motors and servo drives—is kept within optimal parameters.

This comprehensive guide will walk you through the core principles of designing parts specifically for CNC mills and lathes. We will cover the critical aspects of part geometry, tolerances, material selection, surface finishes, and how modern CNC control systems interpret your designs, ensuring you can confidently send your next project to the machine shop.

1. Understanding the Subtractive Manufacturing Process

Before diving into specific design rules, it is crucial to understand that CNC machining is a strictly subtractive manufacturing process. Unlike 3D printing (additive manufacturing), which builds parts layer by layer, CNC machining starts with a solid block of raw material (the blank or billet). It then uses high-speed rotating cutting tools to aggressively and precisely remove material until the final shape remains.

The cutting tools—such as end mills, drills, and face mills—are cylindrical and rotate on a primary axis. This fundamental geometric reality dictates almost every CNC design rule. Because the tools are round, they cannot easily produce perfectly sharp internal corners or complex internal cavities that are entirely enclosed. Your design must account for tool access and clearance. If the cutting tool cannot reach a feature without colliding with another part of the workpiece, the machine cannot cut it. While advanced 5-axis machines, driven by sophisticated Fanuc or Siemens controllers, offer extraordinary flexibility by rotating the part in real-time, the core subtractive limitations of tool geometry still apply.

2. The Challenge of Internal Corners and Radii

The most common and costly mistake beginners make is designing sharp, $90^{\circ}$ internal corners. Because milling tools are cylindrical, they naturally leave a radius when cutting an internal corner. Attempting to force a sharp internal corner requires the machinist to use progressively smaller tools, which drastically increases machining time. If a perfectly sharp corner is absolutely necessary for part mating, it typically requires highly expensive secondary operations like Electrical Discharge Machining (EDM) or broaching.

The DFM Rule for Corners: Always add a fillet (radius) to internal vertical edges. As a standard rule of thumb, make the corner radius ($R$) slightly larger than one-third of the cavity depth ($D$). Mathematically, ensure $R > 0.33 \times D$. More ideally, aim for $R \ge 130\%$ of the milling tool’s radius. A larger radius allows the machine shop to use a larger, more rigid end mill. Larger tools remove material faster, vibrate less, and reduce machining costs. If a rectangular mating part needs to fit squarely into a pocket, do not design a sharp corner; instead, utilize a “dog-bone” or “T-bone” undercut at the corners to provide relief for the mating part.

3. Managing Cavities, Pockets, and Wall Thickness

When designing pockets or cavities, the depth-to-width ratio is a major cost driver. Long cutting tools are highly susceptible to deflection (bending) and vibration (chatter) during the cutting process. Chatter ruins the surface finish, reduces dimensional accuracy, and can easily snap the cutting tool or damage the machine’s tool holder.

Design Rule for Pockets: Limit the depth of your pockets to $4 \times$ the width of the pocket. For example, if a pocket is $10 \text{ mm}$ wide, its maximum depth should ideally not exceed $40 \text{ mm}$. If you must go deeper (up to $6 \times$ or $10 \times$), expect the machine shop to charge a premium for specialized long-reach tooling, vibration-damping tool holders, and significantly slower feed rates.

Design Rule for Wall Thickness: Very thin walls are incredibly difficult to machine. The lateral pressure exerted by the cutting tool causes thin material to flex away from the cutter, leading to severe inaccuracies, warping, or tearing of the material. For structural metal parts (like aluminum or steel), maintain a minimum wall thickness of $0.8 \text{ mm}$. For softer plastics, maintain a minimum of $1.5 \text{ mm}$. Thicker walls increase the structural stability of the part during the intense stress of the machining process. If thin walls are required, they must be machined in multiple, very light passes, which increases machine time and cost.

4. CNC Milling vs. CNC Turning

It is vital to understand which type of CNC machine will produce your part, as the design rules differ slightly:

• CNC Milling: The workpiece remains stationary (or rotates on specific axes), and the rotating cutting tool moves around it. Milling is ideal for prismatic, flat, or complex 3D shapes.
• CNC Turning (Lathes): The raw material (a cylindrical rod) rotates at high speeds in a chuck, while a stationary cutting tool moves linearly to shave off material. Turning is perfect for cylindrical parts like shafts, bushings, and spacers.

If your part is primarily cylindrical, design it to be turned on a lathe, as turning is generally much faster and cheaper than interpolating a cylinder on a mill. Modern CNC lathes often feature “live tooling,” meaning they have small milling cutters on the turret, allowing for off-axis holes, flats, and slots to be machined on a cylindrical part in a single setup.

5. Tolerances and GD&T: Do Not Over-Specify

Tolerances define the acceptable margin of error for a given dimension. While CNC machines equipped with high-resolution rotary encoders and powerful servo motors are incredibly precise, asking for tighter tolerances than strictly necessary is a guaranteed way to inflate your budget unnecessarily.

A standard CNC machining process can comfortably and economically hold a tolerance of $\pm 0.125 \text{ mm}$ (approximately $\pm 0.005 \text{ inches}$) according to ISO 2768 standard guidelines. If you specify tighter tolerances (e.g., $\pm 0.025 \text{ mm}$ or $\pm 0.01 \text{ mm}$), the machinist must use brand-new tools, drastically slow down the cutting speeds, account for thermal expansion of the machine and the part, and perform rigorous manual inspections using micrometers or a Coordinate Measuring Machine (CMM).

Best Practice: Only apply tight tolerances to critical features, such as bearing press-fits, alignment dowel holes, or critical sealing surfaces. Leave the rest of the non-critical geometry to standard block tolerances. Furthermore, consider utilizing Geometric Dimensioning and Tolerancing (GD&T) to control features like flatness, parallelism, and concentricity, which often provides more manufacturing flexibility than strict dimensional tolerances.

6. Standardizing Holes and Threads

Holes and internal threads are ubiquitous in CNC parts, but they can be problematic if designed poorly.

• Hole Diameters: Custom hole sizes require custom drill bits or time-consuming circular interpolation with an end mill. To keep costs down, design your holes to match standard fractional, wire-gauge, or metric drill bit sizes (e.g., $3.0 \text{ mm}$, $3.3 \text{ mm}$, $4.0 \text{ mm}$).
• Hole Depth: The depth of a hole should ideally not exceed $4 \times$ its diameter (a $4:1$ ratio). Deep hole drilling requires specialized “peck drilling” cycles to clear chips and prevent drill breakage.
• Threads: When designing threaded holes, remember that thread length does not need to extend to the very bottom of a deep blind hole. The maximum holding strength of a threaded fastener is achieved in the first few threads. A thread depth of $1.5 \times$ to $3 \times$ the nominal hole diameter is mathematically sufficient for maximum tensile strength. Always specify standard thread pitches (like $M4 \times 0.7$, $M6 \times 1.0$, or $1/4-20 \text{ UNC}$) rather than custom profiles.

7. Material Selection Guide

The raw material you specify dramatically impacts the machining process, tooling wear, and final cost. Materials are rated by their “machinability”—a measure of how easily they can be cut.

• Aluminum (6061-T6 & 7075-T6): The most common CNC materials. They have excellent machinability, dissipate heat well, and cause minimal tool wear. 6061 is highly economical for general parts, while 7075 offers aerospace-grade strength.
• Stainless Steel (304 & 316): Much harder and tougher than aluminum. They tend to work-harden during machining, requiring rigid setups, heavy coolant flow, and slower cutting speeds. 316 offers superior corrosion resistance compared to 304 but is slightly harder to machine.
• Carbon Steels (1018, 4140): Good balance of strength and machinability. 4140 can be heat-treated for exceptional hardness, making it ideal for gears and high-stress mechanical components.
• Plastics (Delrin/POM, PEEK, Polycarbonate): Plastics cut very quickly but are prone to warping and melting if heat builds up. Delrin (Acetal) is widely considered the best plastic for CNC machining due to its high dimensional stability and low friction. PEEK is a high-performance, high-temperature plastic but is exceedingly expensive as a raw material.

8. Specifying Surface Finishes

The standard “as-machined” surface finish for CNC parts will show visible tool marks. Surface roughness is typically measured as Roughness Average ($Ra$) in micrometers ($\mu\text{m}$). A standard, cost-effective CNC finish is usually $Ra = 3.2 \mu\text{m}$ ($125 \mu\text{in}$).

If you require a smoother finish for aesthetic reasons or O-ring seals, you can specify $Ra = 1.6 \mu\text{m}$ or $Ra = 0.8 \mu\text{m}$. However, achieving these smooth finishes requires the machine to make very slow, fine finishing passes, which increases the cycle time. For aesthetics, consider post-processing options like bead blasting (which provides a uniform matte finish) or anodizing (for aluminum parts to add color and corrosion resistance) rather than forcing the CNC machine to achieve a mirror finish.

CNC Design Rules Checklist: A Quick Reference

Use this technical comparison table as a pre-flight checklist to ensure your CAD designs are fully optimized for the CNC manufacturing process before requesting a quote.

Frequently Asked Questions (FAQ)

Conclusion

Designing for CNC machining is fundamentally an exercise in practical, reality-based engineering. By deeply understanding the physical limitations of the subtractive process—such as tool reach, internal corner radii dynamics, material machinability, and the implications of tight tolerances—you can design robust, beautiful parts that are highly cost-effective to produce. Applying these standard Design for Manufacturability (DFM) principles from the very beginning of your CAD process ensures smooth communication with your machine shop, minimizes costly design revisions, accelerates lead times, and ultimately results in an end product that perfectly matches your engineering vision.

Computer Numerical Control (CNC) machinery has revolutionized industrial manufacturing, bringing unparalleled precision, speed, and efficiency to the global production floor. Whether you are operating a multi-axis milling center, a high-speed lathe, a plasma cutter, or a sophisticated EDM machine, the underlying architecture relies on a vast and complex network of electronic, mechanical, and hydraulic parts working in perfect synchronization. Understanding the essential components of a CNC machine is absolutely crucial for maintenance engineers, procurement specialists, workshop owners, and technicians to accurately diagnose faults, source reliable replacement parts, and minimize devastatingly costly downtime.

In this extensive, complete breakdown, we will dissect the anatomy of a CNC machine from top to bottom. We will explore the critical subsystems that transform digital G-code instructions into physical, micron-level movements. By deeply understanding how the “brain,” “muscle,” “senses,” and “nervous system” of these machines operate, you can make highly informed, strategic decisions when upgrading, maintaining, or repairing your critical industrial equipment.

1. The Brain: Advanced Control Systems and Processing Units

The operational core and “brain” of any automated machine tool is its master controller. This system is responsible for reading the programmed code (usually G-code and M-code) and converting it into precise electrical signals that dictate the speed, position, and coordination of all axes simultaneously.

CNC Main Boards and Core Processing

At the center of the control unit are the CNC control systems and main processing boards. These are not standard PCs; they are specialized, industrial-grade computers designed to handle intense, real-time mathematical processing without freezing or lagging. A failure here brings the entire machine to an immediate halt. Industry giants like Fanuc, Siemens, Mitsubishi, and Heidenhain dominate this space, each offering proprietary logic architectures and ecosystems.

For instance, a Fanuc controller is universally renowned for its bulletproof reliability, massive legacy support, and tight closed-loop integration. Conversely, a Siemens controller (like the Sinumerik series) often provides highly advanced, flexible programming environments, stunning 3D simulation interfaces, and superior capabilities for complex multi-tasking machines (like mill-turns).

Input/Output (I/O) Modules and Relays

To interact with external peripheral devices—such as limit switches, proximity sensors, coolant pumps, and automatic tool changers—the main CPU board relies on Input/Output modules. These modules act as vital translators between the low-voltage, high-level logic of the CPU and the higher-voltage physical hardware. They ensure that auxiliary functions activate precisely when commanded by the M-codes. A blown I/O relay can stop a tool change mid-cycle, requiring careful multimeter troubleshooting to isolate.

2. The Muscle: Motion Control Systems and Kinematics

Once the control system processes the complex trajectory commands, it must physicalize them. This is the heavy-lifting job of the motion control system, which consists primarily of servo motors, spindle motors, and their corresponding intelligent drives.

Precision Servo Motors

Unlike standard AC induction motors that simply spin when power is applied, servo motors are meticulously designed for highly dynamic, high-torque applications requiring precise angular positioning. They drive the heavy ball screws that physically move the machine tables and cutting heads. Different manufacturers offer specialized motors explicitly tailored and magnetically tuned to their control systems. A Fanuc servo motor, for example, is specifically wound to respond instantly to the proprietary PWM signals generated by Fanuc drives, ensuring zero lag in complex circular interpolation.

Spindle Motors: The Cutting Force

While servos move the axes, the spindle motor rotates the cutting tool (in a mill) or the workpiece (in a lathe). Spindle motors must deliver massive torque at low RPMs for heavy roughing cuts, while remaining perfectly balanced for ultra-high RPM finishing passes. They are often liquid-cooled or force-air cooled to manage the extreme heat generated during continuous operation.

Amplifiers and Inverters (Servo & Spindle Drives)

Motors cannot operate on raw, unmodulated facility power; they require incredibly precise current and frequency modulation. Amplifiers and inverters act as the critical middleman between the main power supply and the motor. They receive low-voltage digital command signals via fiber optics or serial cables from the main controller and amplify them into the high-current, 3-phase electrical pulses needed to turn the motor shaft with extreme rigidity. Matching the drive to the motor is an absolute necessity; pairing a Mitsubishi motor with a Mitsubishi drive ensures seamless communication, accurate auto-tuning, and optimal torque delivery across the entire speed range.

3. The Senses: High-Fidelity Feedback Devices

For a CNC machine to maintain its micron-level accuracy, it must operate in a rigorous “closed-loop” system. This means the controller is not just blindly sending movement commands; it needs constant, real-time feedback on where the physical axes actually are, comparing that physical reality to the programmed target.

Rotary and Absolute Encoders

The primary sensor used for this critical positional feedback is the rotary encoder. Usually mounted directly on the tail end of the servo motor, or sometimes directly on the ball screw, encoders read the rotational position and speed. They achieve this using an optical disc or magnetic field, sending hundreds of thousands of pulses back to the controller every single second.

To truly grasp their immense importance, it is helpful to understand the function of an encoder in industrial automation systems. High-resolution feedback ensures that even the smallest mechanical deviations (due to friction, heat expansion, or cutting forces) are corrected instantly by the servo drive. When sourcing replacements, ensuring you have the exact Fanuc encoder or a perfectly matched equivalent part is vital for preventing catastrophic following errors.

Linear Scales

For ultra-precision machining (like aerospace or medical parts), rotary encoders are sometimes not enough due to ball screw thermal expansion or backlash. In these cases, Linear Scales (often made by Heidenhain or Renishaw) are bolted directly to the machine casting and moving table. They measure the absolute true physical position of the table, bypassing any mechanical inaccuracies in the drive train.

4. The Nervous System: Infrastructure, Wiring, and Power

No electronic component, regardless of how advanced, can function without clean, perfectly stable power and reliable, interference-free data transmission. The electrical infrastructure of a CNC machine is often severely overlooked by operators until a catastrophic failure or mysterious intermittent alarm occurs.

Industrial Power Supplies (PSU)

Industrial power supplies convert incoming raw facility AC voltage (which is often dirty and fluctuating) into the perfectly stable DC voltages (typically 24V, 15V, and 5V) required by the sensitive logic boards, I/O relays, drives, and optical sensors. Voltage fluctuations or a failing capacitor inside a PSU can cause bizarre logic errors, corrupted memory, or permanent component burnout, making robust power regulation absolutely essential.

Shielded Industrial Cables and Protective Fuses

The high-speed transmission of power and data relies on specialized, highly shielded cables. Because CNC machines generate significant electromagnetic interference (EMI) and radio frequency interference (RFI) from their heavy drives and spindles, using properly rated encoder cables and power cables is strictly non-negotiable to prevent signal degradation and data loss.

Furthermore, protecting these massively expensive circuits from sudden current spikes or short circuits is managed by rapid-response semiconductor fuses (such as Daito fuses). These fuses act as the crucial sacrificial barrier during electrical faults, blowing instantly to save a $5,000 drive from destruction.

5. The Mechanical Skeleton: Castings, Ways, and Ball Screws

While 24CNC focuses on the electronic components, it’s vital to acknowledge the mechanical foundation that houses them.

Machine Bed and Castings

The frame of the machine is usually cast iron or polymer concrete. It provides the massive rigidity required to absorb brutal cutting vibrations. A weak casting will result in poor surface finishes and rapid tool wear, regardless of how good the electronics are.

Linear Guide Ways and Box Ways

The axes glide on precision ways. Box ways offer immense rigidity for heavy cutting, while linear guide rails (using recirculating ball bearings) offer higher rapid speeds and less friction.

Precision Ball Screws

The rotary motion of the servo motor is converted into linear motion by the ball screw. These are precision-ground screws running through a nut packed with ball bearings, providing virtually zero backlash and incredibly smooth motion.

6. The Human-Machine Interface (HMI)

Finally, the operator must be able to interact with, program, and monitor the machine tool. This interface is the bridge between human intent and mechanical action.

• Industrial Displays: Industrial LCD monitors (and older CRT screens) provide the visual readout of absolute/relative coordinates, active G-code, tool offsets, and critical system alarms.
• Manual Control (MPG): For careful setup, edge finding, and tool touching-off, operators rely heavily on Manual Pulse Generators (MPG). These electronic handwheels allow precise micro-stepping of the axes (often down to 0.001mm per click) completely independent of the main program.
• Keyboards & Operator Panels: Ruggedized, membrane-sealed keyboards and operator panels are designed to withstand aggressive cutting fluids, oil mist, and sharp metal chips while allowing rapid data entry and machine overrides.

Technical Comparison: Diagnosing Core CNC Modules

Understanding the specific role of each electronic subsystem drastically reduces troubleshooting time. Use this quick reference table to distinguish between primary components and their failure signatures.

Whether you are a mechanical engineer designing a next-generation aerospace prototype, a procurement officer sourcing manufacturing services for consumer electronics, or a workshop owner analyzing overheads and quoting strategies, you have likely asked yourself this fundamental question: Why are CNC machined parts so expensive? When compared to other modern manufacturing methods like FDM 3D printing, or high-volume processes like plastic injection molding and die casting, Computer Numerical Control (CNC) machining often carries a significant premium price tag.

However, this cost is by no means arbitrary. It is the direct and logical result of the incredible precision, mechanical durability, and technological sophistication involved in the subtractive manufacturing process. CNC machining is capable of holding microscopic tolerances in some of the hardest materials known to man, but that capability requires immense resources. In this comprehensive pillar guide, we will break down the true, hidden costs behind CNC machining. By understanding the intricate variables that dictate pricing—ranging from massive capital equipment investments to the nuances of geometric complexity and tight tolerances—you can make far more informed decisions and optimize your product designs to reduce manufacturing expenses without ever compromising on quality.

1. The Immense Cost of Capital Equipment and Infrastructure

The most foundational reason for the high cost of CNC parts is the machinery itself. Industrial-grade CNC mills, lathes, Swiss machines, and Mill-Turn centers are massive, highly sophisticated pieces of engineering. A state-of-the-art 5-axis CNC machining center from top-tier brands can easily cost anywhere from hundreds of thousands to well over a million dollars. This immense capital investment must be amortized over the operational life of the machine, which translates directly into a high hourly rate ($R_{machine}$) charged to the customer for machine time.

Furthermore, the base price of the machine is just the beginning. These machines rely on ultra-premium components to function reliably under continuous, heavy loads. High-speed spindles capable of 20,000+ RPM, heavy-duty ball screws, linear guideways, and advanced Siemens controllers or Fanuc systems ensure that the machine can execute complex, multi-axis G-code with flawless accuracy. Upgrading, powering, cooling, and maintaining these industrial powerhouses significantly drives up the baseline cost of production. A spindle replacement alone can cost tens of thousands of dollars. Machine shops must factor these maintenance contingencies, along with high electricity consumption and expensive industrial floor space, into every quote they generate.

2. Setup Time, Engineering Labor, and The Low-Volume Penalty

Unlike desktop 3D printing, where a digital file is simply sliced in a few minutes and sent directly to the printer, CNC machining requires a highly meticulous, labor-intensive setup process. The setup involves highly skilled labor and expensive engineering time. Before a CNC machine cuts a single chip of metal, several critical steps must be executed flawlessly by machinists and manufacturing engineers:

• CAD/CAM Programming: A skilled CNC programmer must translate the 3D CAD (Computer-Aided Design) model into a series of highly optimized toolpaths (G-code) using expensive CAM (Computer-Aided Manufacturing) software like Mastercam or NX. This requires a deep, intuitive understanding of cutting speeds, feed rates, tool deflection, and material science.
• Workholding and Fixturing: The raw material (often called a billet or blank) must be securely clamped into the machine. Complex parts frequently require the machine shop to custom-machine “soft jaws” or design specialized modular fixtures just to hold the part securely without distorting it during the heavy forces of machining.
• Tool Loading, Presetting, and Calibration: The operator must meticulously select and load the correct end mills, face mills, drills, and taps into the machine’s automatic tool changer (ATC). Each tool must be precisely measured for length and diameter offsets using a tool presetter to ensure the machine knows exactly where the cutting edge is in 3D space.

Because setup time is a fixed cost, it heavily impacts the price of low-volume orders and prototypes. To illustrate this mathematically, we can look at the basic unit cost formula for a production run:

Where $C_{unit}$ is the total cost per part, $C_{setup}$ represents the total engineering and physical setup cost, $V$ is the volume (number) of parts being produced, $T_{machining}$ is the exact time it takes to machine one single part, and $R_{machine}$ is the hourly operational rate of the CNC center. If your production volume ($V$) is only 1 or 2 parts, the entirety of that expensive setup cost ($C_{setup}$) falls squarely on those few units, making one-off prototypes exceptionally expensive. As volume increases into the hundreds or thousands, the setup cost is amortized, and the price per part drops dramatically.

3. Geometric Complexity and the “Time is Money” Principle

The age-old business phrase “time is money” is nowhere more applicable than on the floor of a CNC machine shop. The longer a part takes to machine, the more expensive it will inevitably be. A part’s geometric complexity directly correlates with its machining time. Features like deep internal cavities, incredibly thin walls, internal undercuts, non-standard threading, and complex organic 3D surfaces require specialized tooling, much slower cutting speeds to prevent vibration (chatter), and multiple physical setups.

One of the most common cost-drivers in design is the “internal corner problem.” Because rotating milling tools are inherently cylindrical, they cannot cut a perfectly sharp internal 90-degree corner. The smaller the radius a designer specifies in a corner, the smaller the tool the machinist must use. Smaller tools break easily, cannot remove material quickly, and require many more passes to clear a pocket. This drastically increases $T_{machining}$.

Furthermore, machining a highly complex part on a standard 3-axis vertical mill might require the operator to stop the machine and manually flip and re-indicate the part three, four, or even five times to reach all sides. Each flip is a brand new setup carrying additional labor costs and risking a loss of precision. Utilizing a 5-axis machine can reduce these manual setups, allowing the machine to reach almost all sides of the part in a single operation. However, as established earlier, the hourly rate for a 5-axis machine is substantially higher. Complex geometries also demand continuous, rapid, and precise multi-axis interpolations driven by high-end servo motors, adding to the general wear and tear on the machine’s expensive drive systems.

4. Tolerances, Precision, and the Cost of Quality Assurance

In the realm of engineering, tolerances define the acceptable, allowable variation in a physical dimension. Standard CNC machining tolerances are usually quite good, generally hovering around $\pm 0.125 \text{ mm}$ ($\pm 0.005 \text{ inches}$). If your design strictly demands a much tighter tolerance, such as $\pm 0.01 \text{ mm}$ (a fraction of the thickness of a human hair) for aerospace bearings or optical mounts, the cost to manufacture that part will skyrocket.

Why does precision cost so much? Achieving ultra-tight tolerances requires the machinist to alter their entire strategy. They must take much slower, shallower finishing passes. It may require purchasing specialized, highly rigid carbide cutting tools. The shop must implement rigorous temperature control (HVAC) to prevent the metal part and the machine itself from thermally expanding or contracting during the cutting process. Furthermore, it relies heavily on the absolute accuracy of the machine’s internal feedback loops, which depend on high-resolution industrial encoders to report exact axis positions back to the main controller.

Finally, tight tolerances drastically increase the cost of Quality Assurance (QA). Parts must be meticulously measured in temperature-controlled metrology labs using expensive Coordinate Measuring Machines (CMMs) or laser scanners. The tighter the tolerance band, the higher the inherent scrap rate (the number of parts that fail inspection and must be thrown away), a risk factor which the manufacturer must price into the initial quote.

5. Material Selection, Machinability, and Wastage

CNC machining is inherently a subtractive process. You start with a solid block (billet) of raw material and violently remove everything that isn’t the final part. In many aerospace, automotive, or structural components, it is not uncommon to machine away $70\%$ to $90\%$ of the original block’s mass. You are ultimately paying for the raw material that ends up as metal chips on the shop floor.

More importantly, the physical and chemical properties of the chosen material drastically affect the machining time and tool wear rate—a metric known as the “machinability rating.” Aluminum alloys (like 6061-T6) are relatively inexpensive and cut smoothly like butter, allowing for highly rapid machining feeds and speeds. Conversely, materials like Titanium alloys, Inconel, hardened Tool Steels, or even certain engineering plastics (like PEEK) are not only very expensive to purchase by the pound, but they are notoriously difficult to cut.

Tough superalloys work-harden as they are cut, generating immense heat. They require specialized coated carbide tooling, highly concentrated coolant delivery systems, and very slow feed rates to prevent the cutting tools from shattering, melting, or dulling prematurely. A tool that might last for 100 hours cutting Aluminum might only last 30 minutes cutting Inconel. The cost of replacing these expensive cutting tools is factored directly into the cost of your parts.

6. Post-Processing and Surface Finishes

The machining process is rarely the final step. The surface finish and post-processing treatments required by the engineering drawing add significant secondary costs. A standard “as-machined” finish (where minor tool marks are visible) is the most economical option. However, many parts require secondary operations for aesthetics, wear resistance, or corrosion protection.

Processes such as bead blasting, tumbling, Type II or Type III hardcoat anodizing, powder coating, nickel plating, or manual mirror-polishing all require extra handling, shipping to specialized sub-contractors, and additional QA inspections. Heat treating a steel part to increase its Rockwell hardness scale also adds cost and can sometimes warp the part, requiring a final, highly expensive precision grinding operation to bring the part back into tolerance.

Cost Breakdown: A Technical Comparison Matrix

To better visualize and understand how different engineering factors influence the final cost of a CNC machined part, refer to the technical comparison table below.

Frequently Asked Questions (FAQ)

Conclusion: Optimizing Your Machining Strategy

The persistent question of “Why are CNC machined parts so expensive?” ultimately resolves into a complex matrix of heavy capital investment, highly skilled engineering labor, the unyielding physical limitations of material science, and the strict demands of precision mechanical engineering. By deeply understanding these primary cost drivers—setup time, material waste, tight tolerances, and machine complexity—you can approach your next engineering project with a mindset geared toward Design for Manufacturability (DFM). Strategically optimizing your CAD designs will ensure you get the immense structural integrity and repeatable precision of CNC machining, without paying for unnecessary overhead or over-engineered features.

For modern manufacturing facilities, machine shops, and industrial automation lines, CNC machine downtime is one of the most expensive operational bottlenecks. Industry statistics show that unexpected machinery downtime can cost manufacturing facilities anywhere from $250 to over $1,000 per hour. When a critical component fails—whether it is a main system processor, a servo drive, or a feedback sensor—getting your machine back online quickly requires finding a reliable supplier who can deliver genuine, functional parts without delay.

Sourcing replacement components online has become the industry standard, offering speed and access to international stock. However, the online marketplace is also filled with counterfeit items, poorly refurbished units, incorrect hardware revisions, and dropshippers with zero technical expertise. To safeguard your operations, you need a systematic approach. This ultimate checklist guides you through identifying, evaluating, and purchasing high-quality CNC parts online with absolute confidence.

1. Understand the Anatomy of Your CNC Machine’s Electronics

Before beginning your online search, you must clearly identify the category of the failed component. CNC systems are highly integrated ecosystems where components from different brands must communicate via proprietary protocols. The electronics in a typical industrial CNC machine can be categorized into four primary zones:

A. CNC Control Systems and Main Boards

The control system acts as the brain of your machine tool. It interprets G-code programs, executes interpolation calculations, and manages auxiliary functions. When replacing parts of your main hardware, you are typically dealing with complete CNC control systems, sub-boards, CPU cards, and input/output modules.

Because these systems run proprietary firmware, matching the precise manufacturer is mandatory. CNC systems built around dedicated Fanuc controllers or Siemens controllers require absolute software and hardware compatibility. Swapping a main board with a slightly different suffix code can result in system integration errors or boot failures.

B. Motion Control: Servo Motors and Drives

The transition from digital commands to physical motion occurs via the drive train. High-performance CNC machines rely on brushless servo motors and matched drive units. These drives, often referred to as amplifiers and drive inverters, modulate the electrical current supplied to the motor to control speed, torque, and position with sub-micron accuracy. When buying these parts online, remember that the drive firmware must match the motor’s winding characteristics and encoder type.

C. Feedback Devices: Rotary Encoders

To operate in a closed-loop system, the CNC controller must continuously know the exact position of the machine axes. This feedback loop is maintained by high-resolution rotary encoders. These sensors are highly sensitive optoelectronic or magnetic devices.

Understanding the differences between these feedback components is critical before purchasing. For a comprehensive overview of how they transmit signal data, review our article explaining the function of an encoder in industrial automation. Additionally, operating environments dictate the type of encoder technology needed; for example, heavy-duty applications might benefit from analyzing a magnetic vs optical encoders comparison to choose the most resilient sensor for oil-mist or high-vibration conditions.

D. Infrastructure: Power Supplies, Cables, and Fuses

The stability of a CNC machine is only as good as its underlying electrical infrastructure. Unstable voltage rails can cause processors to lock up, while failing insulation in industrial cables leads to intermittent axis communication dropouts. Furthermore, high-frequency switching circuits inside power supplies must be shielded to prevent electromagnetic interference (EMI). Lastly, protecting these sensitive boards requires placing high-speed, semiconductor-grade electrical fuses along the power lines to prevent catastrophic damage during overcurrent events.

2. The Ultimate Checklist for Sourcing CNC Parts Online

To minimize the risk of buying incompatible, dead-on-arrival (DOA), or counterfeit CNC parts, run every online store and product listing through this operational checklist:

✔ Double-Check Manufacturer Part Numbers

Industrial brands like Fanuc, Siemens, and Mitsubishi use highly structured alphanumeric part numbers. For instance, a Fanuc servo amplifier module part number might look like A06B-6079-H106. Every character in this sequence holds significance:

• The prefix denotes the product category.
• The middle segment identifies the specific frame size and generation.
• The suffix (e.g., H106) specifies the interface type, power rating, and internal software compatibility.

Never buy a part based solely on the visual appearance of the listing photo. Always contact the vendor to confirm that the physical label matches your original machine part number exactly.

✔ Assess Testing Practices

A high-quality online supplier does not simply pull a part off a dusty shelf and ship it. Look for vendors who explicitly detail their quality control (QC) procedures. For instance, servo drives should be tested on dedicated motor test rigs where they run under load for several hours. Feedback boards should have their pulses checked using an oscilloscope. If a seller cannot explain their testing protocol, treat the part as untested surplus, regardless of how clean it looks.

✔ Insist on Proper ESD Packaging

Integrated circuits, microcontrollers, and logic boards are highly vulnerable to static electricity. Safe shipping requires placing parts in sealed pink or metallic anti-static bags. Additionally, heavy metal parts like servo motors must be securely anchored inside double-walled corrugated boxes with molded foam-in-place inserts. Loose packaging can ruin a heavy encoder shaft or crack a drive housing during transit.

3. Key Differences: OEM vs. Refurbished vs. Aftermarket Parts

When searching for parts online, you will run into different condition types. Selecting the right class of product depends on your budget, machine age, and the criticality of the line.

1. New OEM (Original Equipment Manufacturer): These are brand new components manufactured by the original brand (e.g., Fanuc, Siemens). They offer the highest reliability but come with premium pricing and, in many cases, long lead times from official distributors.
2. Refurbished / Certified Surplus OEM: Excellent for keeping legacy CNC machines operational. These are original parts that have had their high-wear components (such as electrolytic capacitors, cooling fans, and relays) replaced. They are then fully tested. This is often the best value option, offering high reliability at a fraction of the cost of new parts.
3. Aftermarket Alternatives: These are built by third-party manufacturers to replace OEM parts. While highly cost-effective for simple consumables like mechanical handwheels (such as Manual Pulse Generators (MPG)), caution is advised when using aftermarket alternatives for complex electronic control boards or drive systems due to compatibility issues with OEM diagnostic protocols.

Summary: Minimizing Production Downtime

When a CNC machine breaks down, the pressure to get it running again can lead to rushed buying decisions. By sticking to this systematic checklist—verifying part numbers down to the last digit, confirming physical stock status, ensuring proper packaging, and choosing vendors who stand behind their inventory with real warranties—you protect your machinery, your budget, and your delivery schedules. Sourcing parts online does not have to be a gamble when you buy from established industrial automation specialists.

In the demanding world of industrial automation and CNC machining, achieving micron-level precision is non-negotiable. Closed-loop control systems rely on real-time feedback from rotary encoders to monitor position, speed, and direction. However, when these systems are deployed in harsh environments—characterized by heavy vibration, extreme temperatures, cutting fluids, and airborne debris—the choice of encoder technology becomes a critical factor in machine reliability and uptime. This comprehensive guide explores the fundamental differences between magnetic and optical encoders, helping engineers and maintenance professionals select the optimal solution for extreme industrial conditions.

Understanding the Core Technologies

Before comparing their performance in harsh environments, it is essential to understand the underlying physical principles that govern optical and magnetic encoders.

The Mechanics of Optical Encoders

Optical encoders are the traditional standard for high-precision motion feedback. They operate using a light source (typically an LED), a rotating disk with precisely etched transparent and opaque lines, and a photodetector assembly. As the motor shaft rotates, the disk interrupts the light beam. The photodetector converts these light pulses into electrical signals.

The mathematical resolution of an optical encoder is determined by the number of lines etched onto the disk, known as Pulses Per Revolution (PPR). The angular resolution, denoted as $\theta_{res}$, is calculated by the formula:

$$\theta_{res} = \frac{360^\circ}{\text{PPR}}$$

Because these lines can be etched at a microscopic scale using photolithography, optical encoders can achieve exceptionally high resolutions and accuracies, making them ideal for precise servo motor control.

The Mechanics of Magnetic Encoders

In contrast, magnetic encoders utilize variations in magnetic fields to determine position. The core components consist of a magnetized rotor (often a wheel with alternating north and south poles) attached to the shaft, and a specialized sensor array—typically utilizing Hall-effect or Magnetoresistive (MR) technology—positioned close to the magnetic wheel.

As the wheel rotates, the sensors detect the changing magnetic flux. The sensor outputs a sinusoidal signal, which is then processed and interpolated by internal electronics to generate standard digital quadrature pulses or absolute position data. The relationship between the magnetic pole pitch ($\lambda$) and the sensor geometry determines the base accuracy before electronic interpolation.

Defining a “Harsh Environment” in Industrial Automation

Standard manufacturing floors are relatively clean and climate-controlled. However, true industrial automation—such as heavy milling, metal stamping, and foundry operations—subjects equipment to extreme stressors:

• Particulate Contamination: Metal shavings, carbon dust, and wood powder.
• Liquid Ingress: Coolants, cutting oils, lubricants, and washdown chemicals.
• Mechanical Shock and Vibration: High-impact forces from stamping presses or the constant chatter of aggressive CNC roughing operations.
• Thermal Extremes: High heat from nearby furnaces or continuous heavy-duty motor operation.

Head-to-Head Comparison: Surviving the Extremes

When deployed in the environments described above, the physical differences between magnetic and optical technologies dictate their survival rates.

1. Susceptibility to Contaminants (Dust, Oil, and Moisture)

Optical Encoders: This is the Achilles’ heel of optical technology. If oil mist, condensation, or fine dust breaches the encoder housing and settles on the optical disk, it can scatter or block the LED light. This leads to missed pulses, positioning errors, or complete signal loss. While high IP-rated enclosures can mitigate this, they add cost and bulk.

Magnetic Encoders: Magnetic fields pass effortlessly through non-ferrous contaminants. Dust, dirt, oil, and water have zero effect on the magnetic flux reaching the Hall-effect sensors. For heavily contaminated environments, magnetic encoders are inherently superior and require less complex sealing.

2. Shock and Vibration Tolerance

Optical Encoders: Traditional optical encoders often use glass disks for high resolution. Under heavy shock or severe vibration, a glass disk can shatter, instantly destroying the encoder. Even if shatterproof plastic or metal disks are used, extreme vibration can misalign the precise optical gap between the LED and the detector.

Magnetic Encoders: With fewer fragile internal components and a completely solid-state sensor design, magnetic encoders excel in high-vibration applications. They are heavily utilized in heavy mobile equipment and aggressive stamping operations.

3. Temperature Extremes and Condensation

Optical Encoders: Extreme temperature fluctuations can cause condensation to form on the optical disk, blinding the sensor. Additionally, the LEDs used in optical encoders have a temperature-dependent lifespan and output intensity, which can degrade in extreme heat.

Magnetic Encoders: Magnetic sensors generally possess a wider operating temperature range. While extreme heat can affect magnetic field strength, modern ASICs (Application-Specific Integrated Circuits) within the encoder actively compensate for thermal drift, maintaining reliable operation.

4. Resolution and Accuracy Limits

Optical Encoders: When pure, unadulterated accuracy is required—such as in coordinate measuring machines (CMMs) or highly precise control systems—optical encoders win. They offer higher spatial resolution and lower positional jitter.

Magnetic Encoders: Historically, magnetic encoders had lower resolution and suffered from “magnetic hysteresis.” However, modern interpolation algorithms have drastically narrowed this gap. While perhaps not suited for sub-micron laboratory equipment, modern magnetic encoders are more than capable of handling the vast majority of industrial CNC positioning tasks.

Integration and Upgrades

When selecting a replacement encoder, compatibility with the existing drive amplifier is paramount. Leading brands like Fanuc and Mitsubishi have proprietary communication protocols. If your Fanuc controller triggers an alarm due to encoder failure in a harsh environment, upgrading to a heavily sealed or magnetic equivalent must be done carefully to ensure protocol compatibility. Always verify that the encoder cables are heavily shielded to prevent electromagnetic interference (EMI), which can corrupt both magnetic and optical signals.

Technical Comparison: Magnetic vs. Optical Encoders

In the high-stakes realm of industrial automation, precision is not merely a goal; it is an absolute requirement. Whether guiding the robotic arm of an automotive assembly line or dictating the micron-level movements of a multi-axis CNC machine, closed-loop feedback systems rely on sophisticated sensors to monitor position, velocity, and direction. At the heart of this feedback loop lies the encoder. But what exactly is the function of an encoder in industrial automation systems?

Fundamentally, an encoder is an electro-mechanical device that converts mechanical motion (rotary or linear) into an electrical signal that can be read by control devices, such as PLCs (Programmable Logic Controllers), PACs, or CNC controllers. These digital signals provide real-time data regarding the exact position, speed, and direction of a mechanical moving part, enabling the system to make instantaneous corrections and maintain absolute control.

Core Principles: The Mathematics of Motion Tracking

To understand the function of an encoder, we must look at the mathematical principles governing its operation. Encoders generate pulses corresponding to mechanical displacement. For a rotary encoder, the resolution is defined by the number of Pulses Per Revolution (PPR). The angular resolution, $\theta_{res}$, can be calculated as:

$$\theta_{res} = \frac{360^\circ}{\text{PPR}}$$

When measuring angular velocity ($\omega$), the system counts the number of pulses ($\Delta P$) over a specific time interval ($\Delta t$). The formula is expressed as:

$$\omega = \left( \frac{\Delta P}{\text{PPR}} \right) \times \left( \frac{60}{\Delta t} \right) \text{ RPM}$$

This rapid translation of mechanical motion into quantifiable mathematical data allows automation systems to achieve synchronization, execute complex interpolations in CNC machining, and prevent catastrophic mechanical collisions.

Types of Encoders in Automation

The industrial landscape requires various encoder configurations to accommodate diverse mechanical architectures and environmental conditions.

1. Rotary vs. Linear Encoders

Rotary Encoders: These are coupled directly to the shaft of a servo motor or a rotating mechanical component. They measure angular displacement. Rotary encoders are ubiquitous in robotics, spindle motors, and conveyor systems.

Linear Encoders: Instead of a rotating disk, linear encoders utilize a straight scale. They are mounted along the axes of machine tools, reading the direct linear displacement of the machine bed or tool head. This eliminates errors caused by ball screw backlash, providing a true reading of the physical position.

2. Incremental vs. Absolute Encoders

Incremental Encoders: These generate a continuous stream of pulses as long as motion occurs. They provide relative position information, meaning they track how far the shaft has moved from a starting point. If power is lost, the incremental encoder loses its position reference and must be sent back to a “home” position upon restart. They typically output A and B channels with a $90^\circ$ phase shift (quadrature) to determine direction.

Absolute Encoders: Absolute encoders assign a unique digital word (often utilizing Gray Code or binary) to every specific position. When the system powers up, the absolute encoder immediately knows its exact location without needing to home the machine. This is critical for complex multi-axis robotics and heavy industrial machinery where homing routines are impractical or dangerous.

3. Optical vs. Magnetic Sensing Technologies

The internal mechanism that reads the motion can also vary. Optical encoders use an LED light source shining through a patterned disk onto a photodetector. They offer the highest resolution and accuracy but are sensitive to dust, oil, and vibration. Magnetic encoders use sensors (like Hall-effect sensors) to read variations in a magnetic field generated by a rotating magnetized wheel. While generally having slightly lower resolution than optical variants, magnetic encoders are highly rugged and resistant to harsh industrial environments.

Integration with Servo Motors and Drives

The synergy between an encoder and a servo system is the backbone of modern automation. When a Fanuc controller, for instance, commands a Fanuc servo motor to move to a specific coordinate, the motor begins to rotate. The integrated encoder immediately begins transmitting pulse data back through specialized encoder cables to the servo drive amplifier.

The drive compares the target position (the command) with the actual position (the encoder feedback). The difference between these two values is the “following error,” represented mathematically as:

$$E(t) = P_{target}(t) – P_{actual}(t)$$

The servo drive continuously adjusts the current and voltage supplied to the motor to drive the error $E(t)$ toward zero, executing this loop thousands of times per second.

Prominent Encoder Brands in the Industry

Choosing the right encoder often involves aligning with the ecosystem of your existing control architecture. Leading manufacturers have developed proprietary encoder communication protocols to ensure seamless integration:

• Fanuc: Renowned for their highly durable proprietary serial encoders, heavily utilized in their CNC systems and robotic arms. Explore Fanuc encoders for direct replacements.
• Mitsubishi: High-resolution absolute encoders are a staple of the MELSERVO series, providing exceptional smoothness and accuracy. See our range of Mitsubishi encoders.
• Tamagawa: A leading OEM provider of motion control sensors, highly respected for their precision resolvers and encoders used across various robotic applications. Discover Tamagawa encoders.

Technical Comparison: Incremental vs. Absolute Encoders

Maintenance and Troubleshooting Encoder Issues

Despite their sophisticated design, encoders are subjected to harsh conditions that can lead to failure. Common symptoms of encoder failure include motor runaway, positioning errors, rough motor operation, or specific drive alarms (e.g., Fanuc Alarm 300 or 400 series).

When troubleshooting, first verify the integrity of the encoder cables. Vibration can loosen connectors or cause internal wire breaks, leading to intermittent signal loss. Secondly, ensure the mechanical coupling between the encoder and the motor shaft is secure; a slipping coupling will result in inaccurate position data. For optical encoders exposed to coolant or oil mist, internal contamination of the optical disk can disrupt the signal, requiring professional refurbishment or replacement.
