Specifications:

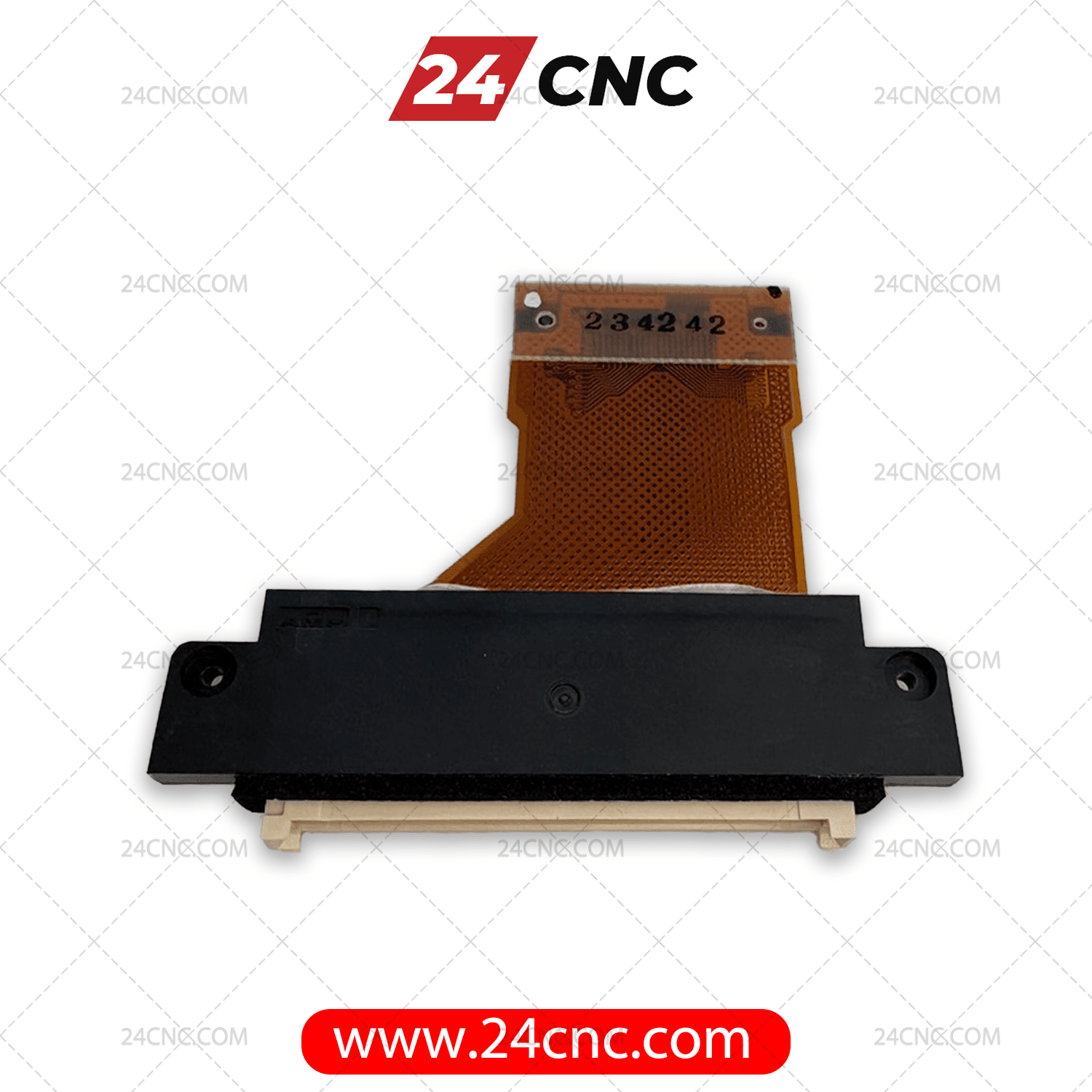

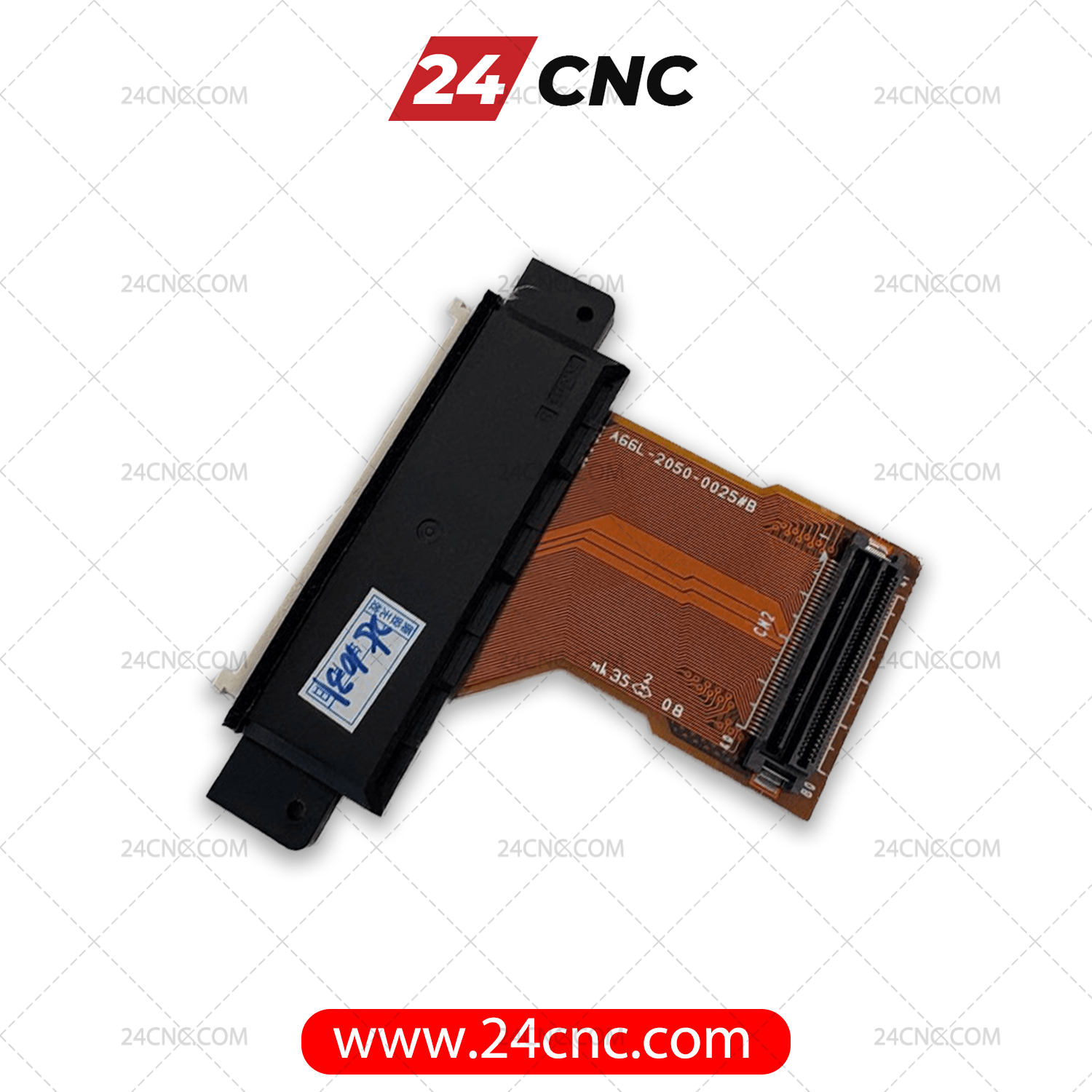

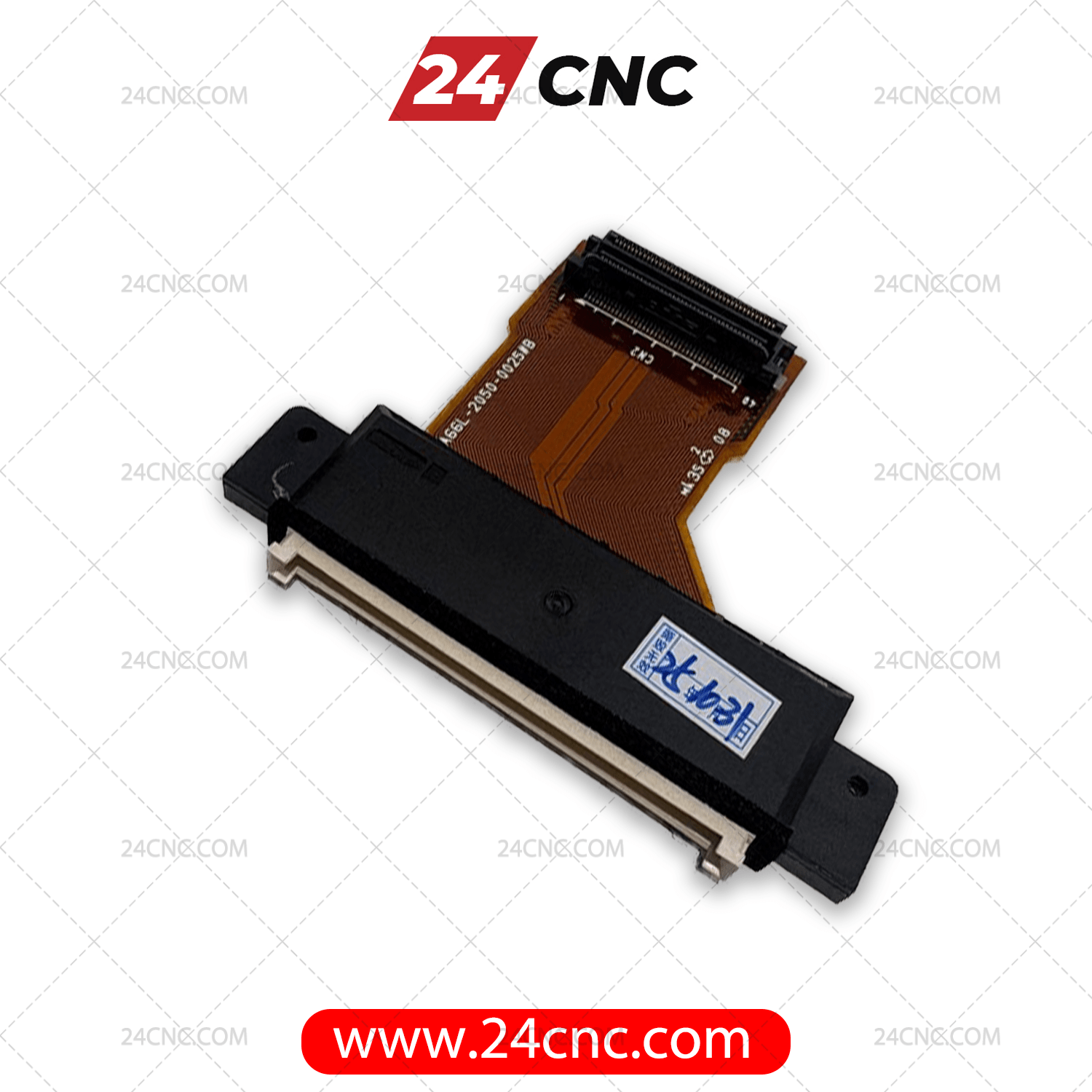

- Product: Card Slot
- Brand: FANUC
- Model: A66L-2050-0025#B
- Dimensions: Approx 7mm × 6.5cm × 8cm
- Weight: Approx. 100g
- Includes: Card Slot + FANUC Wide Cable
Explanations about the card slot
There is a PCMCIA card slot (location) with a cable that is used on FANUC CNC controllers.
That is, the part where the CF/PCMCIA memory card is inserted to transfer the CNC program.
This part is usually installed on the operator panel and is connected to the main control board with a flat cable.
Transferring programs via CF/PCMCIA memory card – having a card port on the front of the device and connecting the card port from the main board to the operator panel is one of the uses of this card.
It should be noted that this card has two versions A and B, which must be selected based on the type of control specifications that are compatible with the machine system in question:
A66L-2050-0025#A / A66L-2050-0025#B
Differences between Version A and B
- Compatibility with different FANUC controllers
Version #B is designed specifically for 16i / 18i / 21i controllers.
Version #A is associated with models such as “Oi MATE-TC” in some supplier information.
- Connector / Cable Type and Pins
Suppliers indicate that Model A and Model B have a “different connector”.
- Physical Application
The Model B cable / plug is designed to connect to the CF board in older controllers such as 16i / 18i / 21i.
Model A is also used for the PCMCIA slot in the operator panel (or LCD unit).
