Specifications:
- Product: IGBT Module
- Brand: EUPEC
- Model: FP10R06KL4
- Operating Voltage: 600V DC
- Output Current: 12A

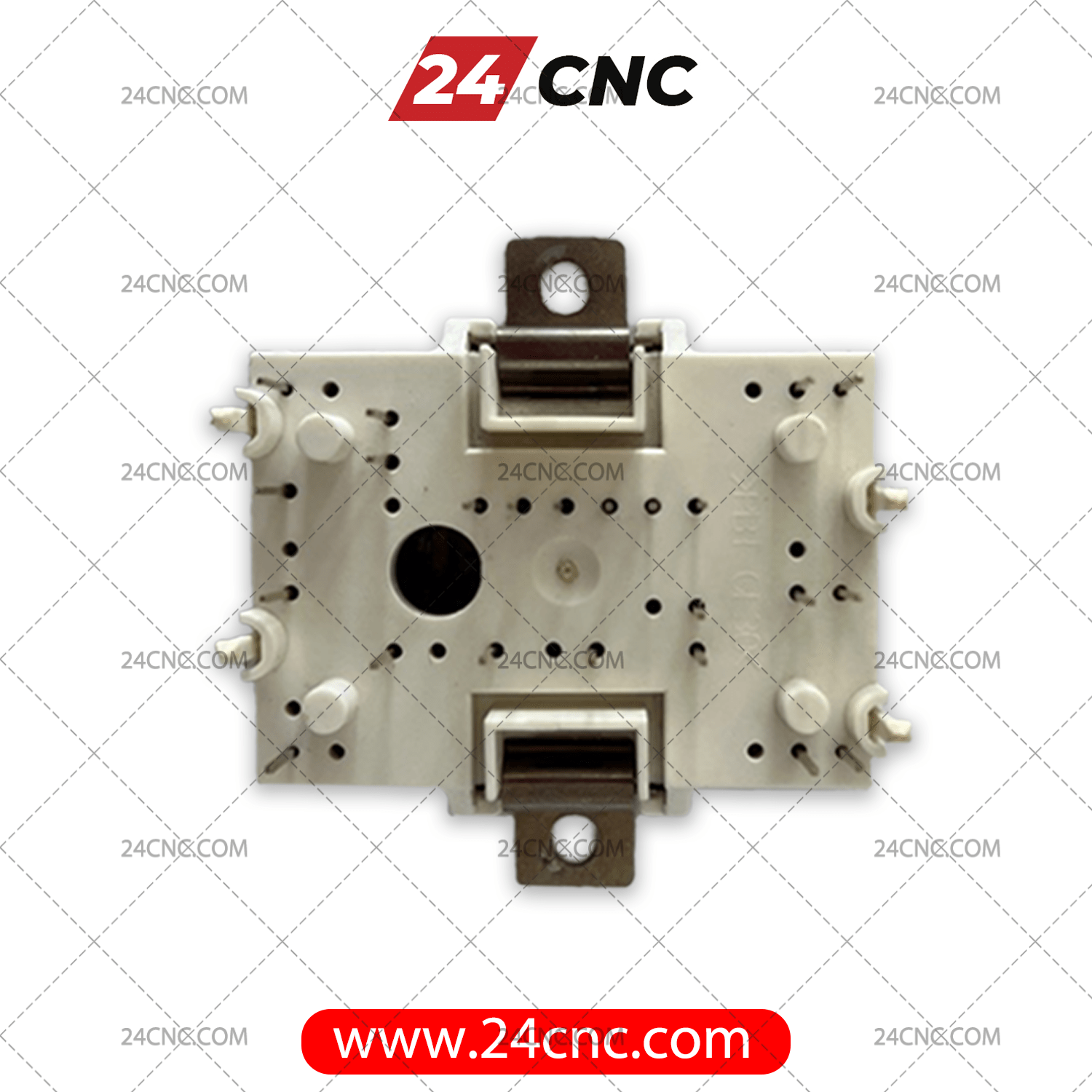

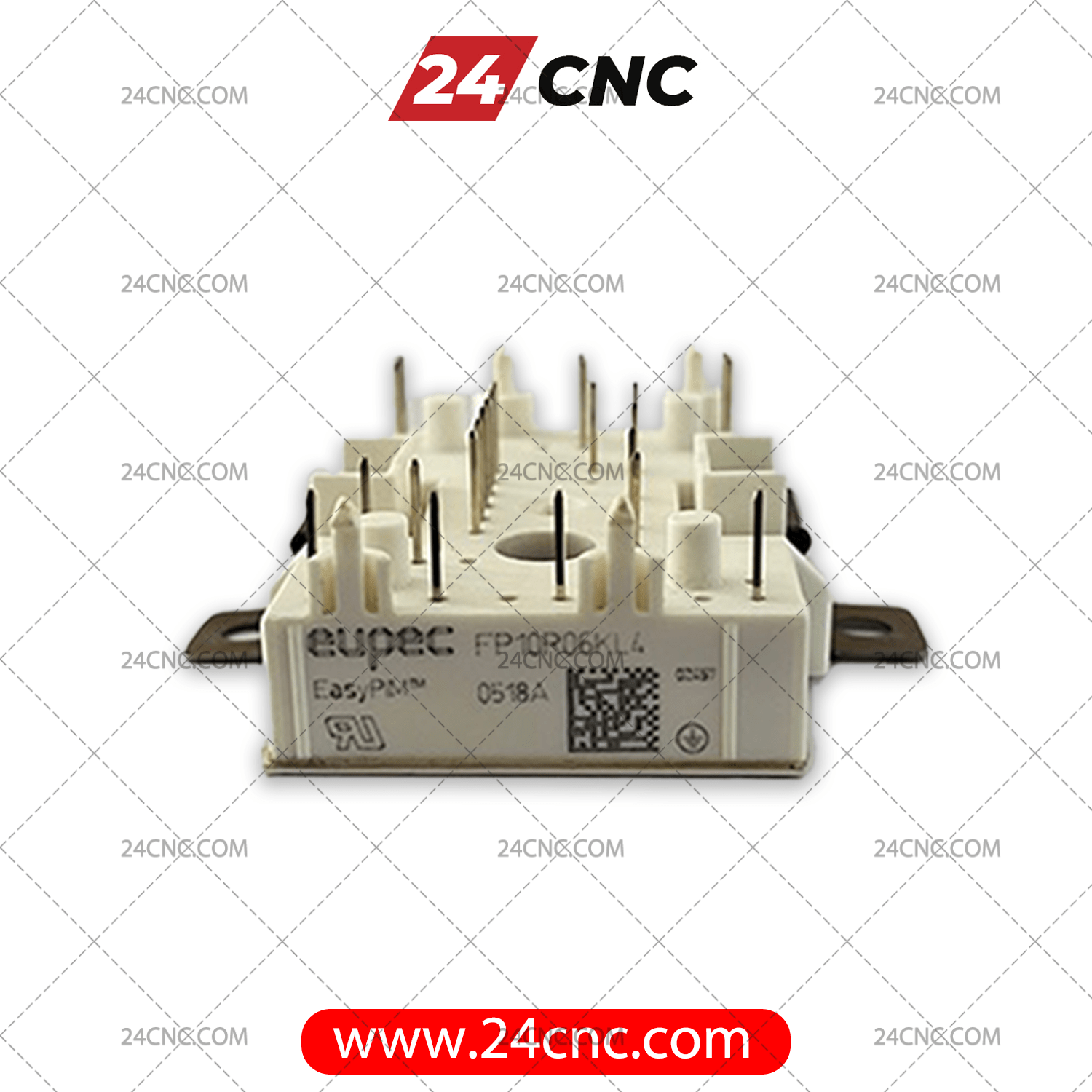

Introducing the EUPEC FP10R06KL4 IGBT Module
The FP10R06KL4 IGBT module is one of the powerful and high-quality products of EUPEC, designed for various drive, inverter and power system applications. With an operating voltage of 600 V and a current of 16 A, this module is a reliable option for precise power control and performance optimization in semiconductor power circuits.
Combined transistor and diode performance with IGBT technology
The FP10R06KL4 module uses the IGBT (Insulated Gate Bipolar Transistor) structure, which offers the advantages of power transistors and diodes at the same time. This technology reduces energy losses, increases efficiency and improves performance in high-frequency switching. The combination of the MOSFET transistor at the input and the bipolar transistor at the output makes this module ideal for power control in various loads.
Hex Configuration for Greater Flexibility
This model features a Hex configuration, meaning it has six IGBT switches that allow for three-phase bridges. This configuration allows engineers to design advanced drive systems with the smallest possible footprint. This advantage is very useful in the design of three-phase inverters and motor control systems.
High operating voltage and thermal tolerance
The FP10R06KL4 module is designed with a maximum collector-emitter voltage of 600 V, allowing it to operate reliably in high-power and industrial systems. It also has an operating temperature range of -40 to +125 °C, making it suitable for use in harsh and variable environmental conditions.
Collector Current and Saturation Voltage
The module has a collector current of 16 A, which provides the ability to pass high current for resistive, inductive and mixed loads. The collector-emitter saturation voltage is only 1.95 V, which indicates low conduction losses and optimal performance when the module is on. This feature plays an important role in reducing heat generation and increasing efficiency.
Low power dissipation and stable thermal performance
One of the key advantages of the FP10R06KL4 module is its low power dissipation of 55 W at maximum performance. This loss level causes the module to generate less heat during operation and does not require a complex cooling system. The appropriate thermal design of this module ensures a long service life and uninterrupted operation.
Robust structure and high reliability
EUPEC has used high-quality raw materials and state-of-the-art technologies in the design and manufacture of this module. The module body is made of heat and impact resistant material, and its internal connections are optimized to withstand current and voltage fluctuations. This design increases the lifespan and reduces the risk of failure in industrial conditions.
Suitable for a variety of industrial applications
The FP10R06KL4 module is used in a wide range of industrial equipment such as inverters, motor drives, UPSs, switching power supplies, welding systems and industrial chargers. It is also a professional choice in industrial automation applications that require accurate and reliable power control.
Trusted EUPEC Brand
EUPEC is one of the leading European brands in the field of power semiconductor production, which now operates under the INFINEON group. By focusing on new technologies in the manufacture of IGBT modules, this company has been able to capture a high share of the global market. High quality, strict quality tests and stable performance are the distinctive features of this brand’s products.
Conclusion
If you are looking for a reliable IGBT module with high power, standard operating voltage and professional configuration, the FP10R06KL4 module from the EUPEC brand is a great option for you. With stable performance, robust structure, low heat dissipation, and high temperature tolerance, this product is a professional choice for engineers and designers of industrial power systems.
