Specifications:
- Product: IGBT module
- Brand: FUJI
- Model: 6DI150A-060
- Part Number : A50L-0001-0209
- Maximum voltage: 600 V
- Continuous current: 150 A (at 80 ° C)
- Instantaneous current: 300 A
- Power consumption: about 800 W (for each transistor)
- Collector-emitter saturation voltage: maximum 2.3 V
- Operating temperature range: 150 ° C
- Structure: 6 internal transistors with free-wheeling diodes
Fuji IGBT Description

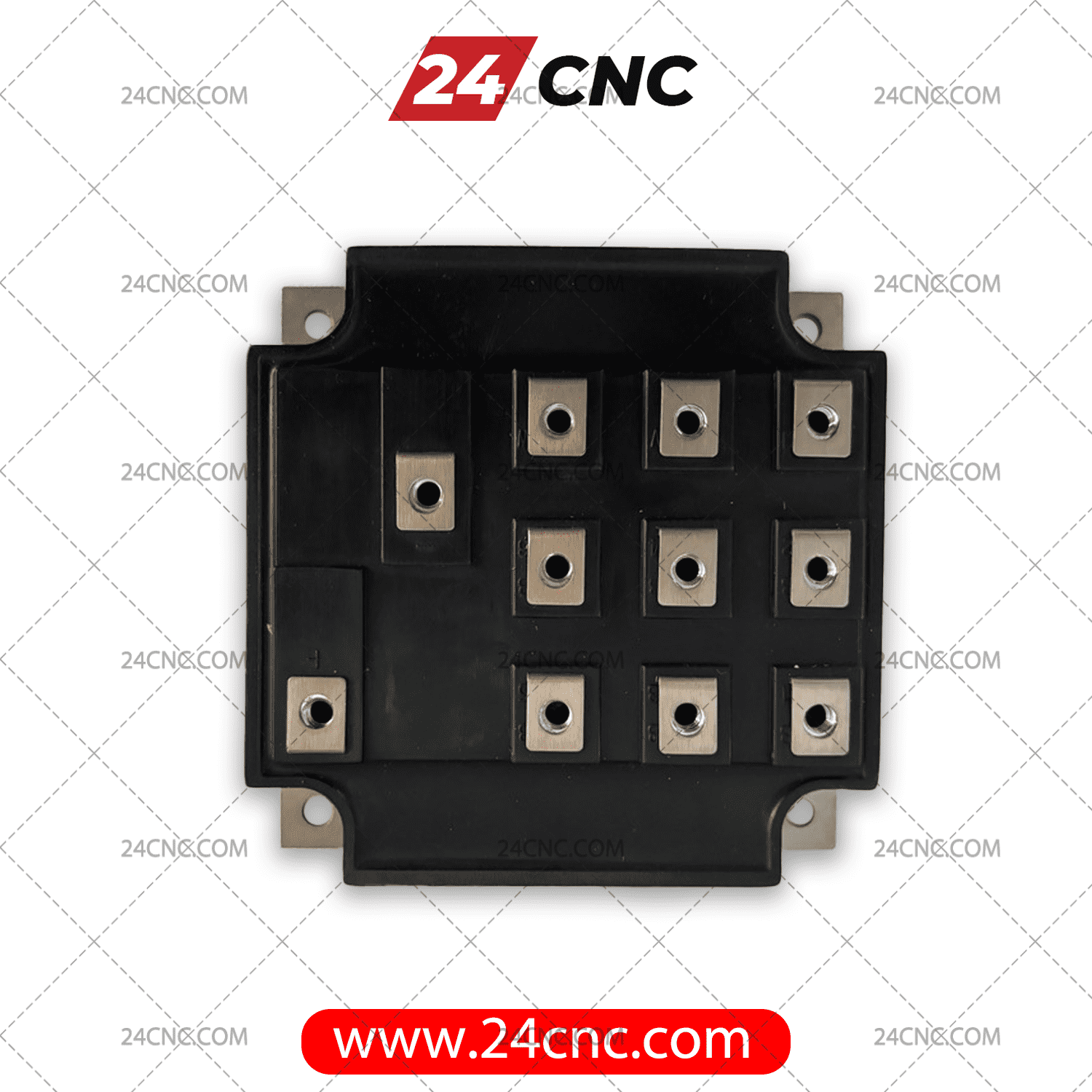

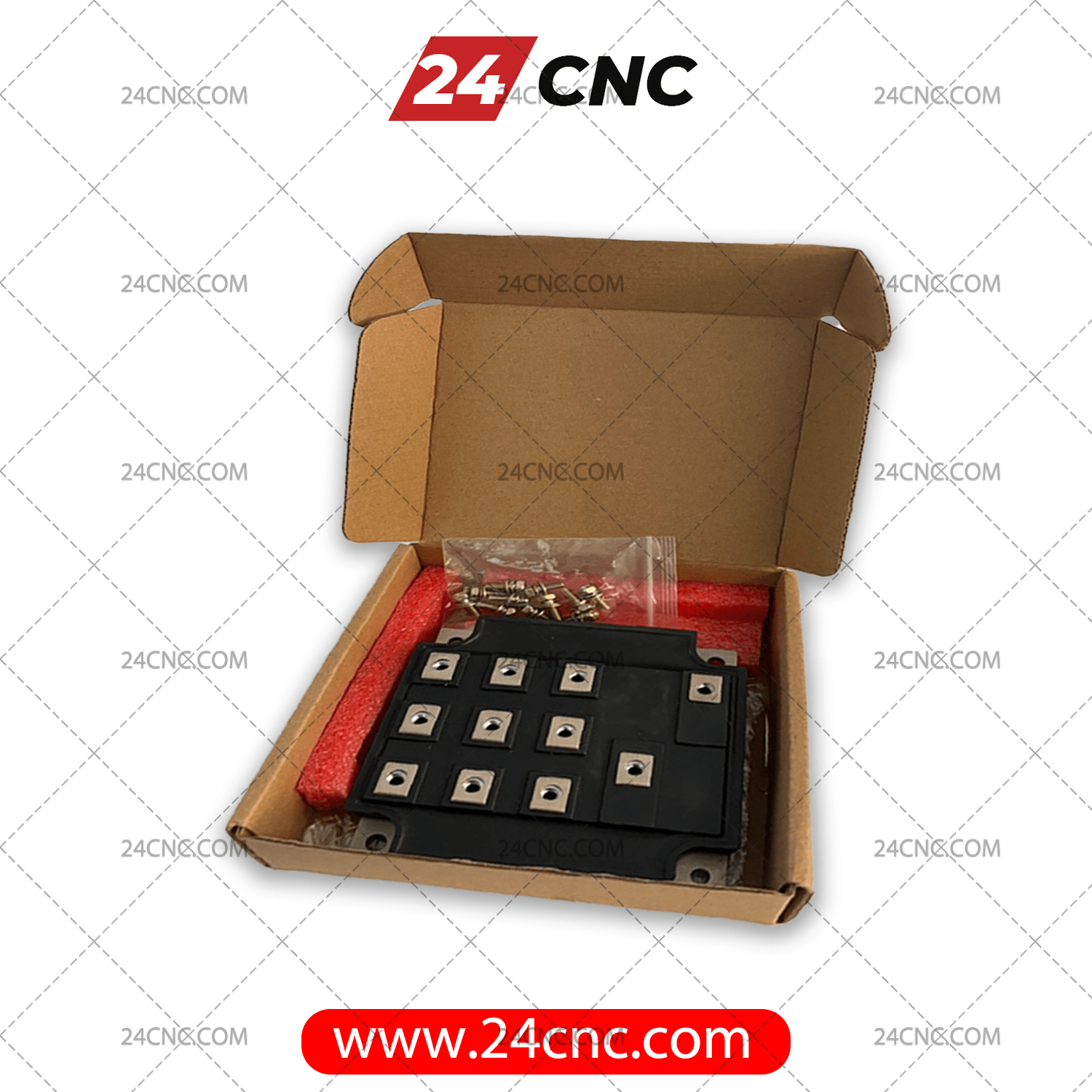

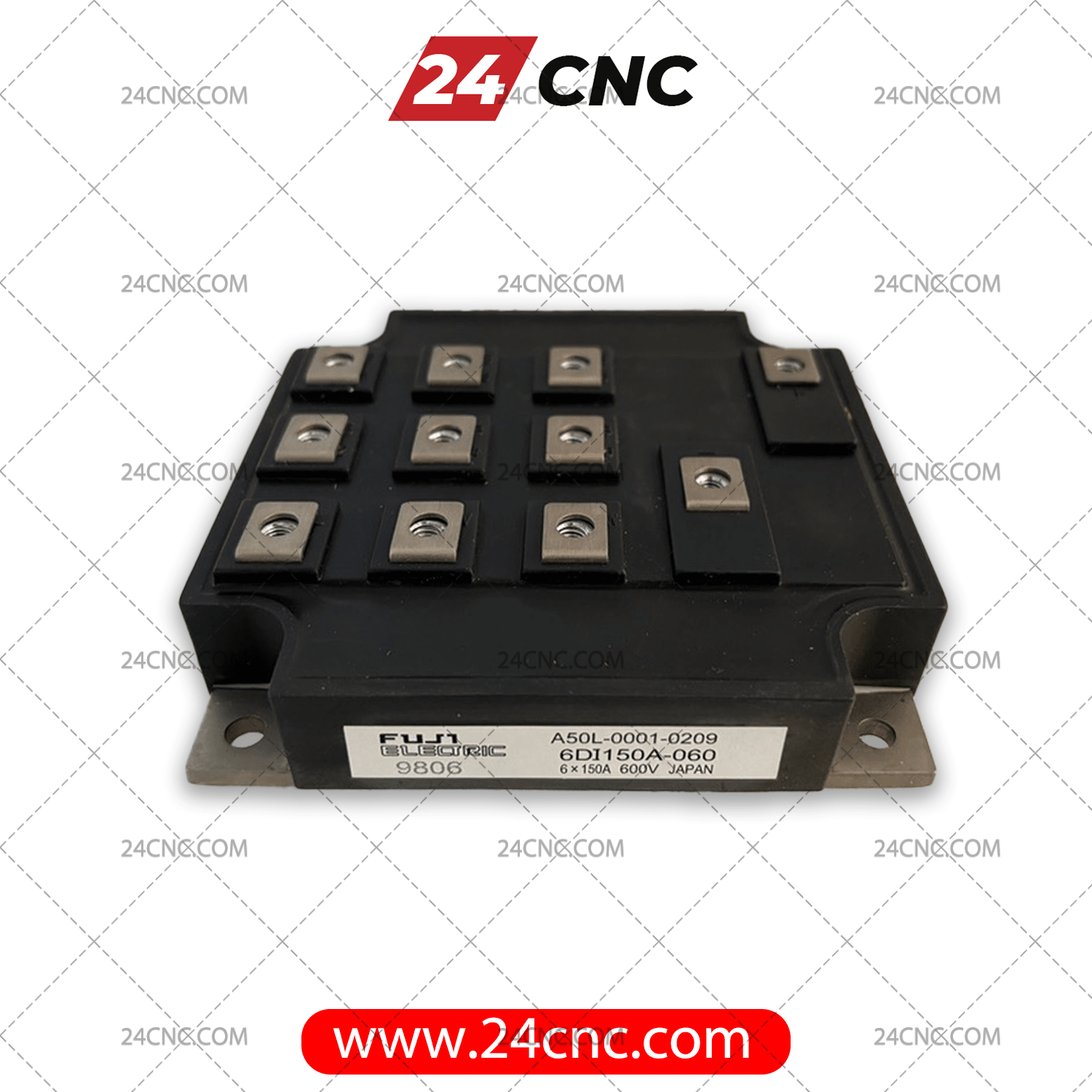

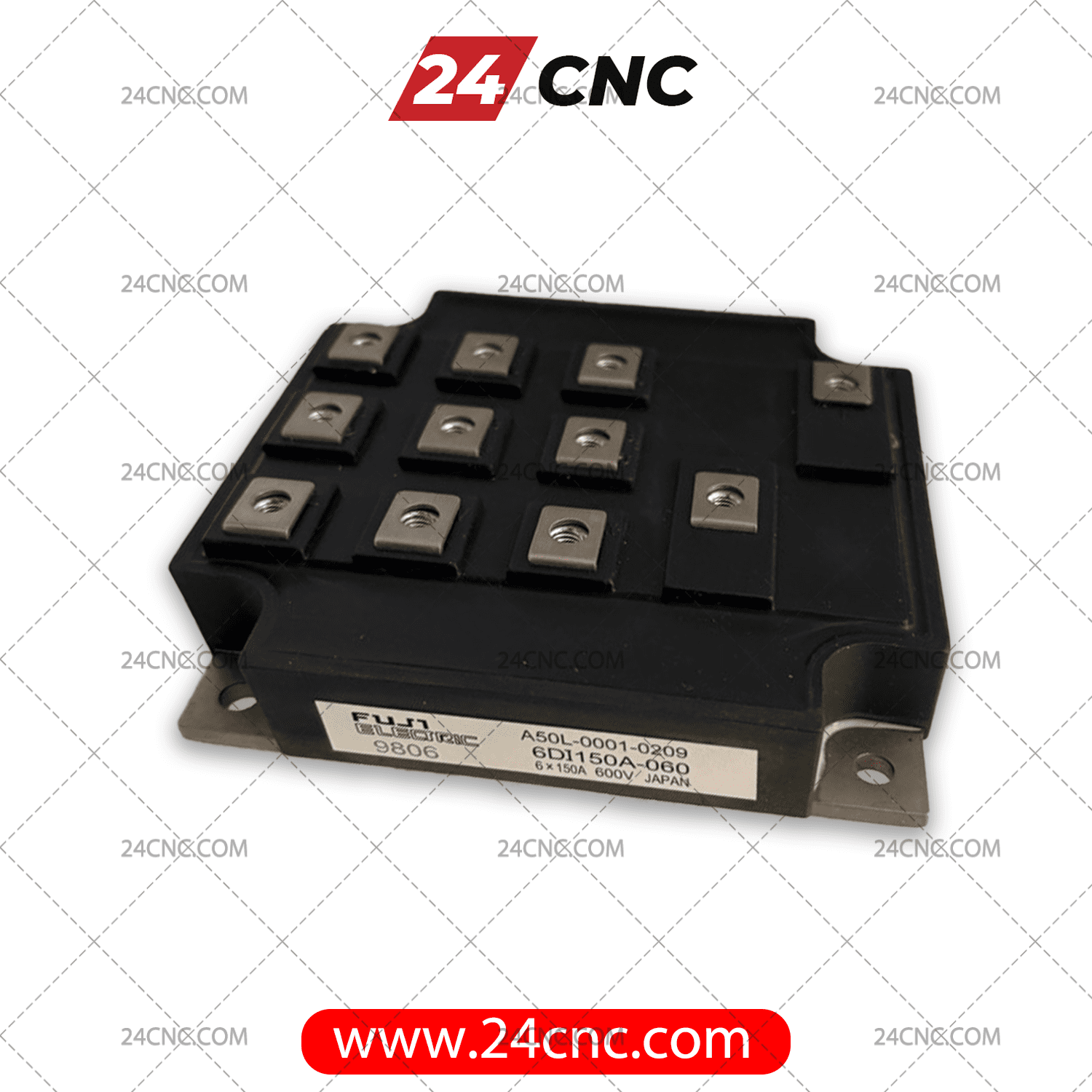

The 6DI150A-060 module is a 6-pack power module manufactured by Fuji Electric. It is widely used in CNC machines (such as Fanuc controllers), inverters, and industrial drives.
IGBT module features and applications
- Isolation: The module base is completely electrically isolated, allowing multiple modules to be mounted on a single heatsink.
- Switching speed: Optimized for medium and high frequency applications.
- Control of AC and DC motors (inverters).
- Uninterruptible power supplies (UPS).
- Servo systems in CNC machines.
