Specifications:
- Product: Cooling Fan
- Brand: SUNON
- Model: PMD1204PQB1-A
- Voltage: 12V DC
- Operating Voltage Range: 6 to 13.8 V
- Dimensions: 4 x 4 x 2.8 cm
- Rated Current: 0.720 A
- Power Consumption: 4.0 W
- Rotational Speed: 15,000 RPM (±15% tolerance)
- Airflow: 240 CFM
- Static Pressure: 1.34 in-H₂O
- Noise Level: 55.5 dB-A
- Bearing System: Precision Ball Bearing
- Connection Type: 3-wire
- Operating Temperature: -10°C to +70°C
- Special Features: Auto Restart; Speed Sensor (Tachometer) in 3-wire models

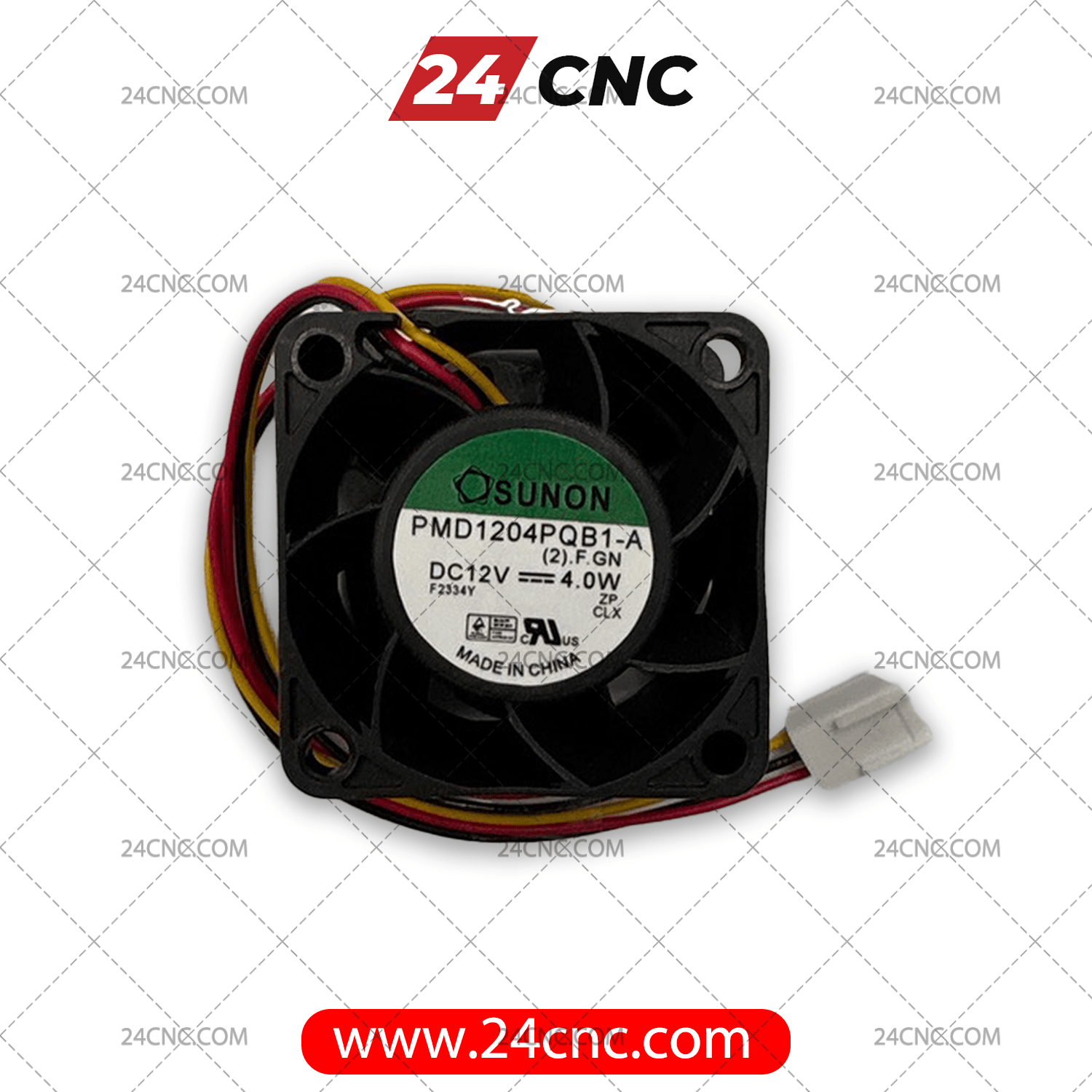

Description of the SUNON Cooling Fan
The SUNON PMD1204PQB1-A cooling fan is a high-performance cooling solution designed for industrial and professional applications.
Measuring 40x40x28 mm and operating on 12V DC, this fan utilizes precision ball bearings to achieve an impressive speed of 15,000 RPM, delivering an airflow of 24 CFM and strong static pressure.
This powerful performance, combined with UL and CE safety certifications, makes it an ideal and reliable choice for thermal management in sensitive network equipment, servers, and compact electronic devices.
