Electronic sockets and connectors are among the most important communication components in industrial and control circuits that are responsible for transmitting current, signals, or information between different parts of systems.
One of these key and widely used products is the Honda MR-20L 20-pin female socket (also known as MR20F).
Designed and manufactured by the reputable HONDA brand, this socket is used to establish precise, stable, and high-quality connections in industrial and electronic environments.
With its standard design and 20 contact pins, easy installation, long life, and compatibility with sockets of its kind, the MR-20L socket has become an ideal choice for a variety of CNC machines, control boar
Technical Features of MR-20L Socket

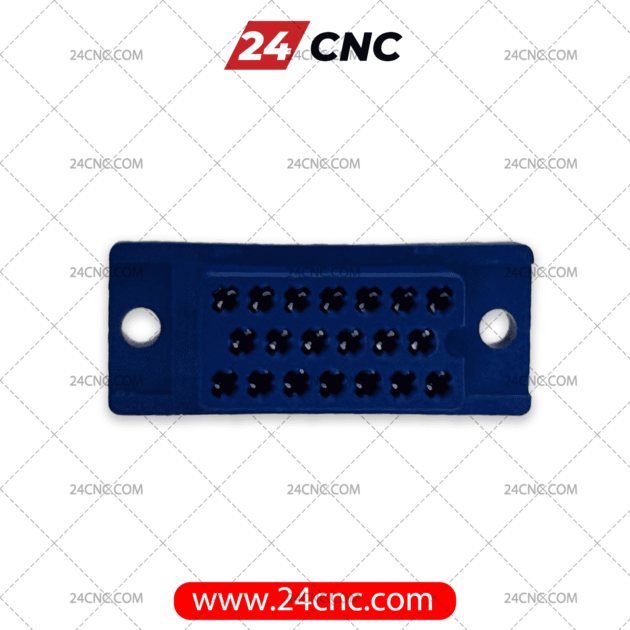

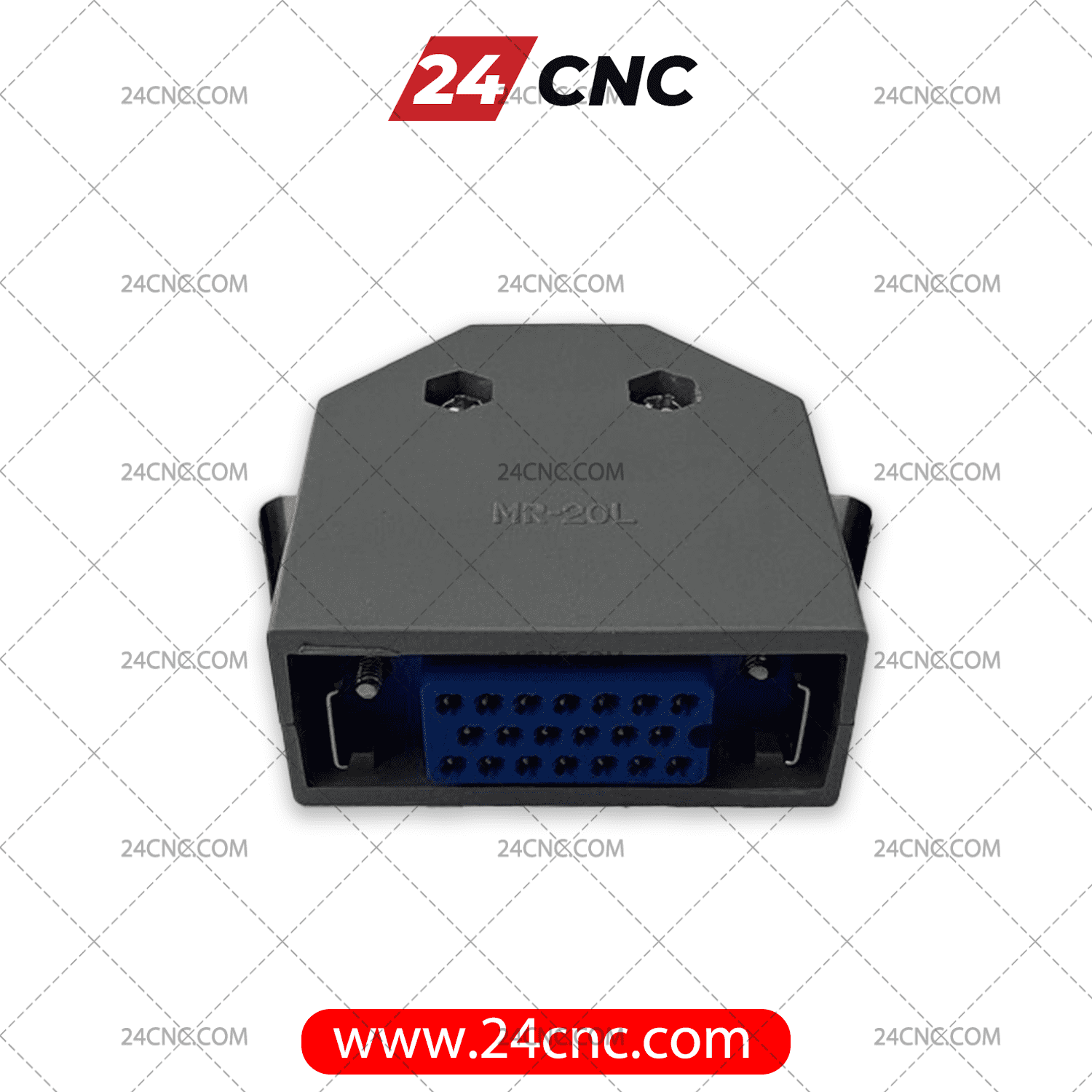

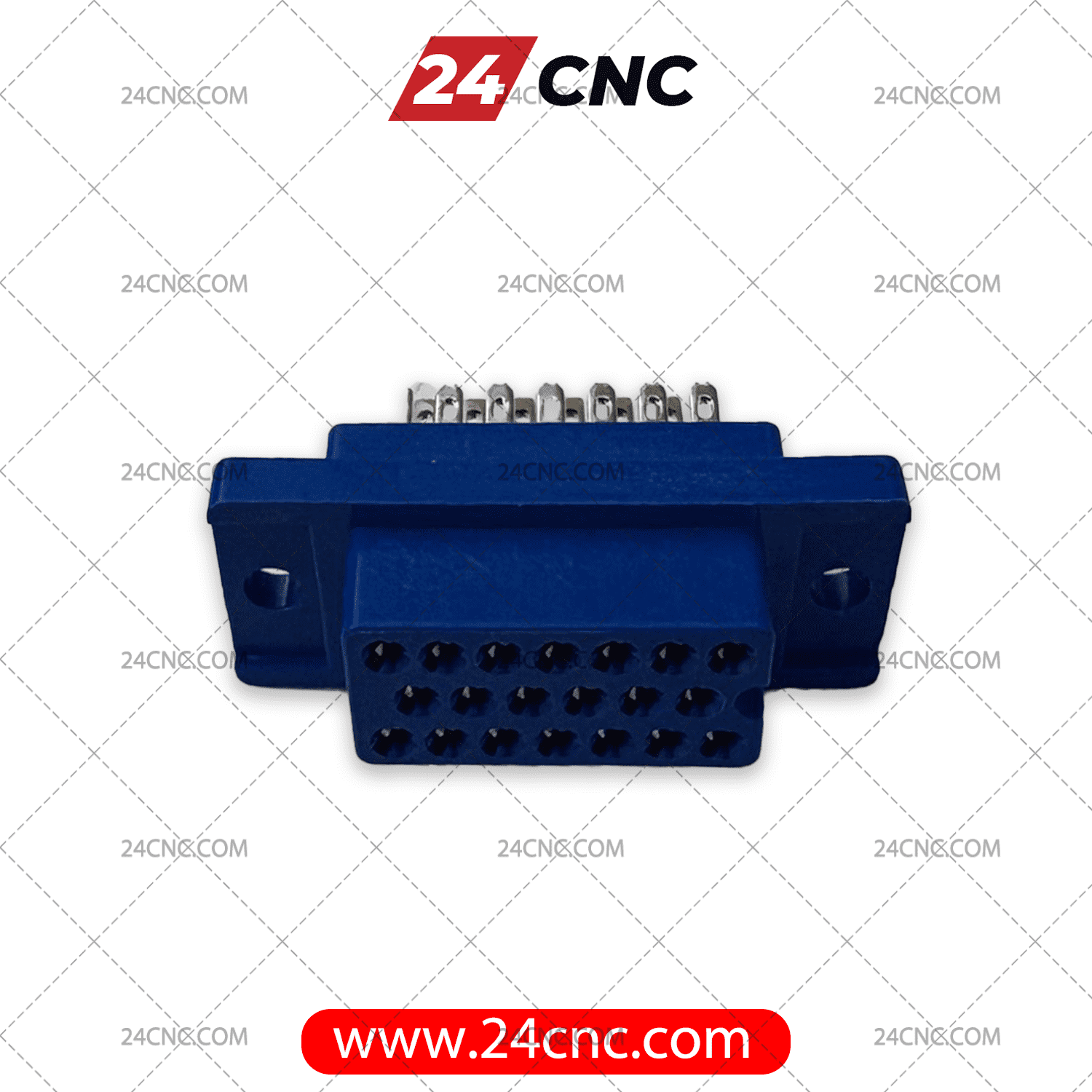

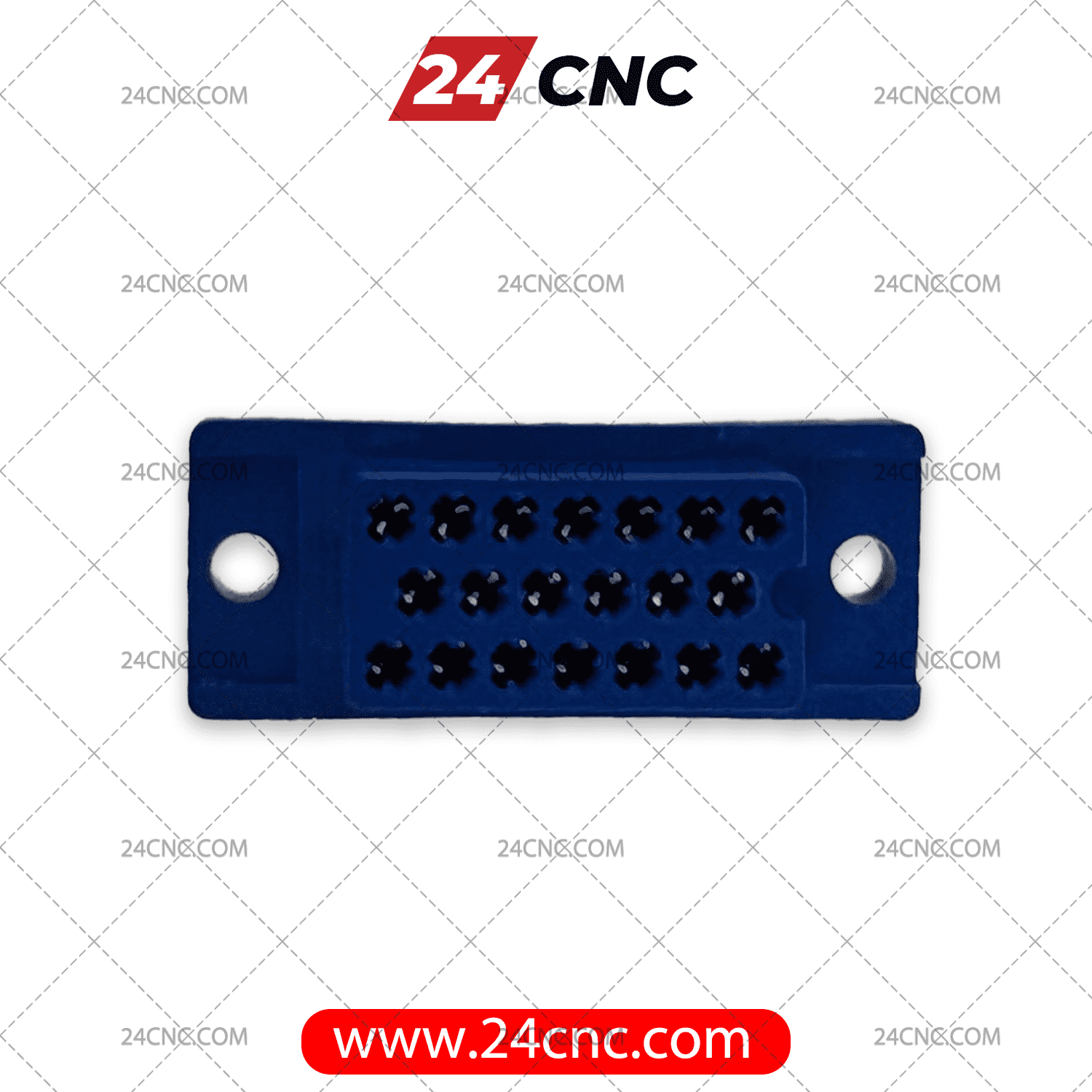

The MR-20L socket is actually a 20-pin female connector that mates with male sockets such as the MR-20M model.
Each pin of this socket is made of high-quality conductive materials that have very low resistance to current, which increases the accuracy and efficiency of data or electrical energy transmission.
This socket uses industrial plastic that is resistant to heat and mechanical stress for the outer body, while the pins are made of copper or brass alloys with tin or gold plating, which increases the life and stability of the connections.
Other technical features of this model include the following:
- Connection type: Female
- Number of pins: 20 contact pins
- Mechanical structure: Lockable (for secure connection)
- Body material: Heat and impact resistant plastic
- Installation type: Suitable for cable or board
- Compatibility with: MR-20M and similar male models
- Dimensions: Standard according to industrial applications
Applications of the MR-20L 20-pin socket
The MR-20L socket is widely used in various industries due to its standard design, high build quality and compatibility with a wide range of systems. Some of its most important applications are:
1. CNC machines
In computer numerical control (CNC) machines, where precise electrical connections for sensors, encoders, drivers and control boards are critical, the use of high-quality sockets such as the MR-20L increases performance stability. This socket plays an important role in transmitting command signals between the control board and the actuator components.
2. Industrial Automation Systems
In industrial automation, female sockets such as the MR-20L are used with male connectors to create reliable communication paths between various components including PLCs, HMIs, I/O modules, and drivers.
The presence of 20 pins allows for the simultaneous transmission of multiple digital or analog signals.
3. Telecommunications and medical equipment
In devices where high accuracy and very low error are essential, such as telecommunications or medical equipment, the MR-20L socket is an ideal choice for establishing safe and stable communication between modules and boards.
4. Industrial electronic boards
In all types of industrial boards that require multiple connections, these types of sockets have a special place. Quick installation, stable connection, and easy replacement are some of the features that have made the MR-20L socket popular in this field.
Advantages of the MR-20L female socket over similar models
The MR-20L socket from the HONDA brand has significant advantages over other similar products on the market, which has made it a premium choice among engineers, technicians, and industrial equipment manufacturers:
– Japanese manufacturing quality and high durability
The HONDA brand is well-known and high-quality in the field of industrial connectors and sockets, as well as in the automotive field. The use of high-quality raw materials, strict quality control, and compliance with international standards in the manufacture of this socket have increased its useful life.
– Ease of installation and replacement
The MR-20L socket is designed for installers and repairmen to easily connect or replace it without the need for specialized tools. The locking design also prevents the connection from becoming disconnected over time and due to vibration or movement.
– Suitable for use in harsh industrial environments
This socket is designed to withstand mechanical shock, moderate heat, and harsh industrial conditions. Therefore, it can be used safely in high-risk environments.
– Support for multiple signal transmission
The presence of 20 contact pins allows the transmission of multiple signal or power paths simultaneously, which reduces the need for several separate connections and increases system integrity.
Why should we purchase the MR-20L socket from 24CNC?
Now that you are familiar with the features and applications of the HONDA MR-20L 20-pin female socket, you may be wondering where I can get this product that is both reliable, reasonably priced, and delivered to me as quickly as possible.
24CNC store, as one of the most specialized electronic and industrial parts suppliers in Iran, offers this socket with a guarantee of originality and original quality. Some of the benefits of purchasing from 24CNC include:
- Providing original products from reputable brands such as HONDA, FANUC, SIEMENS, MITSUBISHI, and …
- Expert advice before purchasing to accurately select the required product
- Fast and reliable shipping nationwide
- Affordable price considering the quality and authenticity of the product
- Technical support after purchase
Experience a safe, accurate, and professional purchase with 24CNC!
If you are also looking for an original and durable 20-pin female socket that is both technically reliable and economically affordable, we recommend the MR-20L model from Honda.
To place an order, simply log in to the 24CNC website or contact our experts to receive the desired product in the shortest possible time.
