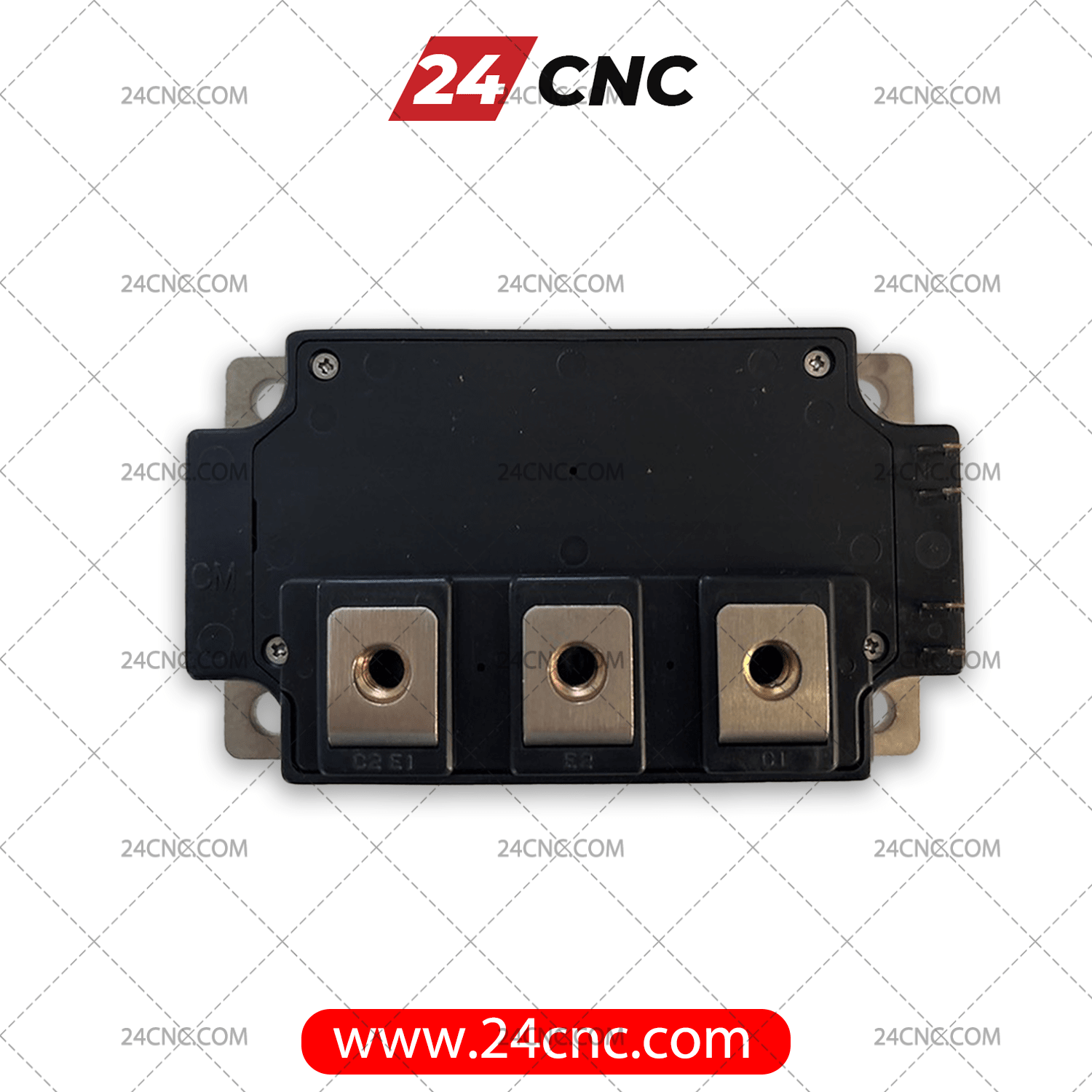

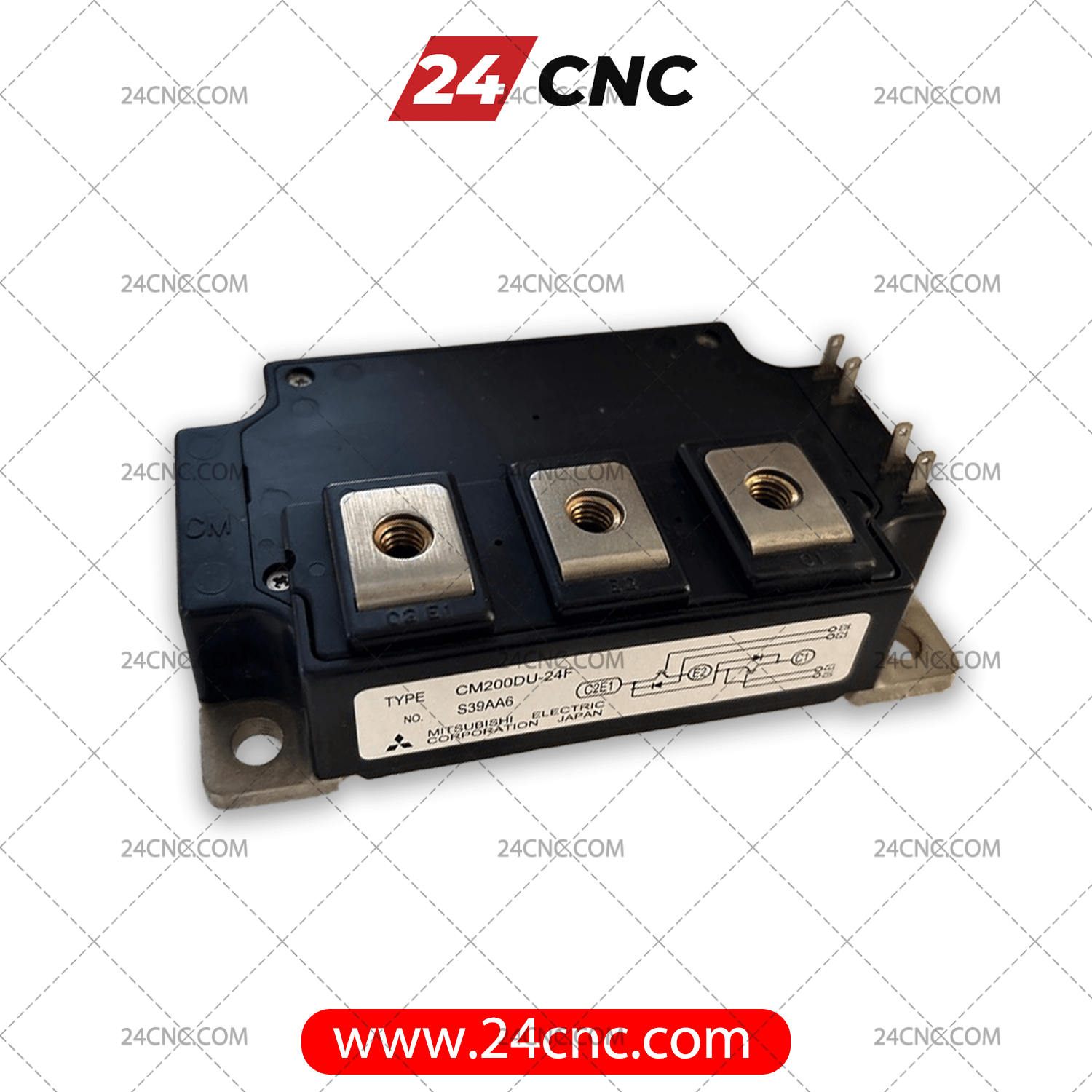

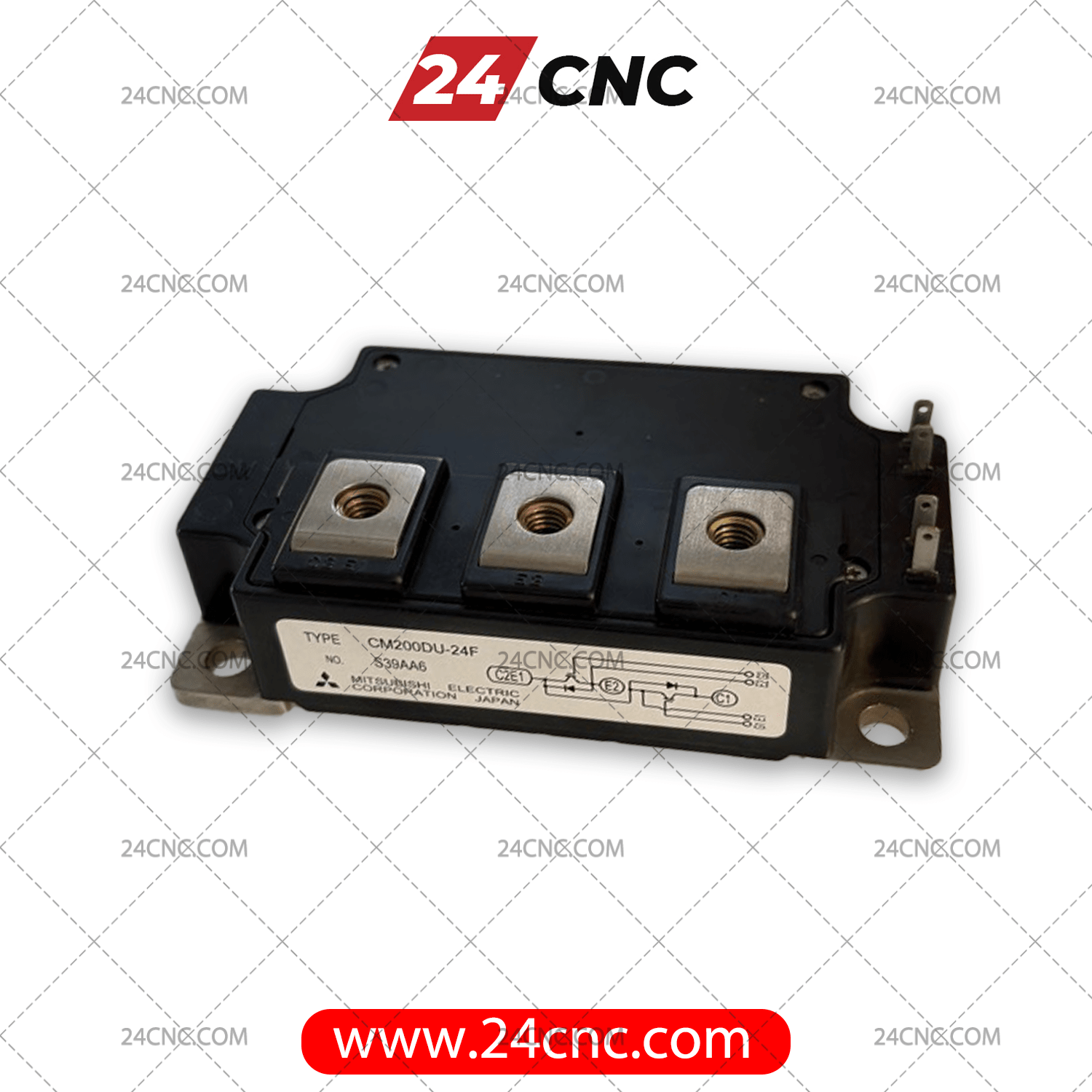

CM200DU-24F MITSUBISHI IGBT Module

Specifications:

• Product: IGBT Module
• Brand: MITSUBISHI
• Model: CM200DU-24F
• Collector-Emitter Voltage: 1200 V
• Continuous Collector Current (at 25 degrees): 200 A
• Maximum Power Dissipation (at 25 degrees): 890 W
• Collector-Emitter Saturation Voltage (Typical): 1.8 V
• Operating Temperature Range: -40 to +150 °C
• Isolation Voltage: 2500 Vrms

Description of the Mitsubishi module

The Mitsubishi CM200DU-24F module is a dual and isolated IGBT designed for high-power switching applications such as general inverters and servo controls.

Design feature

1. Structure: Two IGBT transistors in one package (Half-Bridge configuration)
2. Technology: Using Trench Gate technology to reduce switching losses
3. Internal diode: Equipped with internal ultra-fast diodes (Free-Wheel Diode) to protect against reverse currents
4. Installation: With isolated base for direct and easy connection to the heatsink

Applications

This module is mainly used in the following devices:

1. Motor speed control inverters (AC Drive)
2. Uninterruptible power supplies (UPS)
3. Industrial welding machines
4. Servo controllers (Servo Controls)
