Specifications:

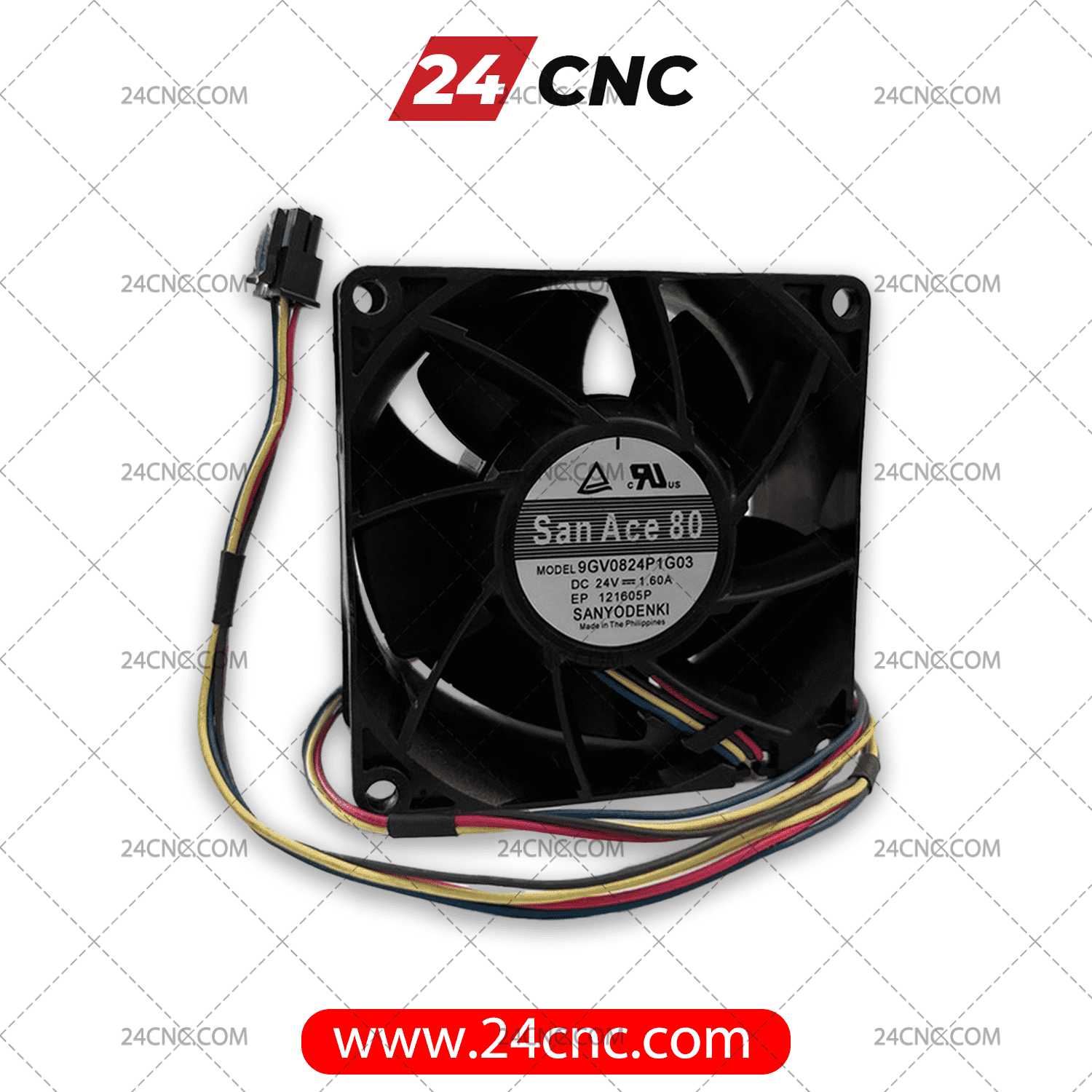

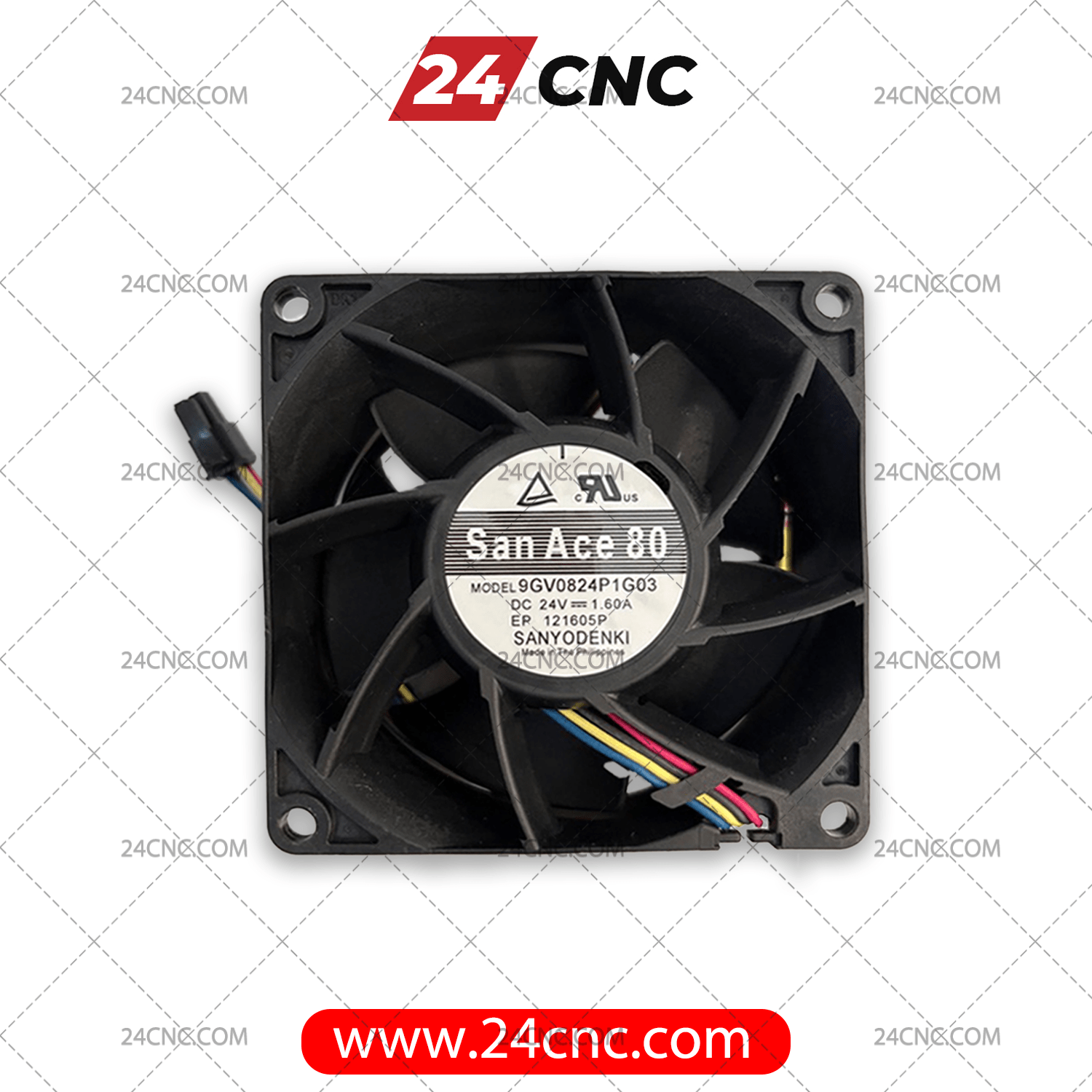

- Product: Cooling Fan
- Brand: SANYO DENKI
- Model: 9GV0824P1G03
- Operating voltage: 24 V
- Current: 1.60 A
- Dimensions: 80 × 80 × 38 mm
- Power consumption: 38.4 W
- Rotation speed (RPM): about 10,200 rpm
- Maximum air flow: ≈ 3.9 m³/min (≈ 138 CFM)
- Maximum static pressure: 490 Pa (1.97 inH₂O)
- Noise level: about 65 dB(A)
- Bearing type: Ball Bearing
- Speed control: with PWM
- Speed sensor: Pulse / Tachometer
- Body and blade material: plastic
- Operating temperature: from -20 to +70 degrees Celsius
Description of SanAce80 Cooling Fan
SANYO DENKI model 9GV0824P1G03 fan is a powerful and industrial DC axial fan designed for cooling equipment with high thermal load. With very high air flow, strong static pressure and PWM control capability, this fan is an ideal choice for use in CNC machines, electrical panels and sensitive industrial systems.
The 4-wire design with speed control signal (PWM) and speed feedback output (Tachometer) allows precise control of fan performance under different working conditions.
