Specifications:
- Product: Encoder cable
- Brand: SIEMENS
- Model: 6FX3002-2CT12-1BA0
- Length: 10 meters
- Outer diameter: 7.2 mm
- Series: MOTION-CONNECT 300
- Connector type: With M23 cylindrical connector (motor side) and drive socket
- Strand structure: 3 pairs of 0.2 mm² + 2 pairs of 0.25 mm²
- Operating temperature range: -25 to +80 degrees Celsius
- Protection degree: IP65 (if connectors are fully connected)
Description of Siemens Encoder Cable

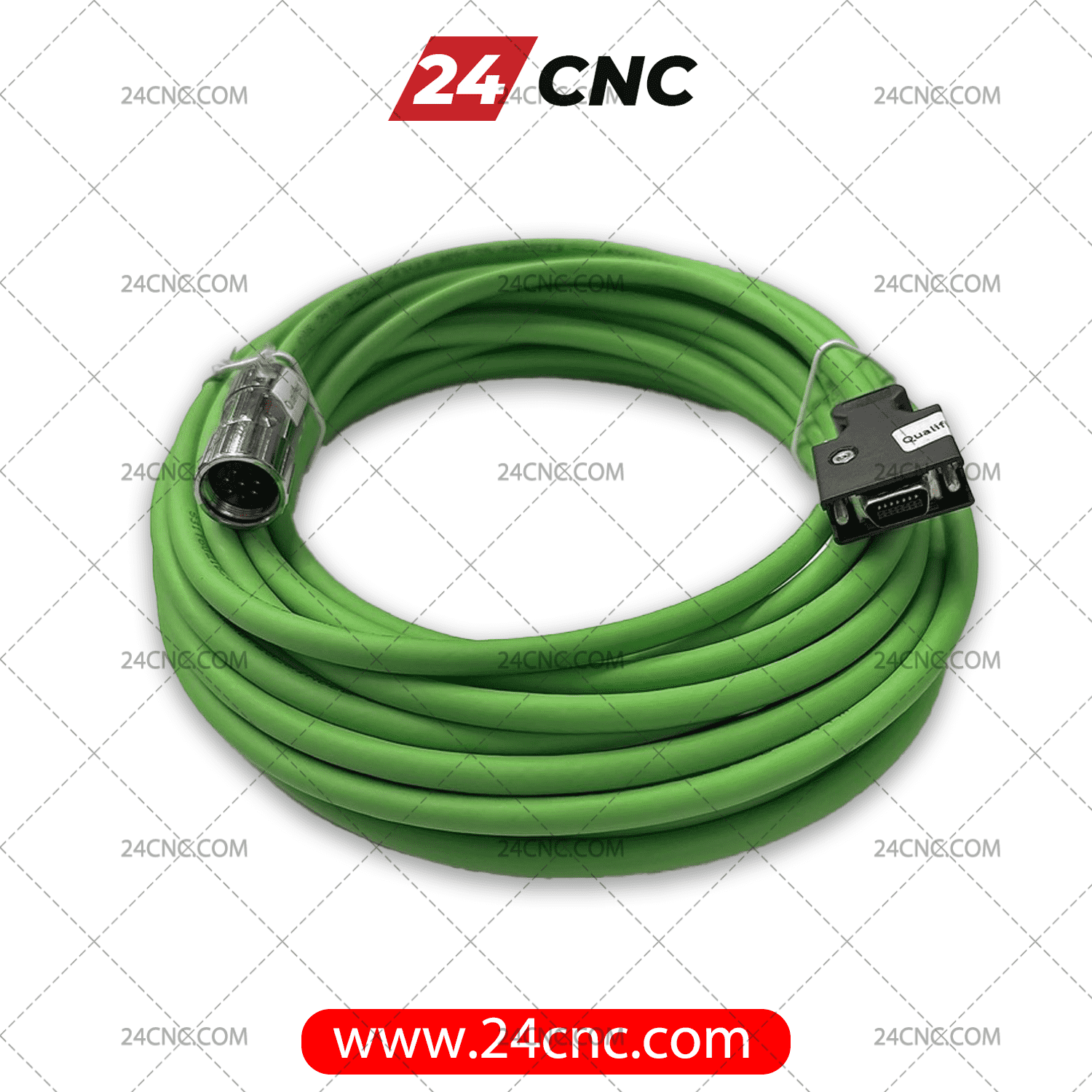

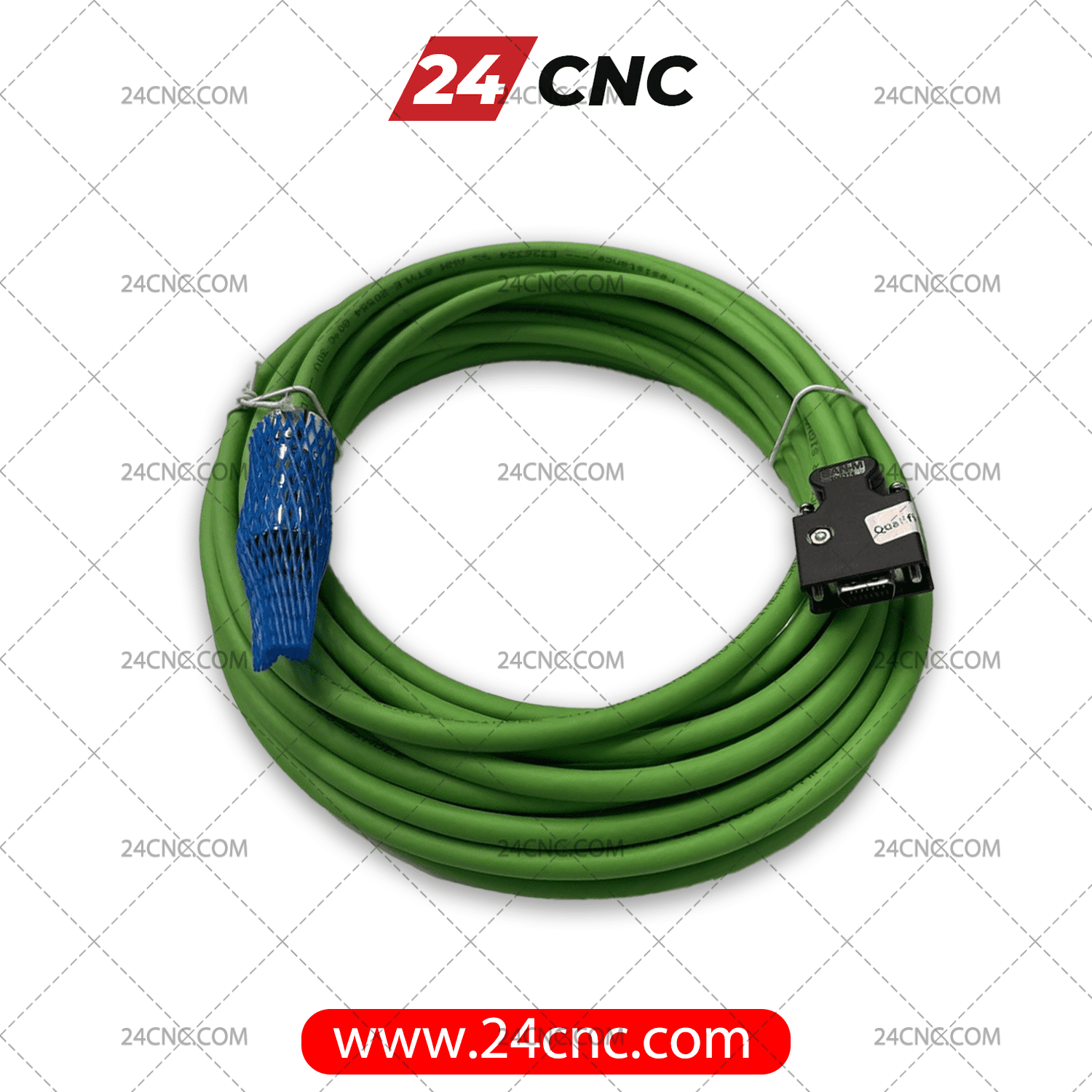

The Siemens 6FX3002-2CT12-1BA0 cable is a prefabricated signal cable from the MOTION-CONNECT 300 series, designed for connecting incremental encoders in SINAMICS V90 servo drive systems and 1FL6 motors.
Mechanical specifications
Minimum bending radius:
- In fixed installation: 6 times the cable diameter
- In mobile installation: 155 mm
- Number of bending cycles: Up to 1,000,000 times (suitable for semi-mobile industrial environments)
- Maximum tensile stress: 50 N/mm2 (fixed) and 20 N/mm2 (mobile)
Standards
- Approvals: RoHS, cURus
- Safety standards: EN60811-2-1 and EN60332-1-1 to 1-3 (flame resistance)
Due to its 10-meter length and high build quality, this cable is used for applications where the distance between the motor and the drive is large and where there is a need for high signal transmission accuracy in industrial environments.
