Specifications:
- Product: Connector
- Model: 4S-20
- Type: Female, straight
- Pins: 4

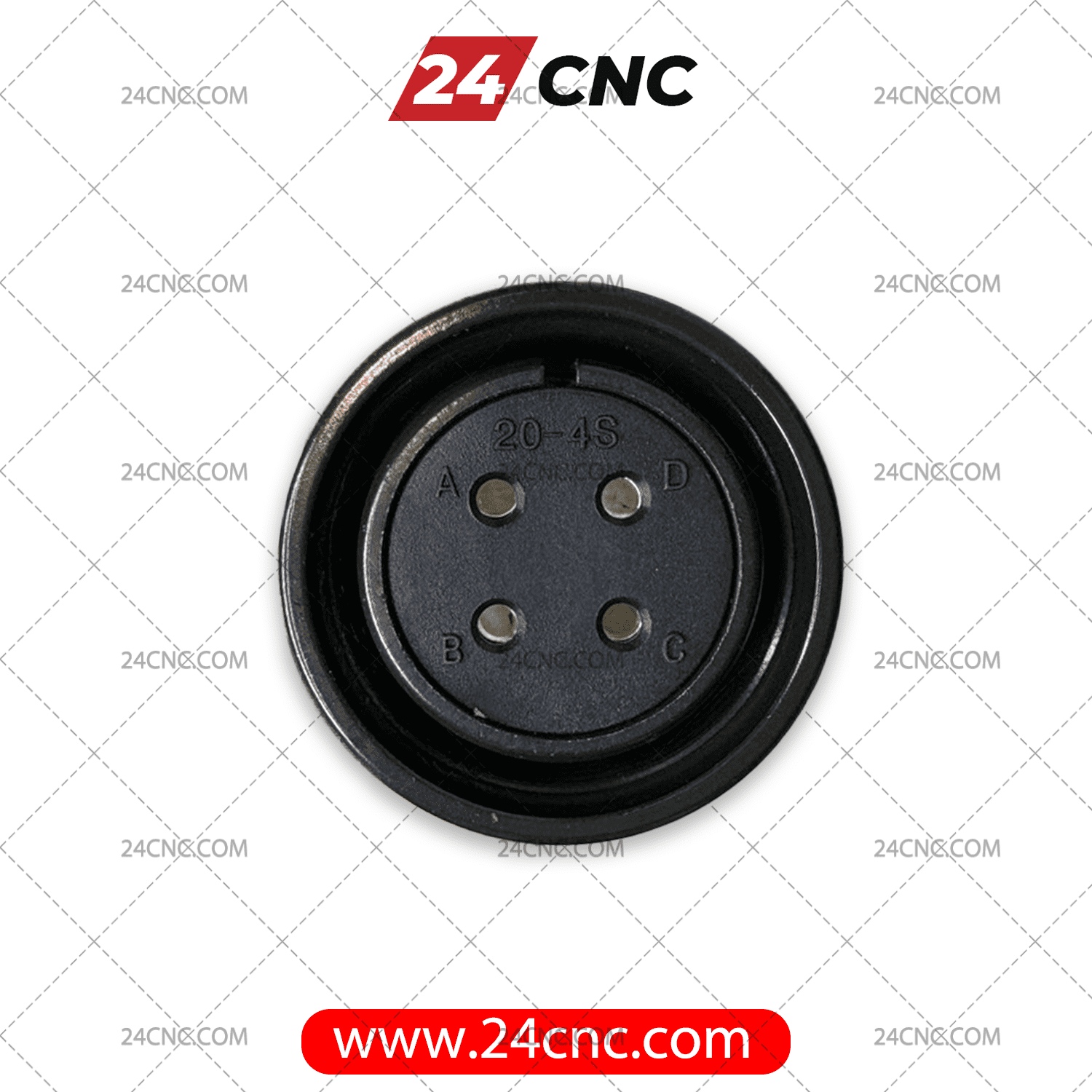

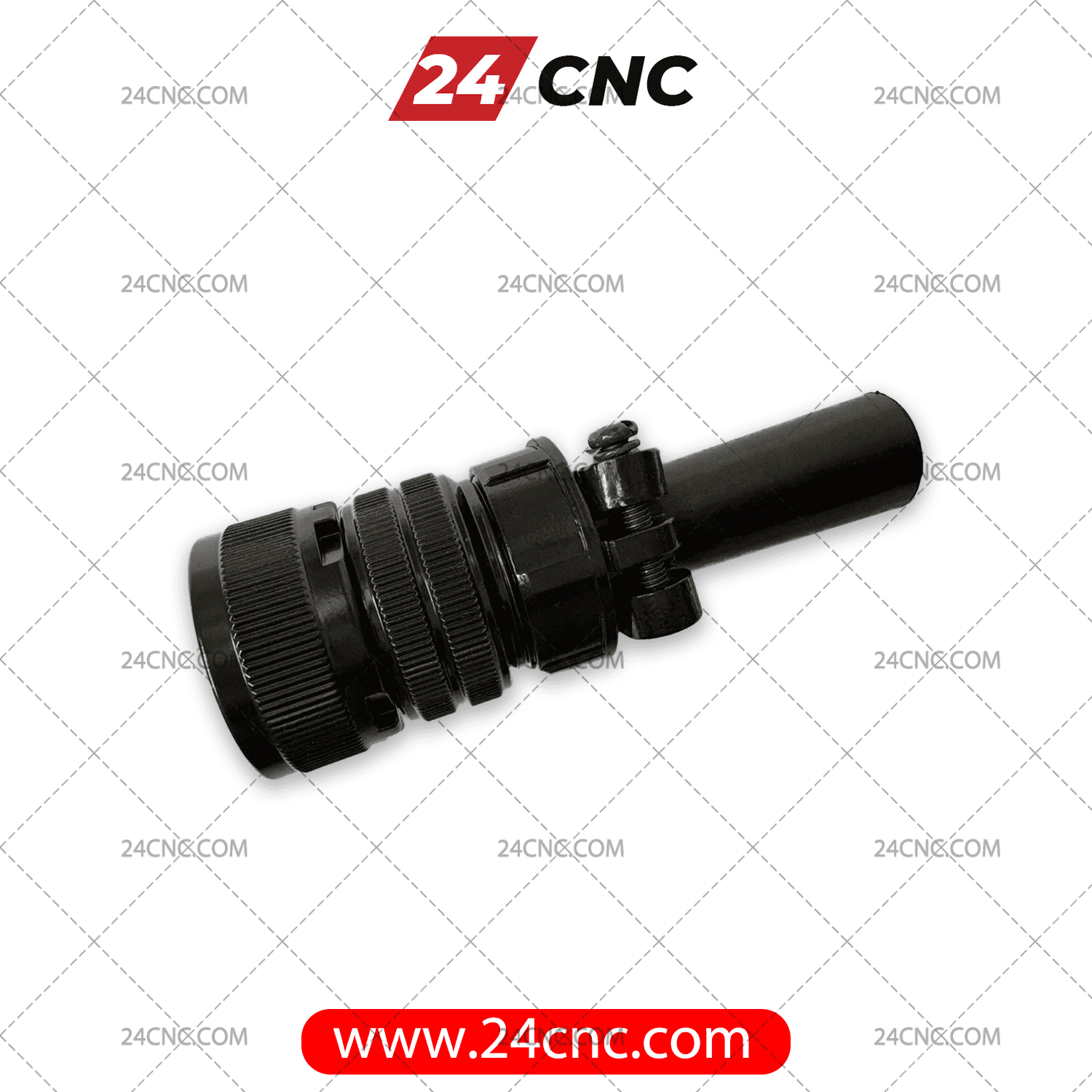

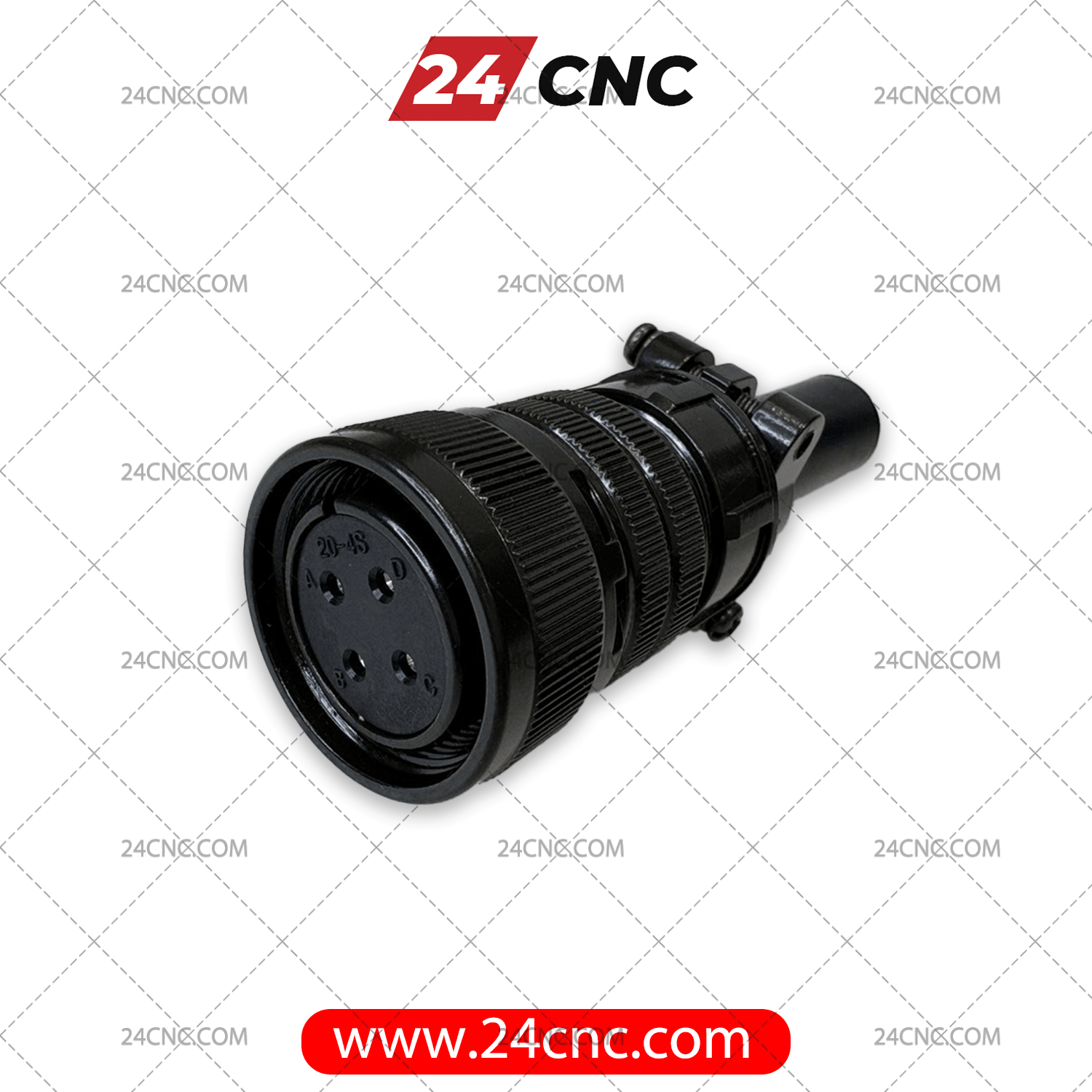

Introducing the 4-pin connector model 4S-20 (straight)
In industrial and electronic equipment, choosing the right connector is of great importance; because the slightest disruption in the connection can affect the performance of the entire system. Connectors, as interfaces between cables and devices, must have precise dimensions, high manufacturing quality and sufficient resistance, while ensuring safe and stable signal transmission. In the meantime, the 4-pin connector model 4S-20 (straight) is one of the most widely used options for various industries due to its standard design, long durability and high reliability.
This connector is a straight female type and is designed with four pins to establish a reliable and noise-free connection in sensitive systems. Its use is common in the CNC, robotics, precision instruments and telecommunications equipment industries, which has made it a special place among engineers and industry activists.
Technical specifications of the 4-pin connector model 4S-20 (straight)
The technical specifications of this product clearly demonstrate the high precision in its design and manufacturing quality. The main features are:
- Product type: Socket and connector
- Model: 20-4S
- Socket type: Female, straight
- Number of pins: 4 pins
- Inner diameter: 26.5 mm
- Outer diameter: 36.8 mm
- Socket length (including cable): 105 mm
These precise dimensions show that the 4-pin connector model 4S-20 is designed in a way that is fully consistent with global standards. Its 105 mm length, including the cable, simplifies installation conditions and helps to ensure the stability of the connection.
Review of the design and dimensions of the 4-pin connector model 4S-20
The dimensions of this product are fully engineered and practical. The inner diameter of 26.5 mm and the outer diameter of 36.8 mm make this connector highly compatible with industrial cables. The length of 105 mm also allows for easy use in electrical panels and complex systems.
The straight design of the connector makes it ideal for applications that require cabling without angles. This feature makes the installation and commissioning of the system simpler and faster.
Applications of the 4-pin connector model 4S-20 (straight)
Due to its standard design and high quality, this product is widely used in various industries. Some of the most important uses are:
- CNC machines: Accurate signal transmission between the encoder and the controller.
- Robotic systems: Creating a stable connection between the moving and control parts.
- Automated production lines: Ensure uninterrupted signal transmission in high-vibration environments.
- Precision instrumentation and measuring equipment: Noise-free transmission of sensitive data.
- Telecommunications and electronics industries: Secure communication in sensitive systems.
This wide range of applications demonstrates the high reliability of the 4-pin 4S-20 connector.
Advantages of the 4-pin connector model 4S-20 (straight)
In addition to its precise technical specifications, this connector has many advantages that make it a reliable option for various industries:
- High build quality: Made of materials resistant to wear, pressure and moisture.
- Stable connection: Prevents sudden signal disconnection and connection in harsh working conditions.
- Easy installation: Standard design for quick and hassle-free installation.
- High compatibility: Can be used with various standard cables and devices.
- Long-term durability: High resistance to harsh environmental and industrial conditions.
Comparison of the 4-pin connector model 4S-20 straight with the elbow model
The 4S-20 series connectors are available in two straight and elbow models. The choice between these two models depends on the installation conditions and cabling route:
- The straight model (4S-20 straight) is the best option when cabling is done without an angle and there is enough space.
- The elbow model (4S-20 elbow) is used when installation space is limited or there is a need to change the direction of the cable.
In this way, engineers can choose the appropriate model based on project conditions. In many cases, a combination of both models is used in a project to provide greater flexibility in design.
Important points in selecting and purchasing the 4-pin connector model 4S-20 (straight)
- To purchase this product safely, several points should be noted:
- Ensure that the number of pins matches the desired device.
- Check the internal and external dimensions for compatibility with cables.
- Choose an original and high-quality product to extend the life of the equipment.
Buy from reputable stores that provide support services and guarantee the authenticity of the product.
Summary and purchase from 24CNC
Due to its precise technical features, standard design and wide applications, the 4-pin connector model 4S-20 (straight) is considered one of the best choices for various industries. In addition to high quality and long durability, this product also ensures easy installation and stable signal transmission.
If you are looking for reliable purchase and access to original and standard products, we recommend purchasing this product from 24CNC specialized store. This store provides you with an easy and reliable online shopping experience by offering a complete range of industrial and electronic equipment.
