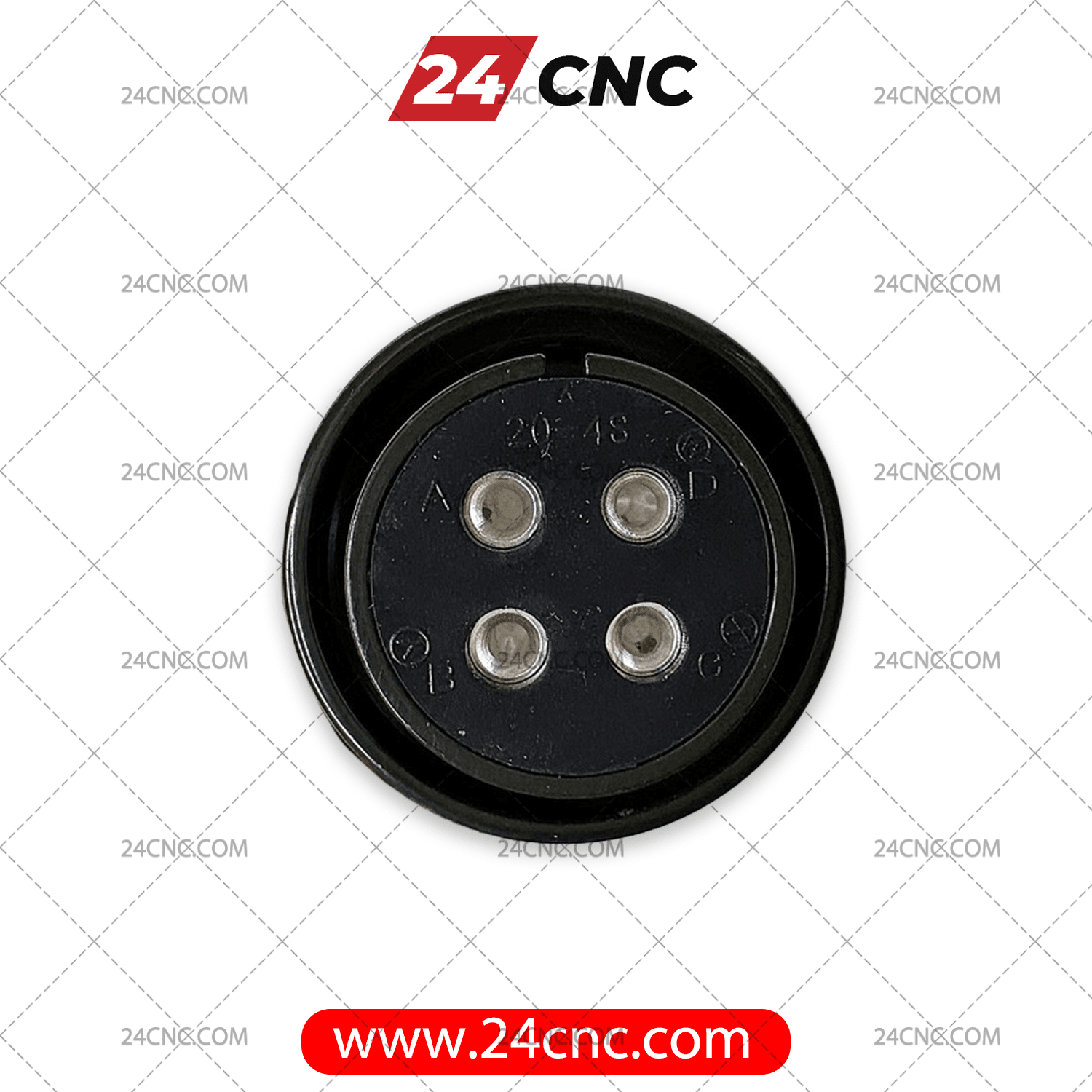

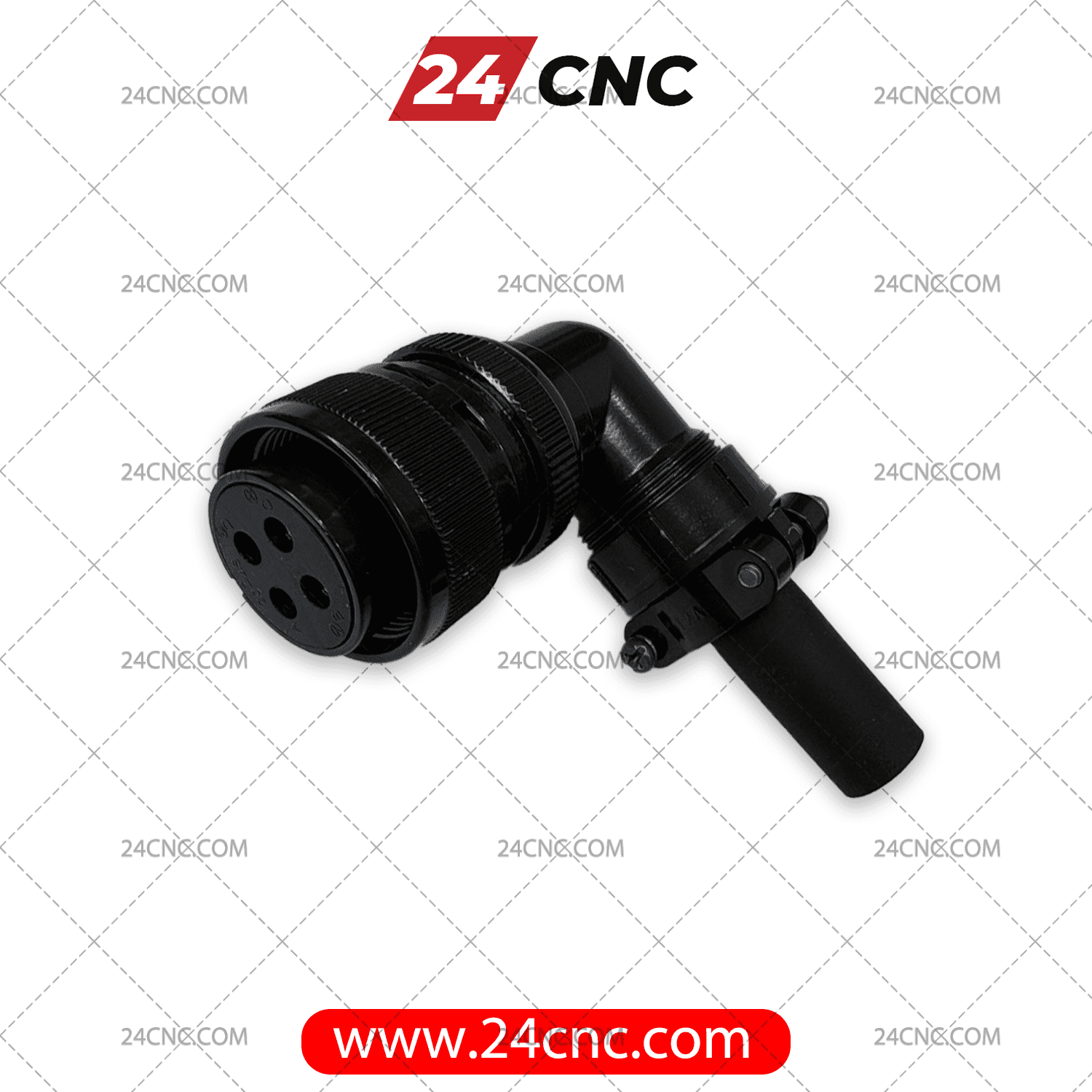

4S-20 4-pin Connector (Elbow)

Specifications:

Product: Connector
Model: 4S-20
Type: Female, Elbow
Pins: 4

Introducing the 4-pin connector model 4S-20 (Elbow)

In industrial and electronic systems, the quality and accuracy of connections play a vital role in the performance of the entire system. Connectors, as one of the main components of this connection, are responsible for transmitting signals and currents safely and without errors. Among them, the 4-pin connector model 4S-20 (Elbow) is one of the most widely used products, which is considered a reliable choice for various industries due to its special knee design, standard dimensions and high resistance.

This connector is a female knee type and is designed with four standard pins to provide fast, stable and noise-free connection. Its robust structure and precise design have made it used in many CNC systems, robotics, precision instrument equipment and even telecommunications industries.

Technical specifications of the 4-pin connector model 4S-20 (elbow)

The technical specifications of this product indicate high precision in its design and quality of manufacture. The main features are:

Product type: Socket and connector
Model: 20-4S
Socket type: Female, elbow
Number of pins: 4 pins
Inner diameter: 26.65 mm
Outer diameter: 36.6 mm

These precise dimensions make the 4-pin connector model 4S-20 (elbow) capable of being used with a variety of industrial cables. The four-pin design ensures stable signal and current transmission in sensitive applications.

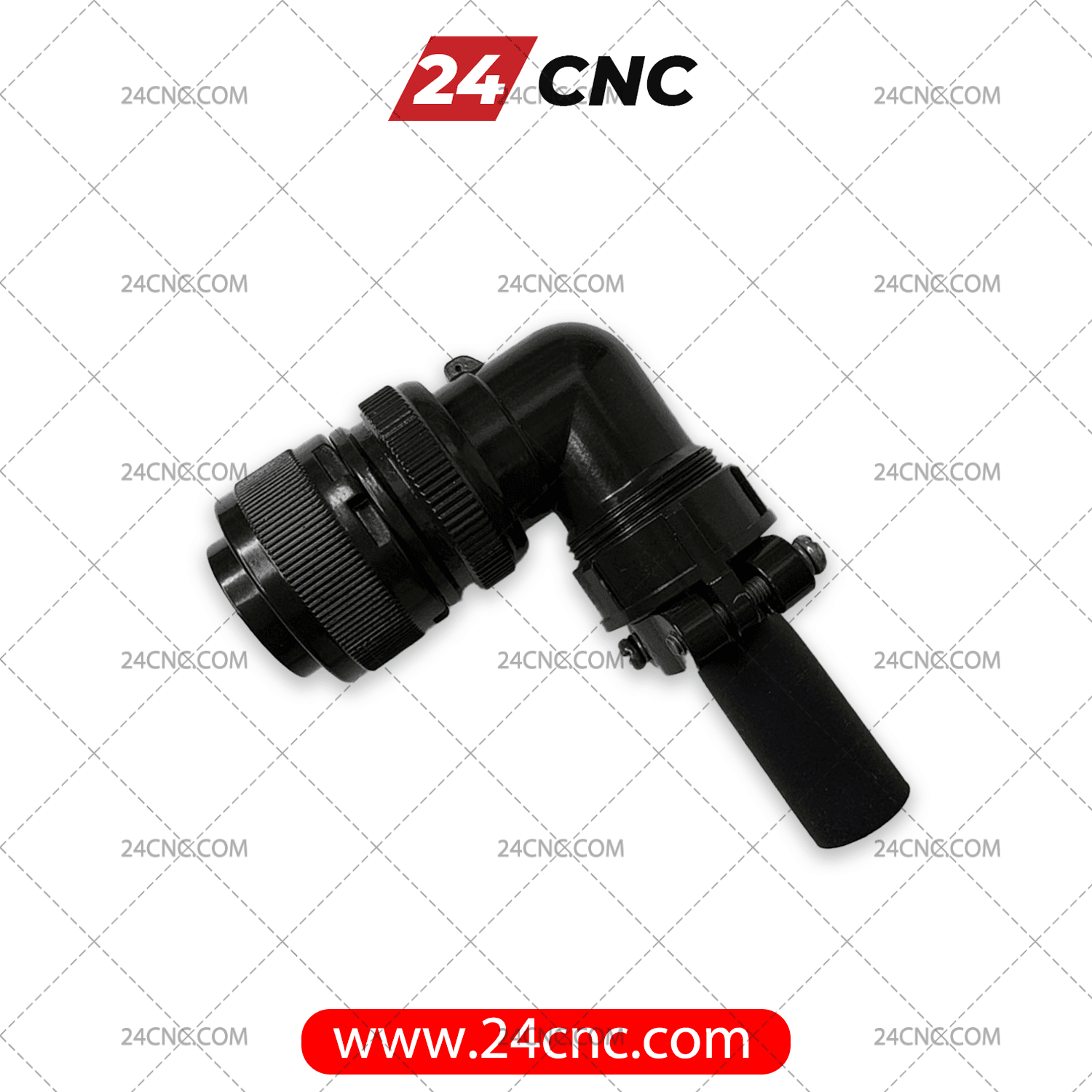

Elbow design and its advantages

One of the most important features of this product is its elbow design. Unlike straight models, the elbow connector is very efficient in limited spaces and situations where better cable management is required. This design provides the following advantages:

Reducing the pressure on the cable at the connection point.
Possibility of use in narrow and limited spaces.
Easier management of the cabling route in industrial panels.
Increasing the life of cables and reducing the probability of failure.

For this reason, many engineers prefer to use elbow connectors such as the 4S-20 model when designing and installing industrial equipment.

Applications of the 4-pin connector model 4S-20 (elbow)

This product is widely used in various industries due to its standard design and high resistance. Some of the most important uses are:

CNC machines: For transmitting control signals between the encoder and the controller.
Robotics: Establishing a safe connection between various components of robotic systems.
Automated production lines: Ensuring uninterrupted signal transmission in high-vibration environments.
Precision instrumentation: Used in noise-sensitive devices for precise signal transmission.
Telecommunications industries: Used in systems that require stable and reliable connections.

This variety of applications demonstrates the high reliability of the 4-pin 4S-20 connector.

Advantages of the 4-pin 4S-20 connector (elbow)

In addition to precise technical features, this product has several advantages that make it a reliable choice for various industries:

High build quality: Made of pressure, moisture and abrasion resistant materials.
Connection stability: Prevents sudden signal interruption in harsh working conditions.
Ease of installation: Standard elbow design for quick and easy installation.
Wide compatibility: Can be used with a variety of standard cables and devices.
Long-term durability: High resistance to harsh environmental and industrial conditions.

Important points in choosing and purchasing a 4-pin connector model 4S-20 (Elbow)

To purchase this product safely, it is essential to pay attention to a few key points:

Check the number of pins and its compatibility with the desired device.
Pay attention to the internal and external dimensions of the connector to coordinate with the cables.
Choose an original and standard product to prevent premature failure.
Buy from reputable stores that provide a guarantee of product authenticity and technical support.

Comparison of 4-pin elbow connector with straight connectors

In many applications, the choice between elbow and straight connectors is raised. Straight connectors are suitable for open spaces and conditions where there are no restrictions on cabling. However, elbow connectors such as the 4S-20 model are the best choice for limited spaces and routes that require changing angles. This comparison helps buyers choose the right option according to the installation conditions.

Summary and purchase from 24CNC

Given its precise technical features, elbow design, and wide applications, it can be said that the 4-pin connector model 4S-20 (elbow) is one of the best options for use in various industries. In addition to its high quality and long durability, this product also allows for easy installation and stable signal transmission.

If you are looking for a reliable purchase and access to original and standard products, we recommend purchasing this product from the 24CNC specialized store. Offering a wide range of industrial and electronic equipment, this store provides you with an easy and secure online shopping experience.
