Specifications:
- Product: Cooling fan
- Brand: ebm-papst (Germany)
- Model: 4184NXH
- Dimensions: 119× 119× 38 mm
- Operating voltage: 24 V DC
- Power consumption: 11 W
- Air flow (flow rate): 237 cubic meters per hour (139.5 CFM)
- Rotation speed: 4400 revolutions per minute (RPM)
- Noise level: 57 decibels (dBA)
- Bearing type: Ball Bearing
- Body material: Die-cast aluminum
- Impeller material: Fiberglass reinforced plastic (PA)
- Protection level: IP20
- Connection type: Flat plugs 2.8 x 0.5 mm
Description of the axial fan

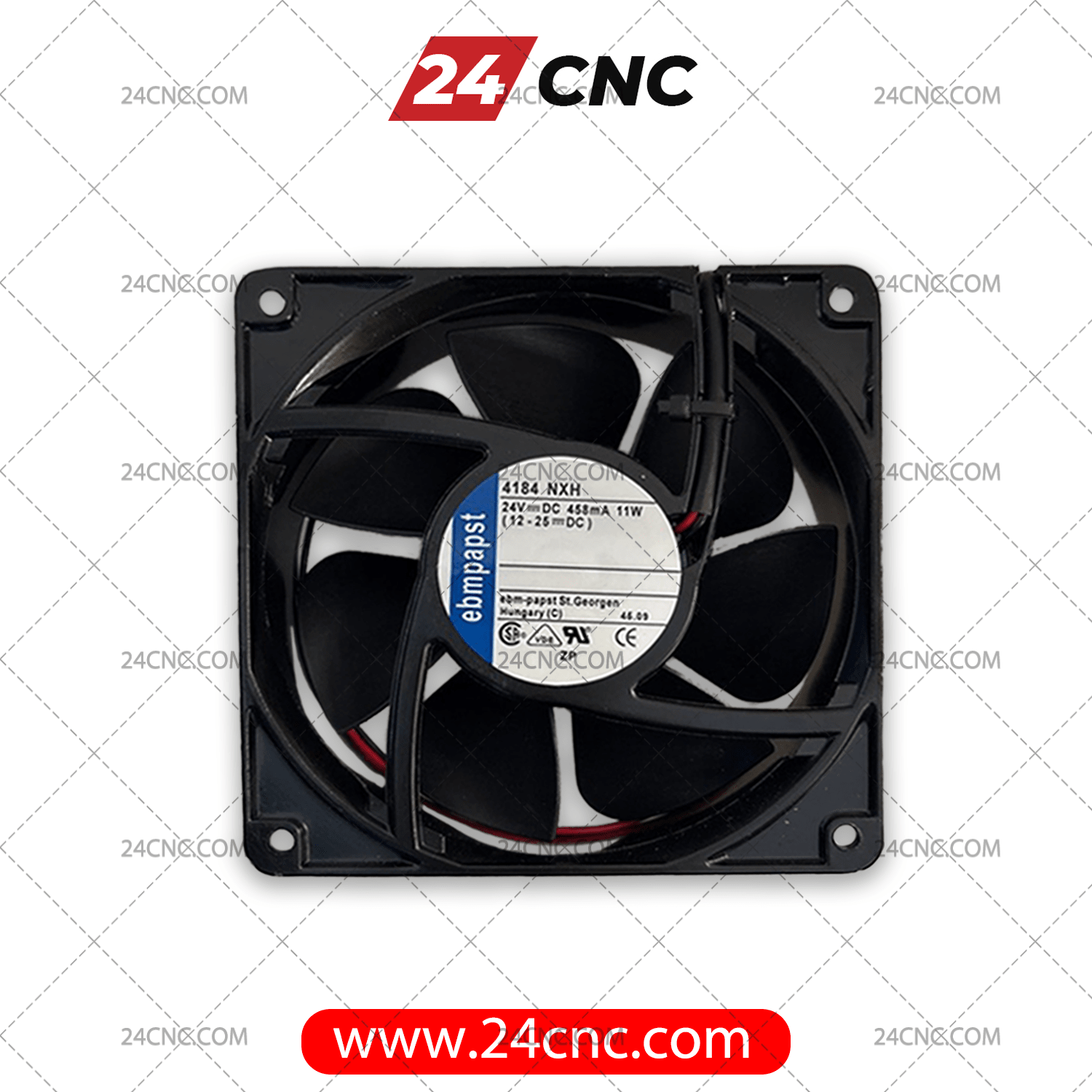

The ebm-papst 4184NXH fan is an axial fan with a voltage of 24 V DC and dimensions of 119 x 119 x 38 mm. This fan is designed to move high air volumes (237 cubic meters per hour) and has a durable metal body.
This fan is ideal for applications that require high static pressure and high air flow. Its electronic commutation system is completely internal and the fan is protected against reverse polarity (wrong connection of positive and negative) and rotor locking. The direction of rotation of the impeller is clockwise when looking at the rotor and the wind direction is outward from the support columns. This product has internationally recognized safety standards such as VDE, CSA and UL.
