Specifications:
- Product: TFT LCD Display Screen
- Brand: Sharp
- Model: LQ084V1DG21
- Back Ligh Type: CCFL (Cold Cathode Fluorescent Lamp)
- Size: 8.4 inches
- Resolution: 640×480(VGA)
- Power Rails: 3.3V
- Condition: New

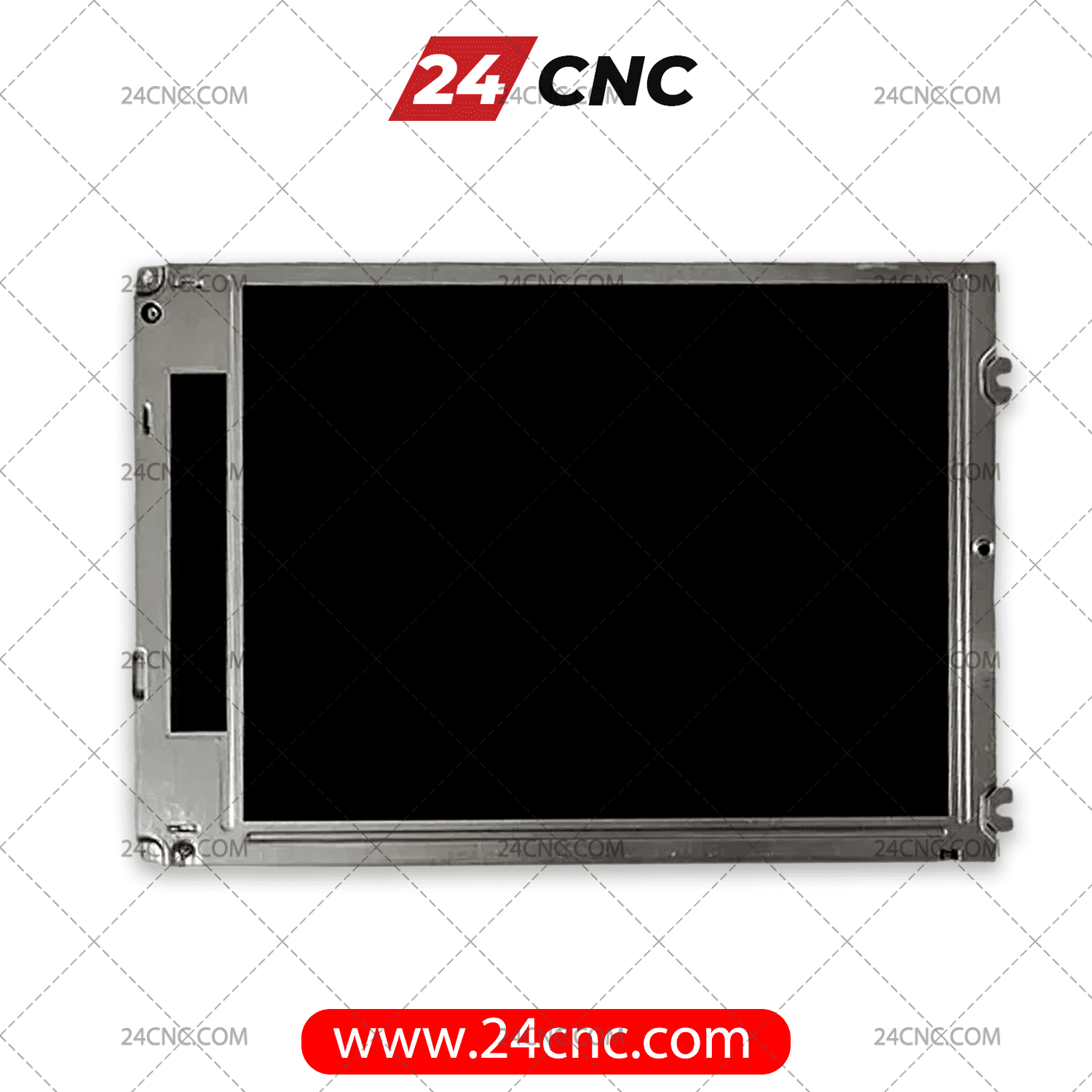

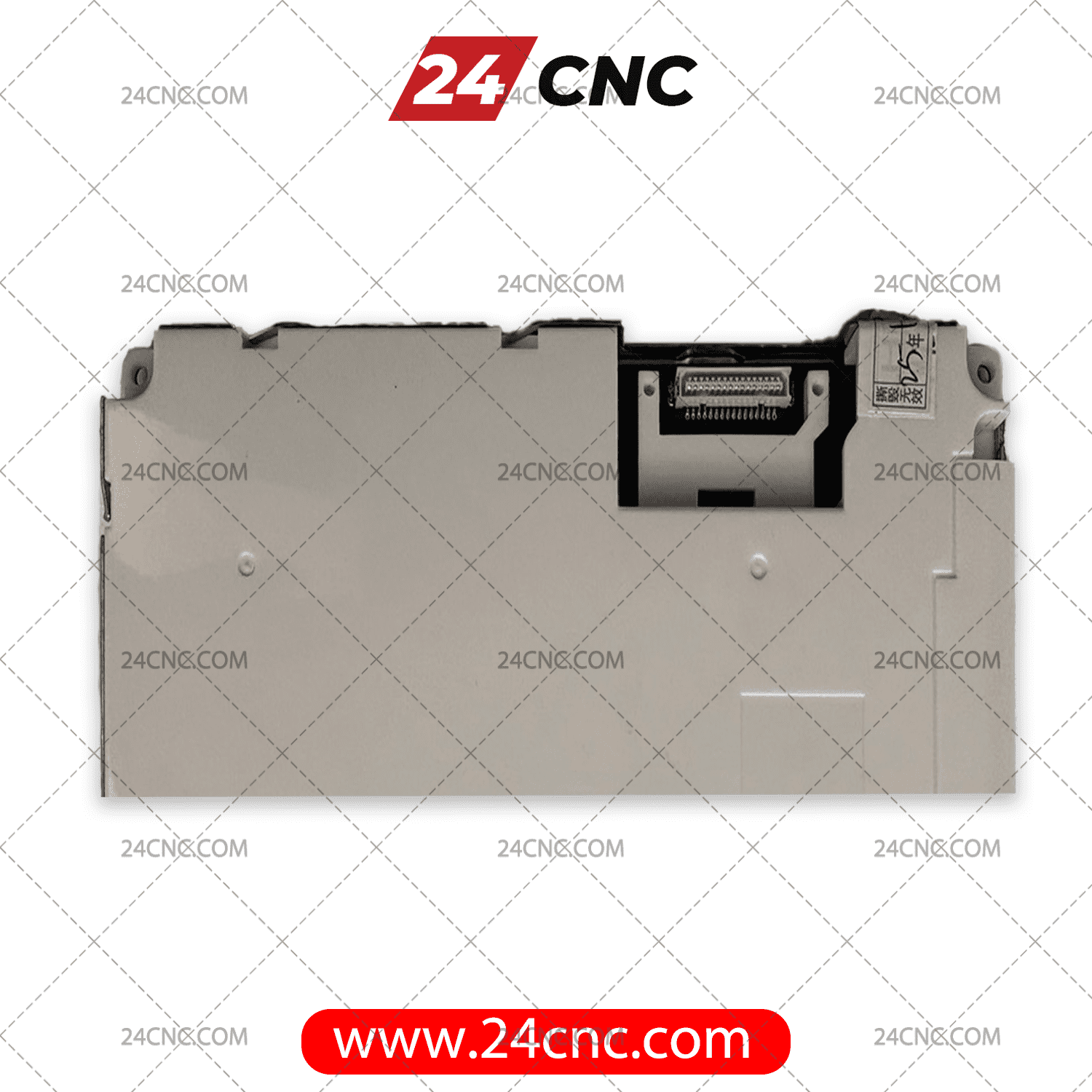

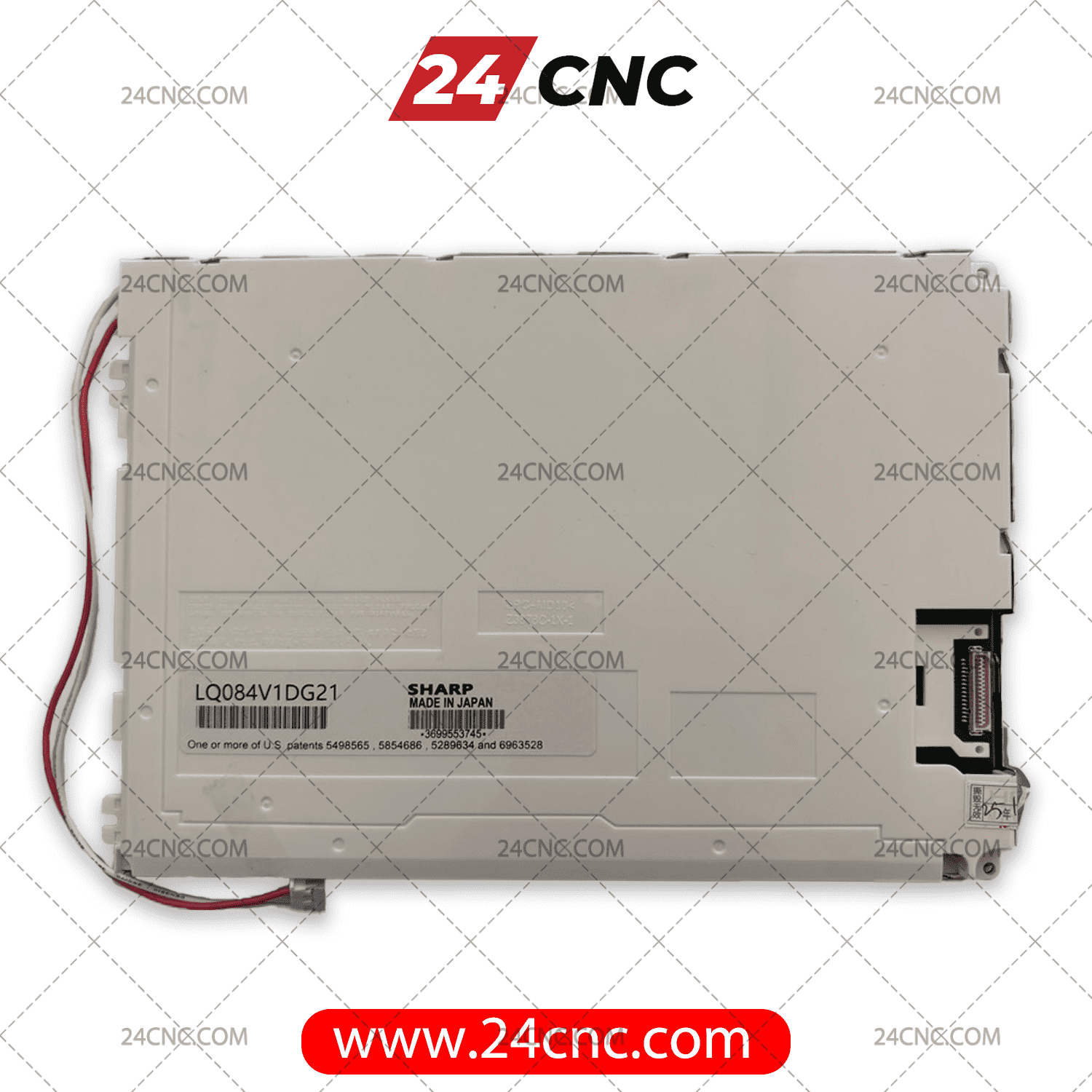

SHARP LCD Display Model LQ084V1DG21; A Smart Choice for Industrial and CNC Systems
In advanced industries and numerical control (CNC) systems, display quality and accuracy are key factors in productivity and efficiency. SHARP LCD Display Model LQ084V1DG21 from the reputable brand SHARP, utilizing modern technologies in the field of image panels, is known as one of the top options among industrial displays. This product, with dimensions of 8.4 inches and a resolution of 640 x 480 pixels (VGA), will meet the diverse needs in various industrial fields.
High image quality with TFT technology
The LQ084V1DG21 display model is a TFT-LCD type and uses an a-Si panel. TFT or thin film transistor technology allows for accurate display of colors and images with optimal brightness and high contrast. This feature ensures that images are displayed with sufficient clarity even in adverse lighting conditions in industrial environments. The VGA resolution in the 8.4-inch size provides an optimal balance between image size and display accuracy, presenting information clearly and comprehensibly.
Standard Dimensions and Industrial Design
Weighing approximately 330 grams, this display is a lightweight product that can be installed in limited spaces. It is designed to be compatible with standard dimensions used in CNC systems. Engineers and technicians in the industry can easily install this display in various controllers and devices without the need to make structural changes to the device body.
Low energy consumption and high efficiency
One of the notable features of this display is its low operating voltage. With a voltage of 3.3 volts, the device’s energy consumption is at a desirable level, which in addition to reducing power consumption, also reduces heat generation. This will have a direct impact on increasing the useful life of the display and other related electronic components, especially in devices that are used continuously and in long work shifts.
Full compatibility with similar models
Sometimes, users face the problem of finding the exact model of a part. Another advantage of this model is its full compatibility with the LQ084V1DG42 model. These two displays are completely similar in terms of dimensions, connectors and technical specifications and can be used interchangeably without any changes to the system structure. This feature facilitates the provision of replacement parts and accelerates the process of repairing and maintaining devices.
Widely used in various industrial fields
Although this display was developed specifically for CNC systems, its scope of use goes beyond numerical control machines. This product is also used in medical equipment, portable industrial devices, specialized imaging systems and even projectors that display information from microcontrollers. High image quality and stable performance in harsh working conditions make this display a versatile and reliable choice.
The Key Role of the Display in the Operator’s User Experience
As one of the main points of contact between the operator and the CNC machine, the display plays a very important role in the quality of the user experience. When information is displayed clearly, accurately, and without delay on the screen, the operator will be able to control the processes with greater focus, higher accuracy, and more appropriate speed. The LQ084V1DG21 model, with its special industrial design and high image resolution, works in a way that makes interaction with the system easier and more effective for the user. Also, using a display that has the ability to operate continuously and stably in industrial environments can reduce user eye fatigue and prevent errors caused by illegibility of information. Such features will not only increase the accuracy of the process execution, but also improve the overall productivity of the operator and the system.
High build quality with SHARP brand authenticity
The SHARP brand name has always been associated with innovation, precision, and quality. The LQ084V1DG21 model is no exception. This product is completely original and new to the market and does not use second-hand, repaired or refurbished parts. Choosing this display will be a smart move for those looking for high-quality electronic components with a long service life.
The Importance of the Display in CNC Machines
In CNC machines, the display acts as the main interface between the operator and the control system. Any delay, visual noise, or loss of quality in displaying information can negatively affect the accuracy of the device’s performance. The LQ084V1DG21 model plays an important role in maintaining the quality of production processes, due to its high accuracy, stable performance, and ability to display information flawlessly. The 8.4-inch size of this display is also an ideal size for controllers that have limited space for installing the display.
A safe purchase from a specialized 24CNC store
To buy the LQ084V1DG21 LCD display, it is very important to choose a reputable and specialized store. The 24CNC online store, with a strong history in the field of supplying industrial and CNC parts, offers this product with a guarantee of product authenticity, reasonable prices, and professional support services. The technical experts of this complex are ready to answer all questions from respected buyers about how to install, use, and even choose a replacement model. Respected customers from all over the country can order this product online and receive it in the shortest possible time. Pre- and after-sales support, fast shipping, and permanent inventory of parts are among the advantages of purchasing from 24CNC.
