Application of cooling fans in electrical panels and control systems
NMB-MAT brand cooling fans model 2408NL-05W-B50 are commonly used in electrical panels and control systems of CNC machines. These fans are used to cool sensitive electronic components such as drives, control boards and other electronic components used in CNC machines. With these fans, the temperature of these components is controlled and damage to the system is prevented.
Due to their proper design and effective performance, these fans are used in many industrial systems that require temperature control. For example, in CNC machines, these fans help the ventilation system of the electrical panels to maintain a constant temperature and the device can operate properly without thermal problems.

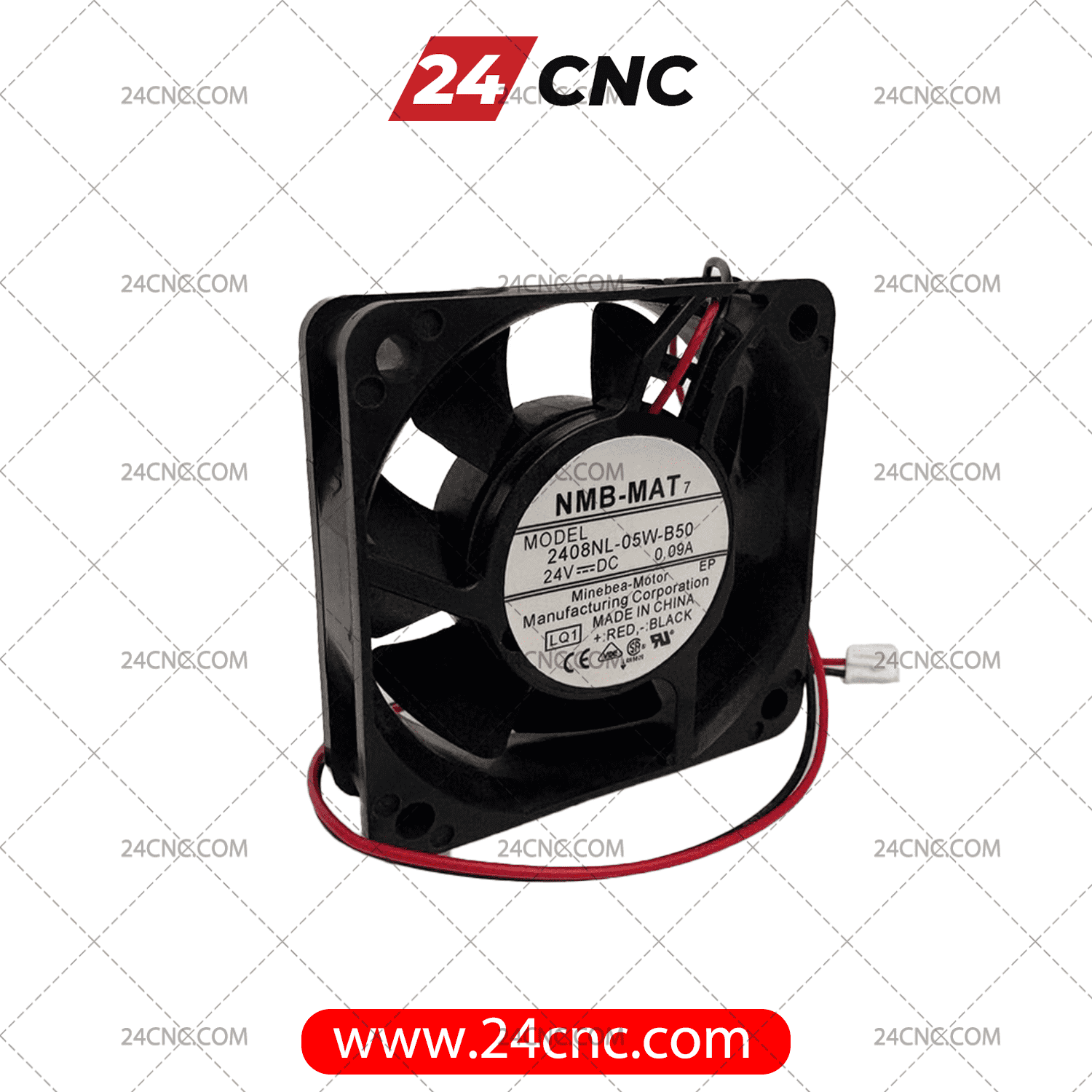

Technical specifications of the 2408NL-05W-B50 fan

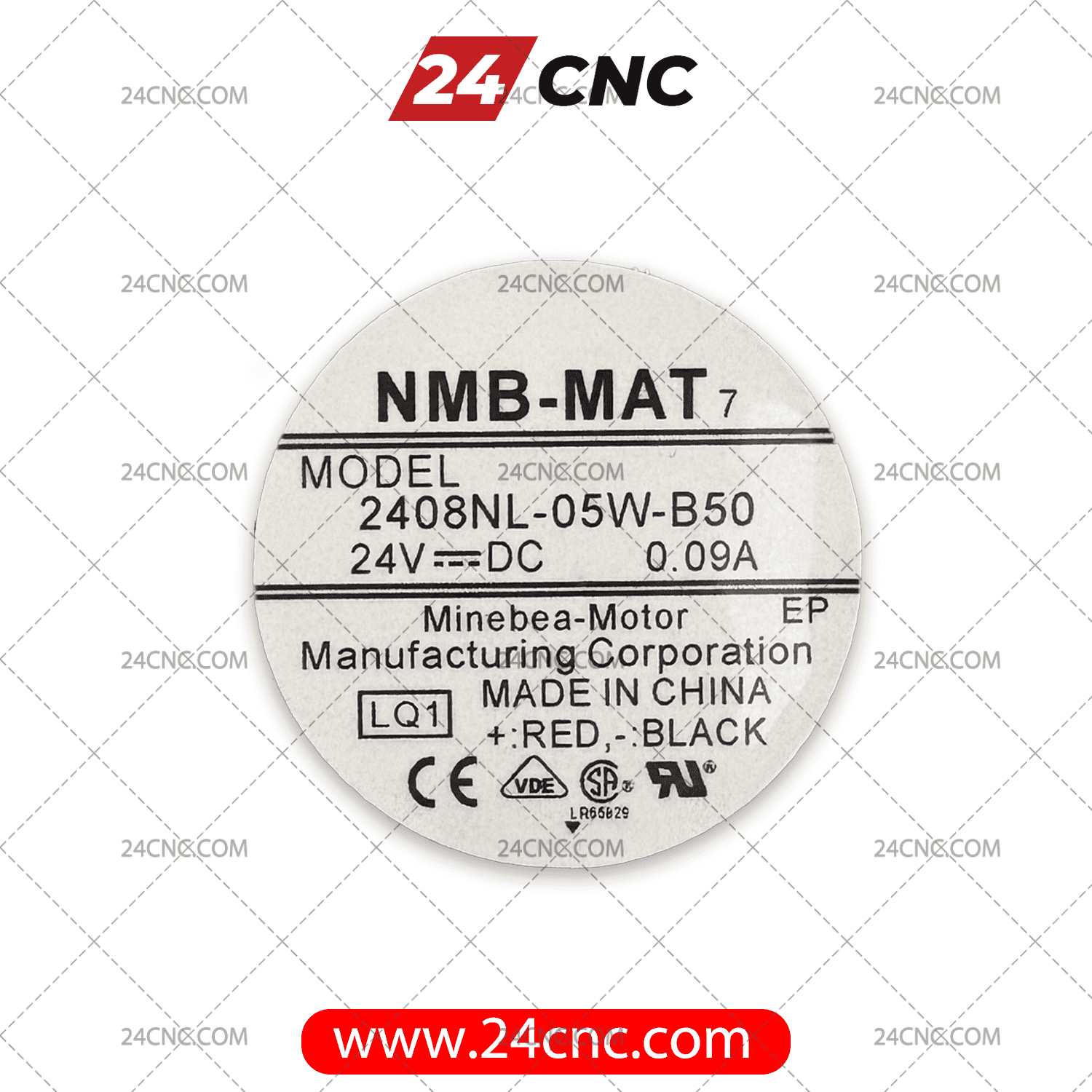

This fan is made by the reputable brand NMB-MAT; a brand that many are familiar with because it has been operating in the industry for years and is known for its high quality. The 2408NL-05W-B50 model is designed with dimensions of 60 x 60 mm and a thickness of 20 mm. The operating voltage of this fan is 24 volts DC and its current consumption is 0.09 amps. This means that with very low power consumption, we have good and reliable ventilation. The fan power is also 5 watts, which is considered very efficient in this size and category.
Compact design, suitable for limited spaces
Most electrical panels or enclosures around drives do not have much space to install a fan. This makes the size of the fan very important. With dimensions of 6 x 6 cm, this model is not so big that it causes a nuisance, nor so small that it is ineffective. It can be said that this is one of the best sizes for limited spaces in CNC control systems.
Low power consumption, reliable performance
One of the things that is always important in industrial equipment is stability along with optimal consumption. The 2408NL-05W-B50 fan has a power consumption of only 5 watts, which makes it not a big impact on the overall power consumption of the device. However, it produces good airflow and copes well with the ventilation of electrical panels and the space around sensitive boards. This combination of efficiency and low consumption is something that should always be sought.
Simple wiring for quick installation
No special training or fancy equipment is required to install the fan. This fan is two-wire, meaning it has only a positive and a negative wire that are easily connected to a 24V DC voltage. Installing it in an electrical panel or a special fan frame is very quick and easy. This simplicity allows any technician to install the fan or replace it if necessary in the shortest possible time.
High quality construction with the NMB-MAT brand
When a part is going to work for a long time, you should pay attention to its brand. NMB-MAT is one of those brands whose name alone makes you feel at ease. Years of experience, the use of high-quality raw materials and strict quality control have made its products used in various industries such as electronics, medicine and industrial automation. This fan is also one of the same high-quality series that has high durability and stable performance.
Application in electrical panels and electronic components of CNC systems
NMB-MAT cooling fan This fan is not installed directly on the CNC machine itself, but it plays a very important role in the system. In the electrical panel, around the drive, or next to the control boards, one or more fans like this are usually used to control the temperature. Especially in environments where there is no natural ventilation or the system is constantly running, having a fan like the 2408NL-05W-B50 model becomes very necessary. Because high heat can cause software errors or even burn out components.
Durable body and long life
Industrial environments are usually not clean and comfortable. Dust, high temperatures, or even sometimes slight humidity are part of the working environment. This fan, with its durable body, is built for such conditions. Although it is not waterproof, it can work well in semi-industrial and industrial environments without failing quickly. Its build quality is also such that you will not have to think about replacing it for a long time.
Easy installation on different surfaces
Whether it is in a panel, or on a metal or plastic body, this fan is easy to install. There are four holes on its body that can be secured with screws or even clamps. It also has a low weight, which makes its installation not particularly troublesome. In some projects, it is also installed with special adhesive or ready-made brackets, which all depends on the available space and the installer’s preference.
Affordable price for industrial use
A part is a consumable and may need to be replaced after a while, so its price should be reasonable. This model is one of the good options on the market economically. Not only because of the price, but also because with a single purchase, it is going to work for you for a long time, and more importantly, it allows more expensive equipment to work without problems at the right temperature.
Buy a cooling fan safely from the 24CNC
If you are looking for a safe purchase that will get you the same original product and have real support, we recommend the 24cnc. This specialized store operates in the field of supplying and selling CNC parts and has all kinds of cooling fans, drives, boards and electrical panel equipment.
The 2408NL-05W-B50 model fan is also on its product list at a reasonable price, guaranteed authenticity and fast shipping. Most importantly, if you have any questions or concerns, you can contact experts and get free technical advice.
