Specifications:
Brand: SIEMENS
Input voltage: 5VDC
Pulse: 100PPR
Up to 6 axes (X, Y, Z, 4, 5, 6)
Made in: China
About this Handwheel
Manual Pulse Generator (MPG) , brand (SIEMENS), is one of the industrial remote controllers used in various CNC machines.
Remote and portable CNC handwheels are made to have sufficient control over the position of the workpiece, precise adjustment of the position and speed of the workpiece movement to bring ease of work to CNC machine operators.
This handwheel has the ability to select up to 6 axes, which in machine tools and CNC machines allows the technician to have sufficient control over referencing, the machining process and
the movement of the workpiece based on the coordinate axis accurately up to a certain distance.

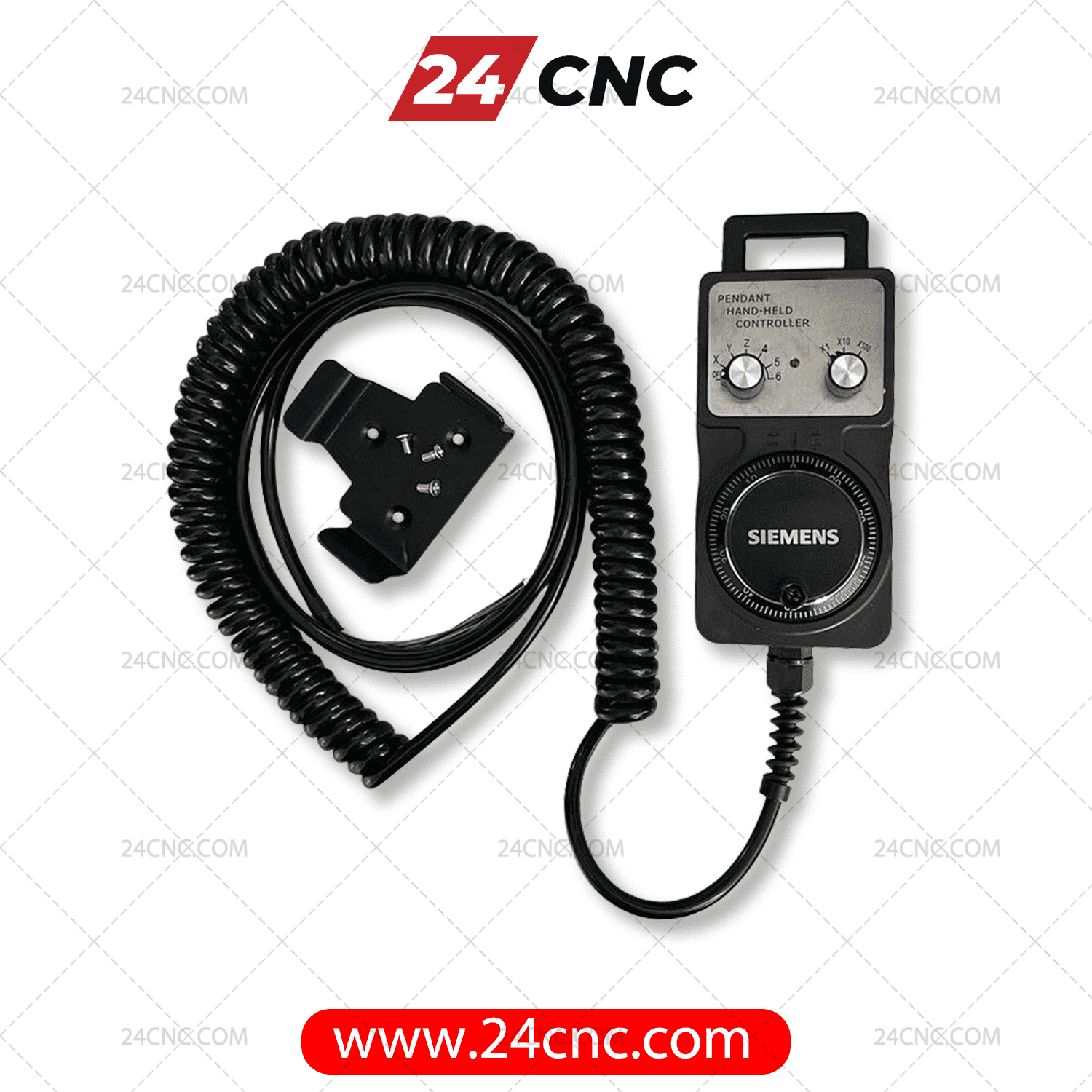

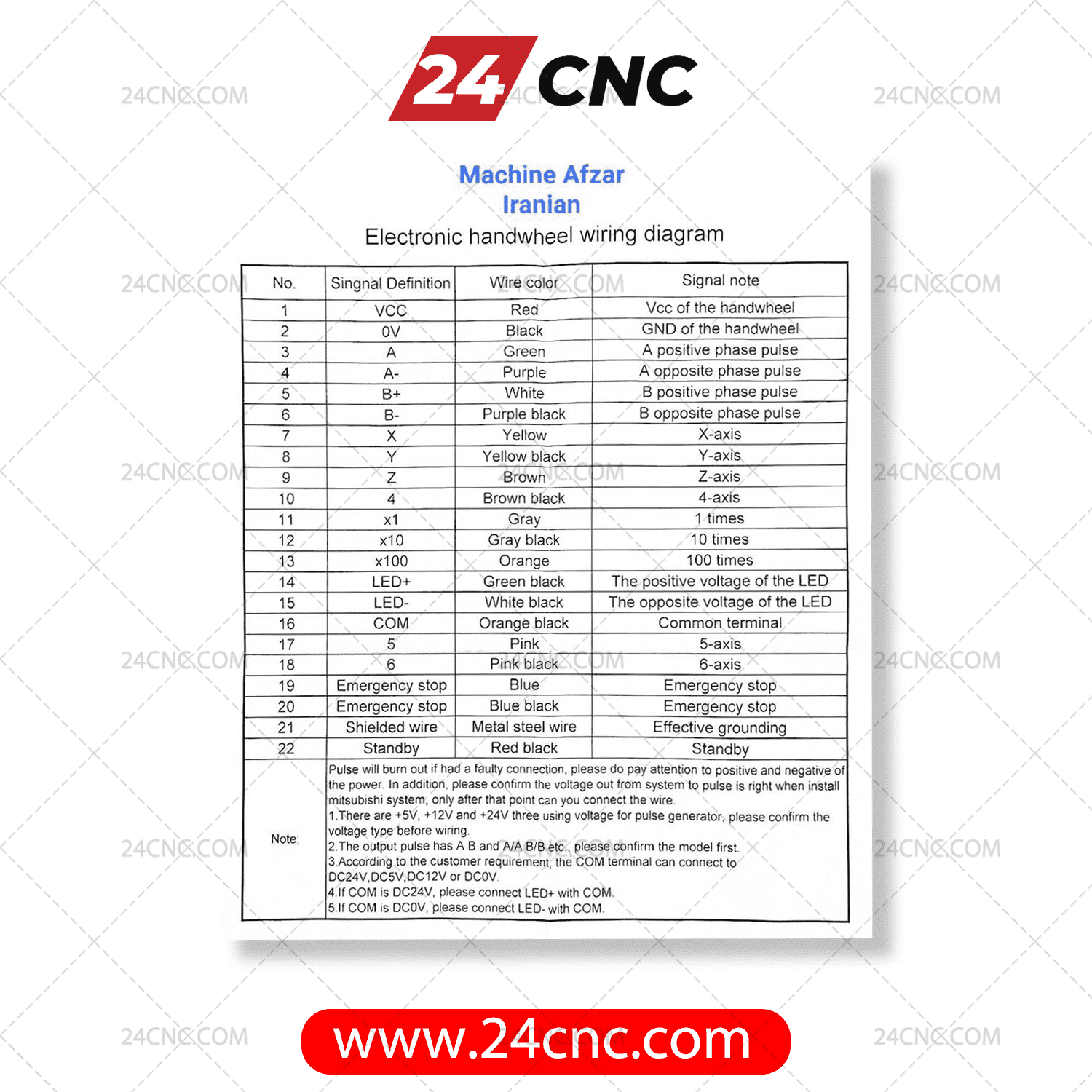

This Hand-Held pendant includes a 3-meter cable and up to 21 strands to transmit multiple data simultaneously.
The CNC handwheel is available with a 5-volt power supply and 100-pulse output for a variety of SIEMENS controller systems.
All spare parts for this handwheel, such as encoders, axis and feed selector switches, as well as its cable, are available and have after-sales service.
Types of CNC Handwheels
Handwheels are divided into three categories based on the type of device and their application:
Fixed handwheels (MPG)
Remote handwheels
Wireless handwheels
24CNC Experts’ Advice to You
Handwheels are among the most practical tools used in CNC machines, which are also considered the most important hand tools for the operator. These products are selected according to various factors such as the type of control system,
the type of input voltage, the number of pulses, and the distance between the control system and the workpiece, etc.
Iranian Machine Tools Co. Group specializes in supplying and selling all types of handwheels suitable for various types of CNC machines. You can order and receive your desired product at a reasonable price, with a guarantee of authenticity, and in the shortest possible time from all over the country. Also, if you have any questions about how handwheels work or purchasing this product, you can discuss them with the experts of the 24CNC Industrial Group.
